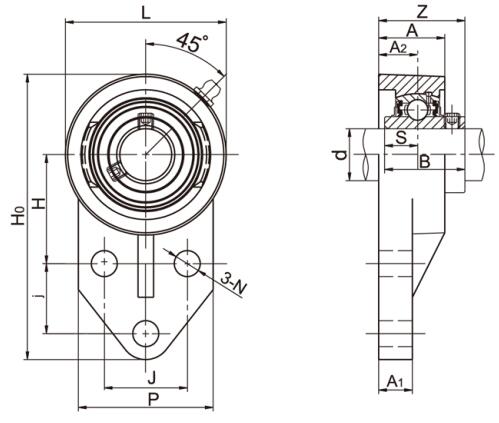

| 产品型号 | 轴径 | 尺寸(mm) | 螺栓尺寸 (mm) | 重量 | |||||||||||||
| d | Ho | H | J | j | A2 | A1 | A | N | L | P | B | S | Z | (kg) | |||
| (in) | (mm) | ||||||||||||||||
| SSUCFB204A | 20 | 108 | 42.9 | 38.1 | 22.2 | 15.9 | 9.5 | 25.4 | 10 | 63.5 | 60.3 | 31 | 12.7 | 34.2 | M8 | 0.58 | |
| SSUCFB204- 12A | 3/4 | 108 | 42.9 | 38.1 | 22.2 | 15.9 | 9.5 | 25.4 | 10 | 63.5 | 60.3 | 31 | 12.7 | 34.2 | M8 | 0.58 | |
| SSUCFB205A | 25 | 120.7 | 46 | 41.6 | 28.6 | 16.7 | 11.1 | 29.4 | 10 | 69.1 | 63.5 | 34.1 | 14.3 | 36.4 | M8 | 0.73 | |
| SSUCFB205-14A | 7/8 | 120.7 | 46 | 41.6 | 28.6 | 16.7 | 11.1 | 29.4 | 10 | 69.1 | 63.5 | 34.1 | 14.3 | 36.4 | M8 | 0.73 | |
| SSUCFB205-15A | 15/16 | 120.7 | 46 | 41.6 | 28.6 | 16.7 | 11.1 | 29.4 | 10 | 69.1 | 63.5 | 34.1 | 14.3 | 36.4 | M8 | 0.73 | |
| SSUCFB205-16A | 1 | 120.7 | 46 | 41.6 | 28.6 | 16.7 | 11.1 | 29.4 | 10 | 69.1 | 63.5 | 34.1 | 14.3 | 36.4 | M8 | 0.73 | |
| SSUCFB206A | 30 | 136.5 | 52.4 | 47.6 | 31.8 | 18.7 | 11.1 | 33.3 | 10 | 82.6 | 70 | 38.1 | 15.9 | 40.8 | M8 | 1.13 | |
| SSUCFB206-17A | 1-1/16 | 136.5 | 52.4 | 47.6 | 31.8 | 18.7 | 11.1 | 33.3 | 10 | 82.6 | 70 | 38.1 | 15.9 | 40.8 | M8 | 1.13 | |
| SSUCFB206-18A | 1-1/8 | 136.5 | 52.4 | 47.6 | 31.8 | 18.7 | 11.1 | 33.3 | 10 | 82.6 | 70 | 38.1 | 15.9 | 40.8 | M8 | 1.13 | |
| SSUCFB206-19A | 1-3/16 | 136.5 | 52.4 | 47.6 | 31.8 | 18.7 | 11.1 | 33.3 | 10 | 82.6 | 70 | 38.1 | 15.9 | 40.8 | M8 | 1.13 | |
| SSUCFB206-20A | 1-1/4 | 136.5 | 52.4 | 47.6 | 31.8 | 18.7 | 11.1 | 33.3 | 10 | 82.6 | 70 | 38.1 | 15.9 | 40.8 | M8 | 1.13 | |
| SSUCFB207A | 35 | 155.6 | 60.3 | 50.8 | 31.8 | 21 | 14.3 | 37.3 | 13 | 94.5 | 82.6 | 42.9 | 17.5 | 46.4 | M10 | 1.70 | |
| SSUCFB207-20A | 1-1/4 | 155.6 | 60.3 | 50.8 | 31.8 | 21 | 14.3 | 37.3 | 13 | 94.5 | 82.6 | 42.9 | 17.5 | 46.4 | M10 | 1.70 | |
| SSUCFB207-21A | 1-5/16 | 155.6 | 60.3 | 50.8 | 31.8 | 21 | 14.3 | 37.3 | 13 | 94.5 | 82.6 | 42.9 | 17.5 | 46.4 | M10 | 1.70 | |
| SSUCFB207-22A | 1-3/8 | 155.6 | 60.3 | 50.8 | 31.8 | 21 | 14.3 | 37.3 | 13 | 94.5 | 82.6 | 42.9 | 17.5 | 46.4 | M10 | 1.70 | |
| SSUCFB207-23A | 1-7/16 | 155.6 | 60.3 | 50.8 | 31.8 | 21 | 14.3 | 37.3 | 13 | 94.5 | 82.6 | 42.9 | 17.5 | 46.4 | M10 | 1.70 | |
说明：

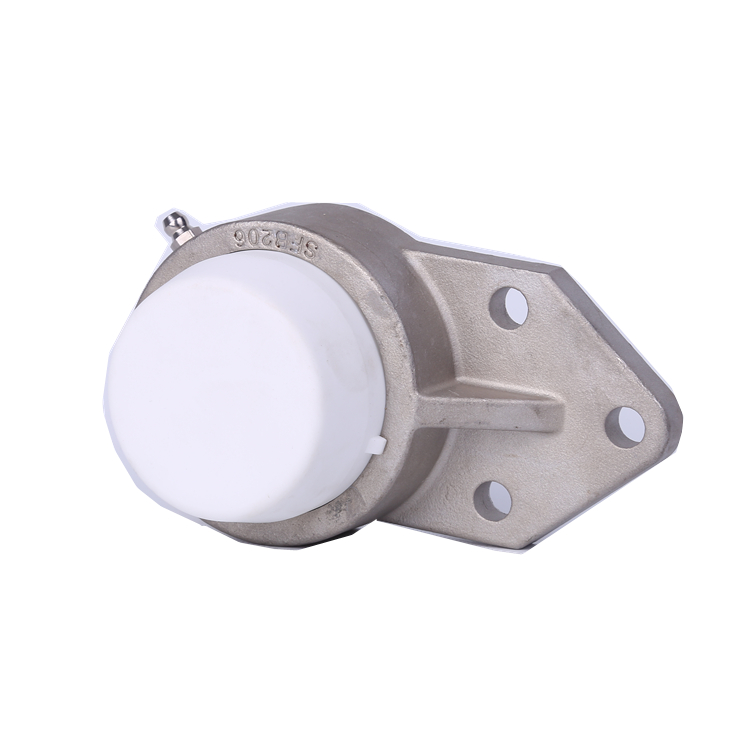

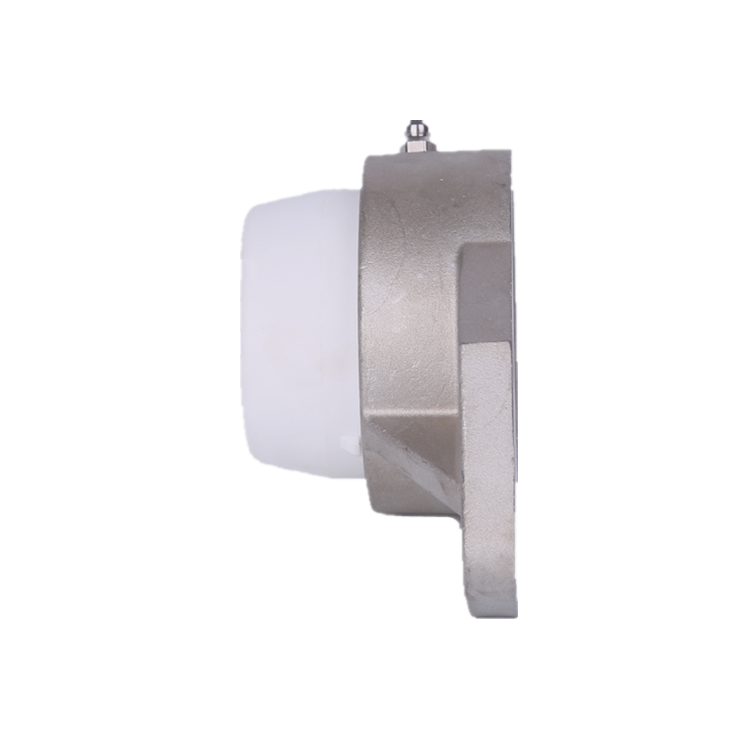

* 该系列的轴承座可在端面车盖槽用以安装塑料盖来防止灰尘的进入并确保运行工作安全。通盖OC，闭盖CC，例如：SSUCFB204-12A CC.
* 如需在不锈钢座表面做镜面抛光处理请，在后缀加HP，例如：SSUCFB204-12A HP.
* 下单时请注明使用工业油脂或者食品级油脂
