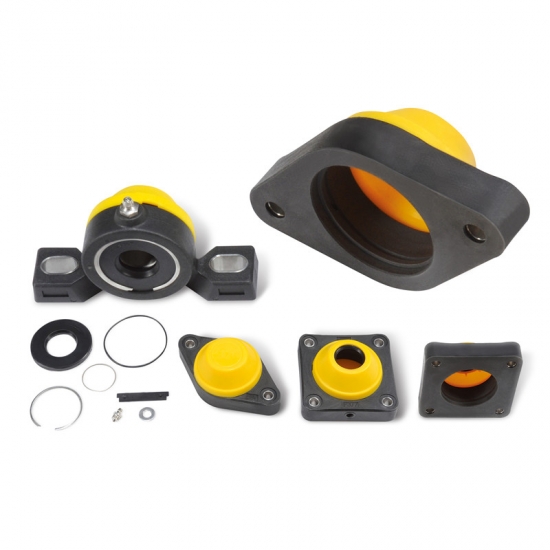

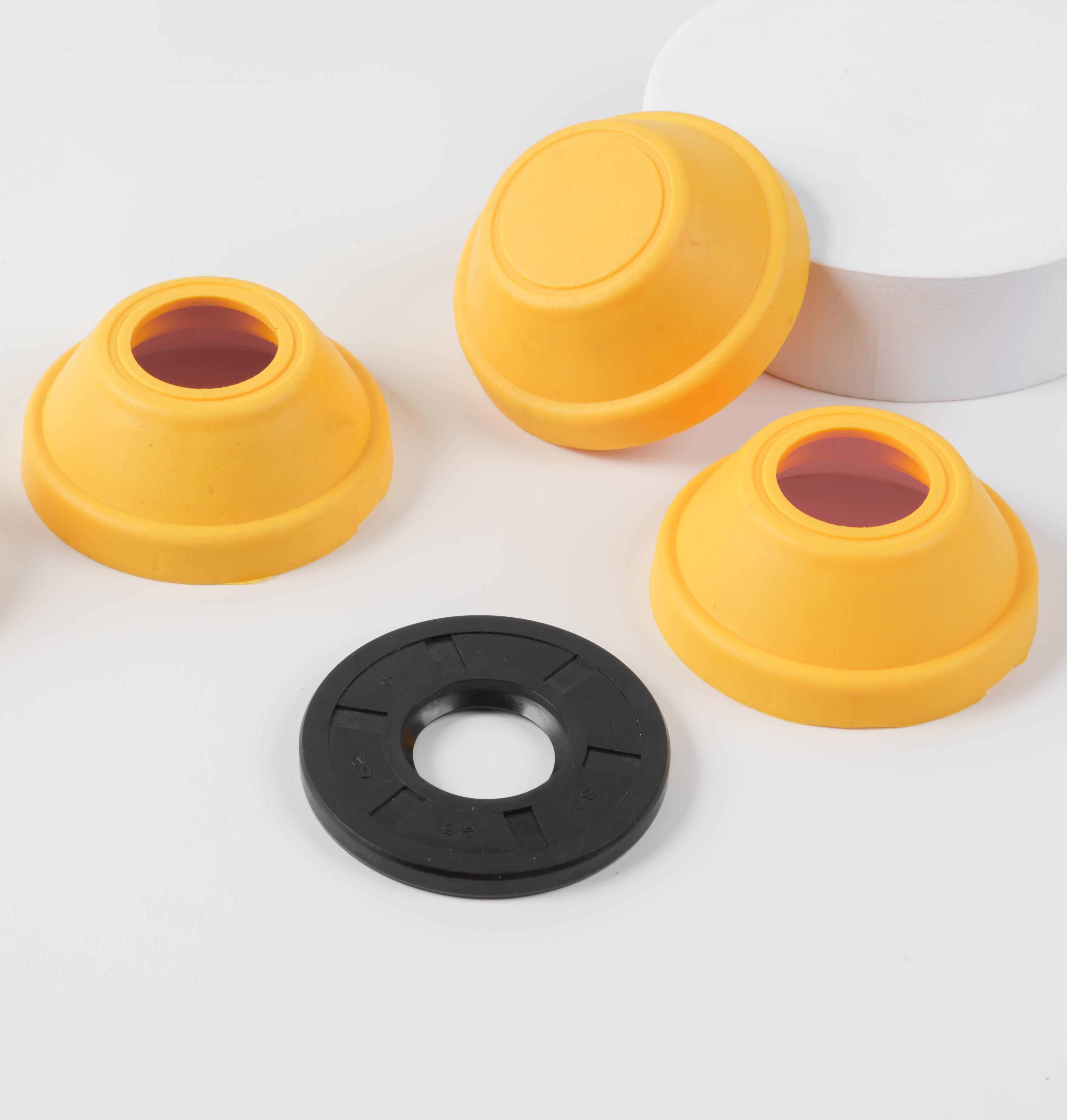

* 防水型塑料座配件: 端盖、后油封
* 材质:PP塑料
* 盖子颜色：黄色；后油封颜色：黑色

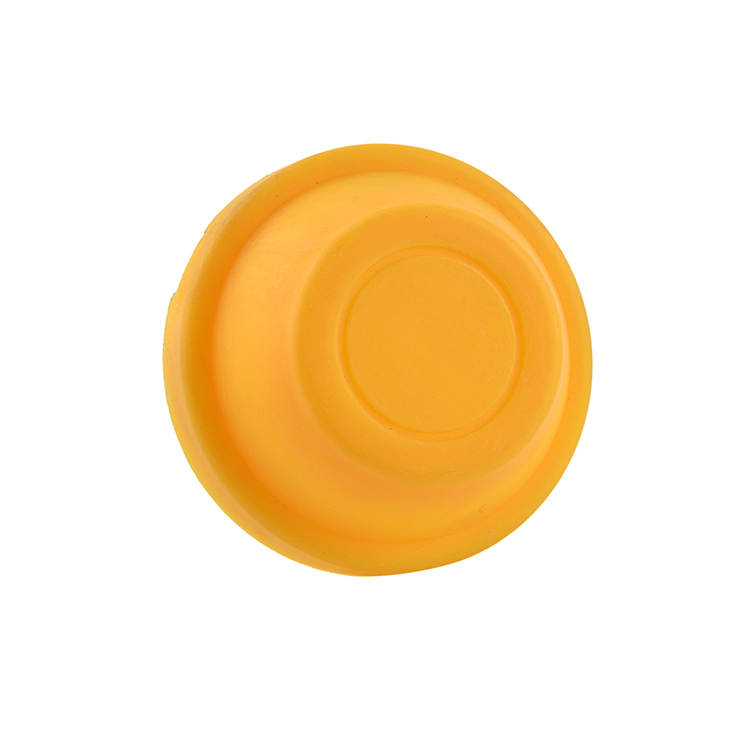

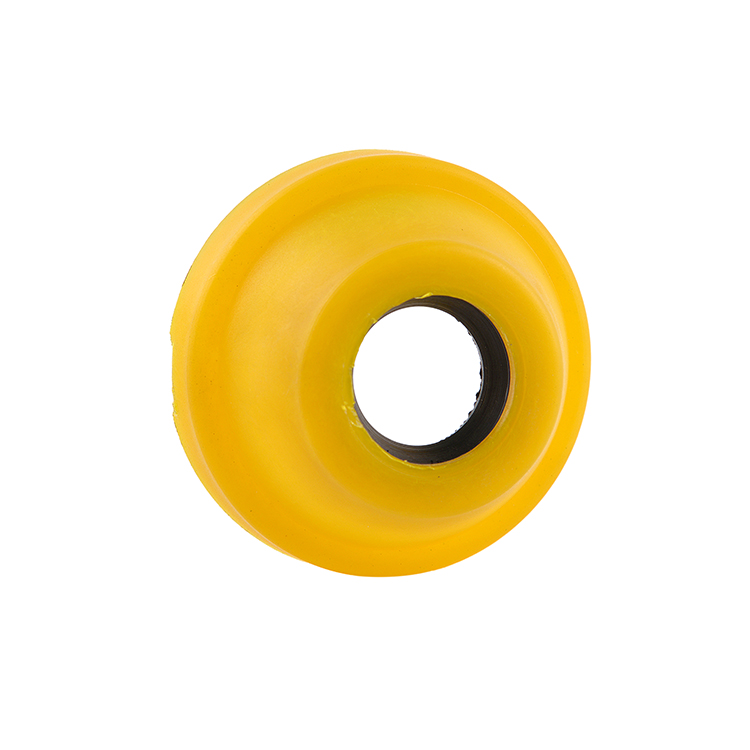

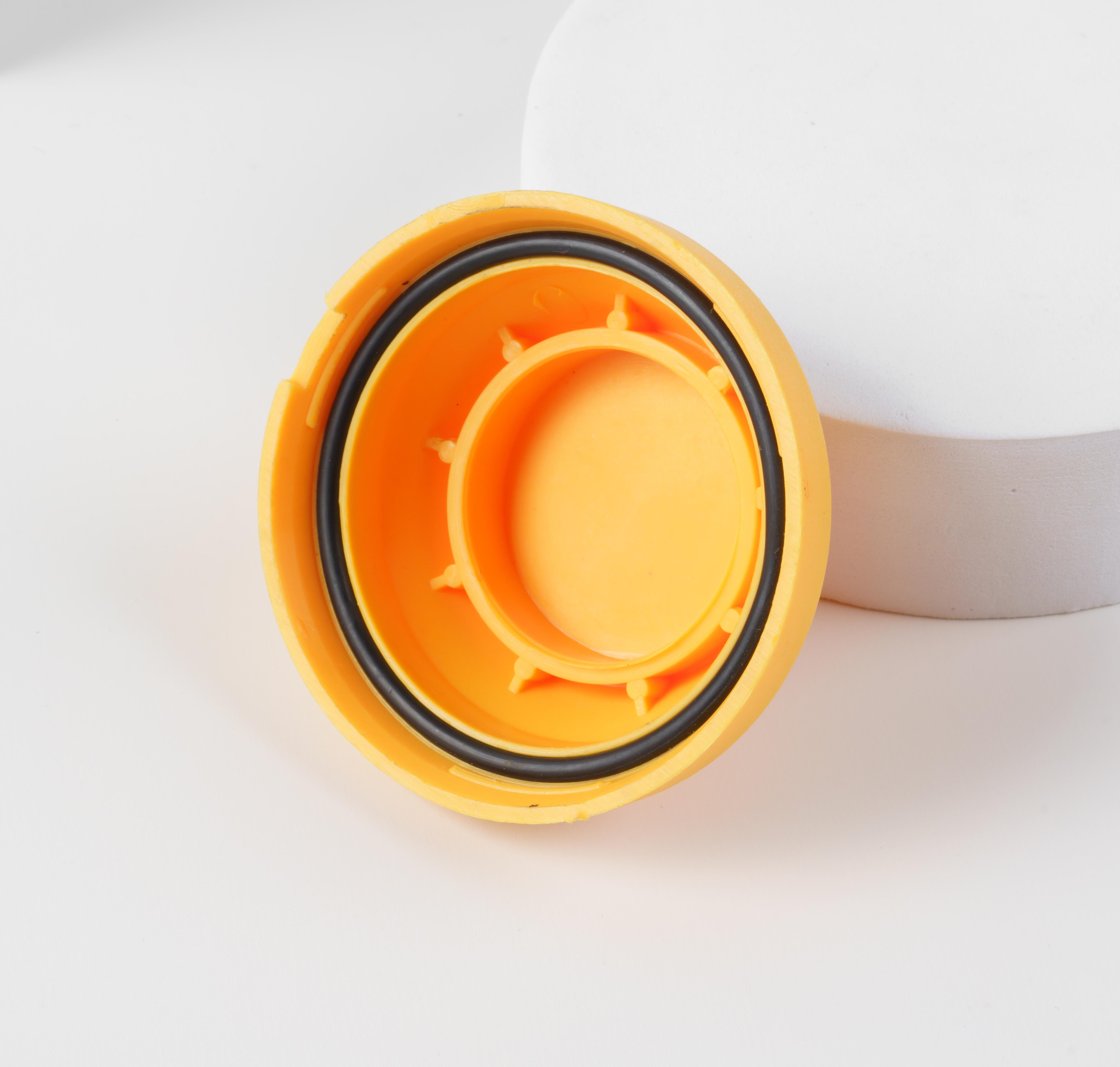

* 通盖：WP-OC; 闭盖：WP-CC; 后油封：WP-BS
* 优越的防水设计，经济性选择
* 材质:PP塑料
* 盖子颜色：黄色；后油封颜色：黑色
* 通盖：WP-OC; 闭盖：WP-CC; 后油封：WP-BS
* 优越的防水设计，经济性选择

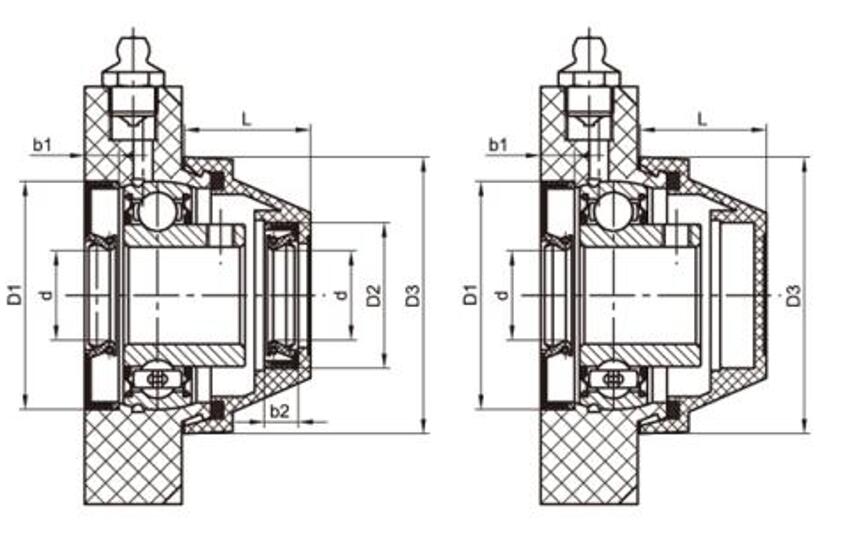

| 轴径 | 尺寸 mm | ||||||
| D | |||||||
| mm | inch | D1 | b1 | D2 | b2 | D3 | L |
| 20 | 3/4 | 47 | 7 | 30 | 7 | 56.7 | 26 |
| 25 | 13/16 14/16 15/16 1 | 52 | 7 | 35 | 7 | 67.7 | 28 |
| 30 | 1-1/16 1-1/8 1-3/16 1-1/4 | 62 | 7 | 40 | 7 | 78.7 | 29 |
| 35 | 1-1/4 1-5/16 1-3/8 1-7/16 | 72 | 7 | 45 | 7 | 88.7 | 33 |
| 40 | 1-1/2 1-9/16 | 80 | 7 | 50 | 7 | 96.7 | 35 |

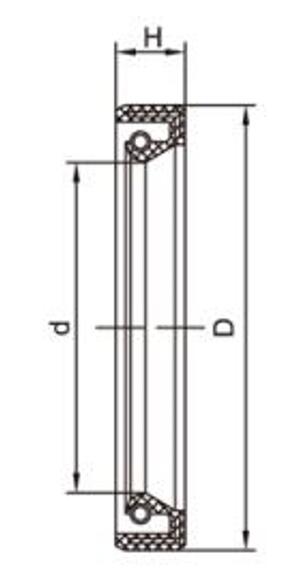

防水塑料座后油封
| 型号 | 尺寸 mm | ||
| D | d | H | |
| WP-P204 | 20 | 47 | 7 |
| WP-P205 | 25 | 52 | 7 |
| WP-P206 | 30 | 62 | 7 |
| WP-P207 | 35 | 72 | 7 |
| WP-P208 | 40 | 80 | 7 |
