SSUEF2 不锈钢带座轴承方形座耐腐蚀_不锈钢座带座轴承_带座轴承_产品

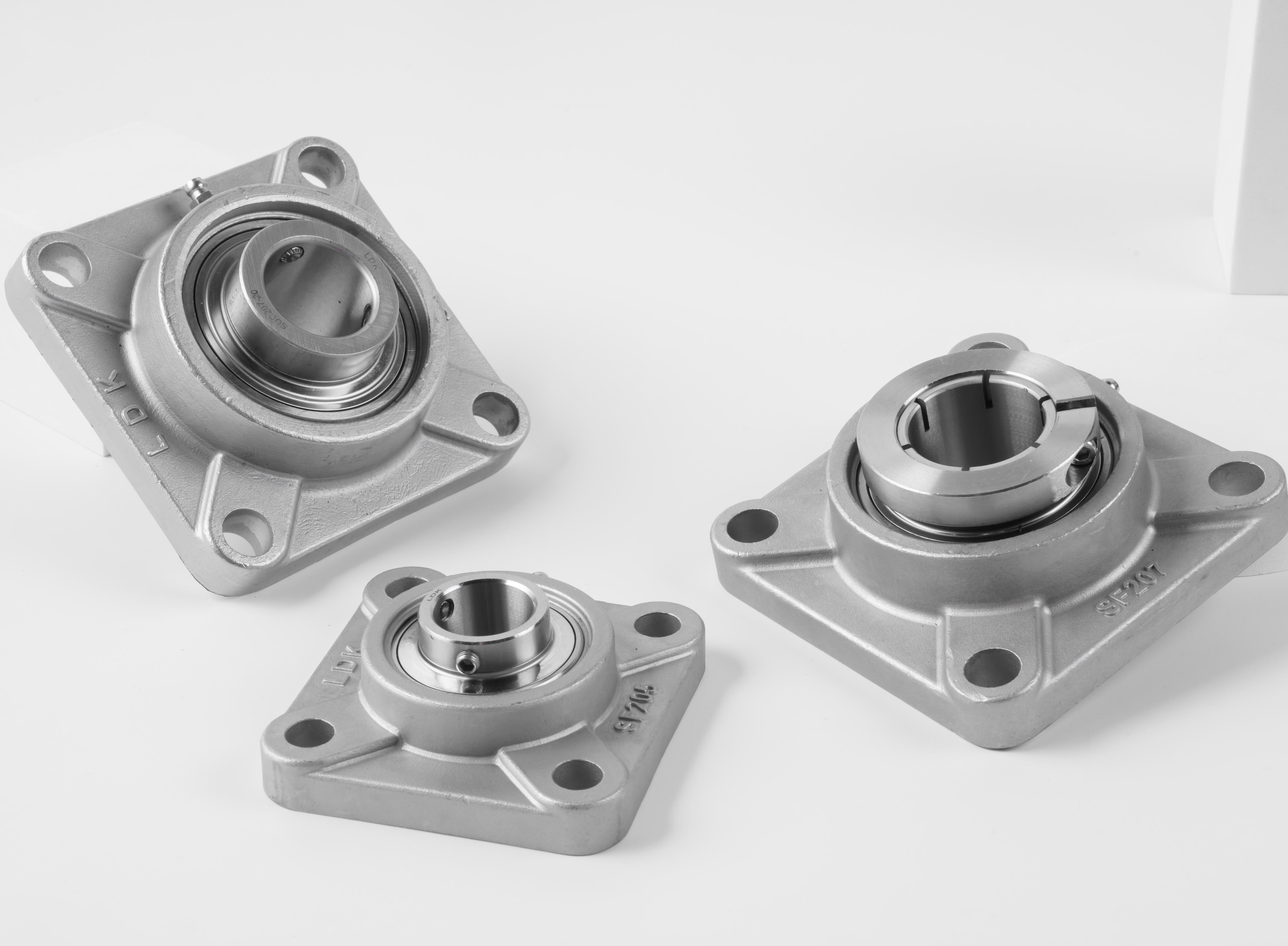

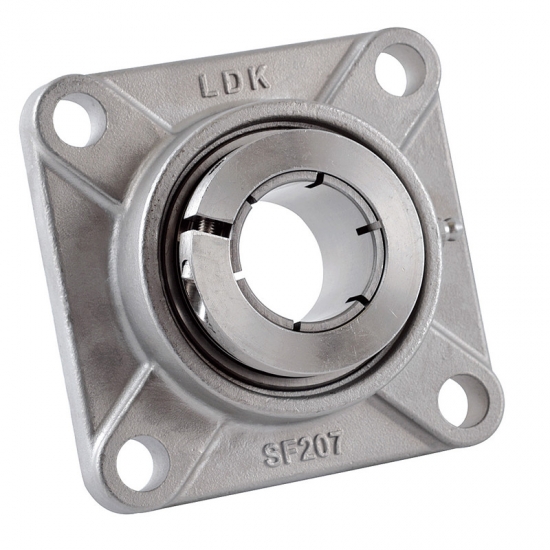

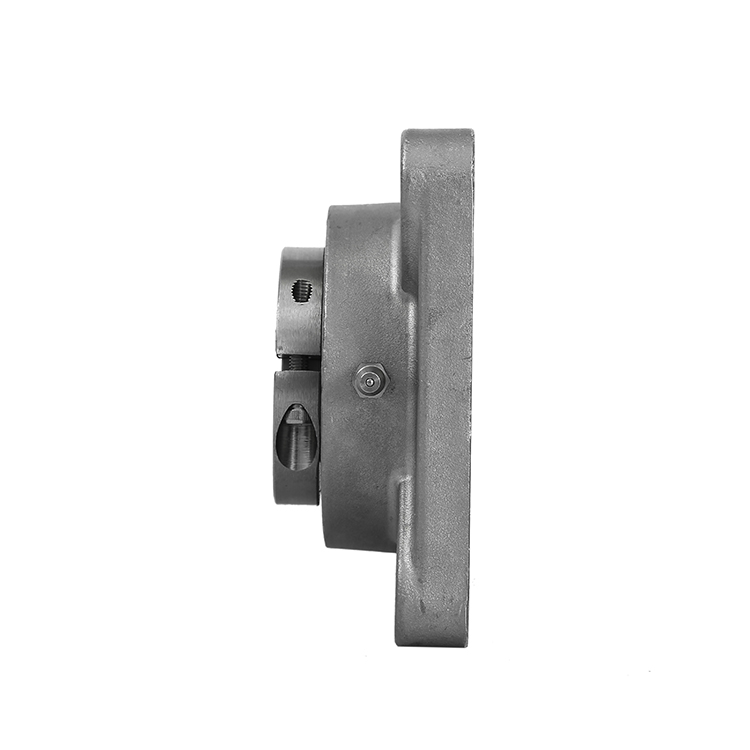

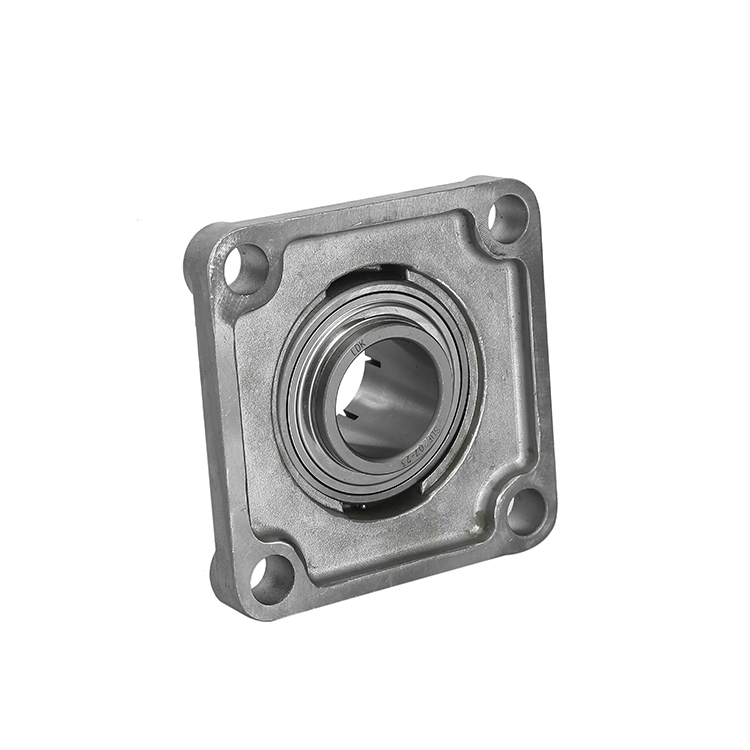

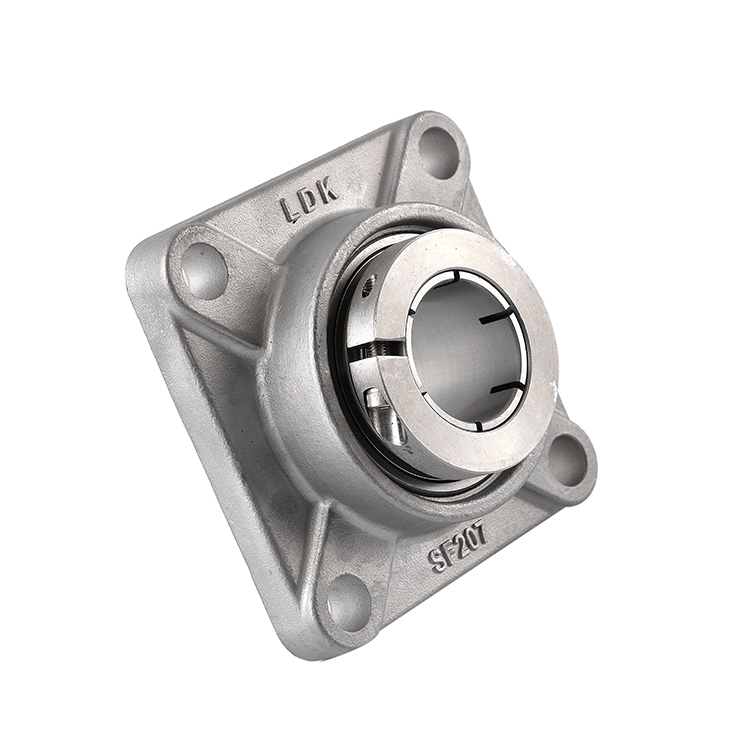

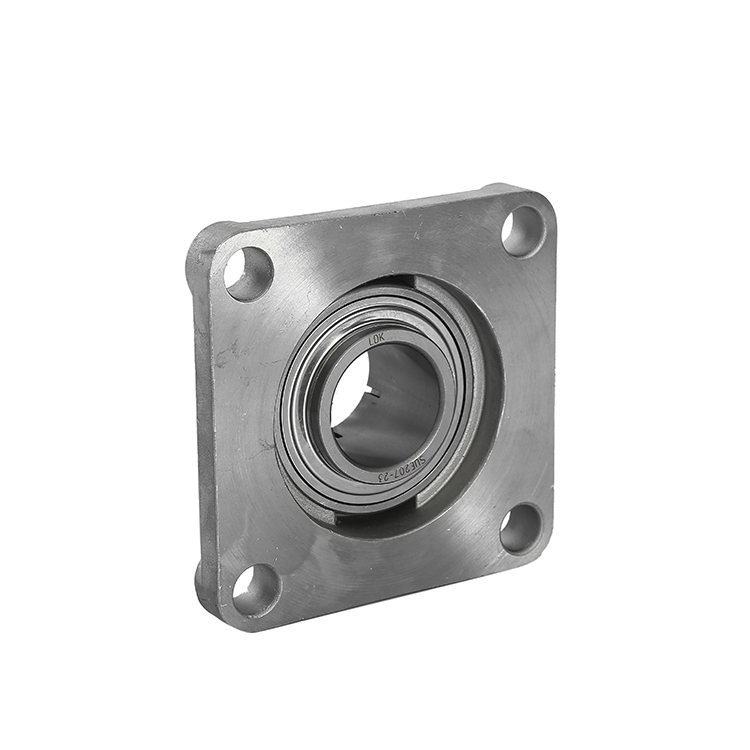

SSUEF2 不锈钢带座轴承方形座耐腐蚀

* 轴承座: 不锈钢方形座，4个螺栓孔
* 轴承座材质: SUS304不锈钢
* 油嘴: SUS304不锈钢
* 轴承座底部实心底
* 如果需要，可对轴承座表面进行手工抛光
* 轴承：SUS440不锈钢材质，同心套锁紧，配硅橡胶密封圈
* 轴承添加食品级油脂 (也可按需定制固体自润滑者油脂）
* 轴承座可在产品的一边塑料端盖 (OC=通盖/CC=闭盖)
* 产品工作的环境温度： -20℃~120℃

联系我们  PDF 下载

产品型号		轴径		尺寸(mm)									螺栓尺寸 (mm)	重量 (kg)
空心底座子	实心底座子	d		L	J	A₂	A1	A	N	Z	B1	S
空心底座子	实心底座子	(in)	(mm)	L	J	A₂	A1	A	N	Z	B1	S
SSUEF204EHB	SSUEF204ESB		20	86	64	15	12	25.5	12	35.3	33	12.7	M10	0.72
SSUEF204-12EHB	SSUEF204-12ESB	3/4		86	64	15	12	25.5	12	35.3	33	12.7	M10	0.72
SSUEF205EHB	SSUEF205ESB		25	95	70	16	14.3	27	12	37.1	35.4	14.3	M10	0.99
SSUEF205-14EHB	SSUEF205-14ESB	7/8		95	70	16	14.3	27	12	37.1	35.4	14.3	M10	0.99
SSUEF205-15EHB	SSUEF205-15ESB	15/16		95	70	16	14.3	27	12	37.1	35.4	14.3	M10	0.99
SSUEF205-16EHB	SSUEF205-16ESB	1		95	70	16	14.3	27	12	37.1	35.4	14.3	M10	0.99
SSUEF206EHB	SSUEF206ESB		30	108	83	18	14	31	12	41.9	39.8	15.9	M14	1.33
SSUEF206-17EHB	SSUEF206-17ESB	1-1/16		108	83	18	14	31	12	41.9	39.8	15.9	M14	1.33
SSUEF206-18EHB	SSUEF206-18ESB	1-1/8		108	83	18	14	31	12	41.9	39.8	15.9	M14	1.33
SSUEF206-19EHB	SSUEF206-19ESB	1-3/16		108	83	18	14	31	12	41.9	39.8	15.9	M14	1.33
SSUEF206-20EHB	SSUEF206-20ESB	1-1/4		108	83	18	14	31	12	41.9	39.8	15.9	M14	1.33
SSUEF207EHB	SSUEF207ESB		35	117	92	19	15.9	34	14	43.4	43.9	17.5	M14	1.81
SSUEF207-20EHB	SSUEF207-20ESB	1-1/4		117	92	19	15.9	34	14	43.4	43.9	17.5	M14	1.81
SSUEF207-21EHB	SSUEF207-21ESB	1-5/16		117	92	19	15.9	34	14	43.4	43.9	17.5	M14	1.81
SSUEF207-22EHB	SSUEF207-22ESB	1-3/8		117	92	19	15.9	34	14	43.4	43.9	17.5	M14	1.81
SSUEF207-23EHB	SSUEF207-23ESB	1-7/16		117	92	19	15.9	34	14	43.4	43.9	17.5	M14	1.81
SSUEF208EHB	SSUEF208ESB		40	130	102	21	15.9	36	16	52.2	50.2	19	M14	2.2
SSUEF208-24EHB	SSUEF208-24ESB	1-1/2		130	102	21	15.9	36	16	52.2	50.2	19	M14	2.2
SSUEF208-25EHB	SSUEF208-25ESB	1-9/16		130	102	21	15.9	36	16	52.2	50.2	19	M14	2.2
SSUEF209EHB	SSUEF209ESB		45	137	105	22	16.7	38	16	53.2	50.2	19	M14	2.72
SSUEF209-26EHB	SSUEF209-26ESB	1-5/8		137	105	22	16.7	38	16	53.2	50.2	19	M14	2.72
SSUEF209-27EHB	SSUEF209-27ESB	1-11/16		137	105	22	16.7	38	16	53.2	50.2	19	M14	2.72
SSUEF209-28EHB	SSUEF209-28ESB	1-3/4		137	105	22	16.7	38	16	53.2	50.2	19	M14	2.72
SSUEF210EHB	SSUEF210ESB		50	143	111	22	15.9	40	16	55.6	52.6	19	M16	2.96
SSUEF210-30EHB	SSUEF210-30ESB	1-7/8		143	111	22	15.9	40	16	55.6	52.6	19	M16	2.96
SSUEF210-31EHB	SSUEF210-31ESB	1-15/16		143	111	22	15.9	40	16	55.6	52.6	19	M16	2.96
SSUEF210-32EHB	SSUEF210-32ESB	2		143	111	22	15.9	40	16	55.6	52.6	19	M16	2.96
SSUEF211EHB	SSUEF211ESB		55	162	130	25	18	43	19	59.4	56.6	22.2	M16	4.21
SSUEF211-32EHB	SSUEF211-32ESB	2		162	130	25	18	43	19	59.4	56.6	22.2	M16	4.21
SSUEF211-34EHB	SSUEF211-34ESB	2-1/8		162	130	25	18	43	19	59.4	56.6	22.2	M16	4.21
SSUEF211-35EHB	SSUEF211-35ESB	2-3/16		162	130	25	18	43	19	59.4	56.6	22.2	M16	4.21
SSUEF212EHB	SSUEF212ESB		60	175	143	29	18	48	19	70.2	66.6	25.4	M16	5.23
SSUEF212-36EHB	SSUEF212-36ESB	2-1/4		175	143	29	18	48	19	70.2	66.6	25.4	M16	5.23
SSUEF212-38EHB	SSUEF212-38ESB	2-3/8		175	143	29	18	48	19	70.2	66.6	25.4	M16	5.23
SSUEF212-39EHB	SSUEF212-39ESB	2-7/16		175	143	29	18	48	19	70.2	66.6	25.4	M16	5.23

SSUEF2 不锈钢带座轴承方形座耐腐蚀

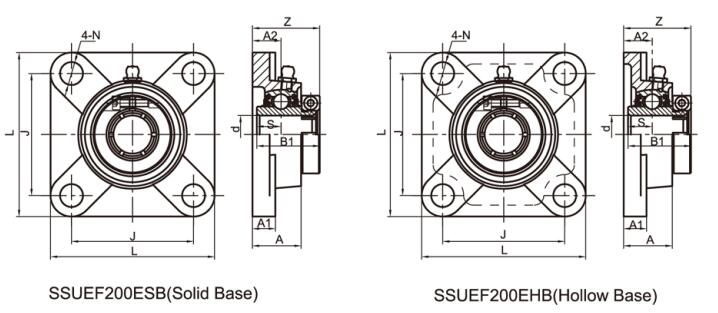

SSUEF2 不锈钢带座轴承方形座耐腐蚀结构图

SSUEF2 不锈钢带座轴承方形座耐腐蚀参数
