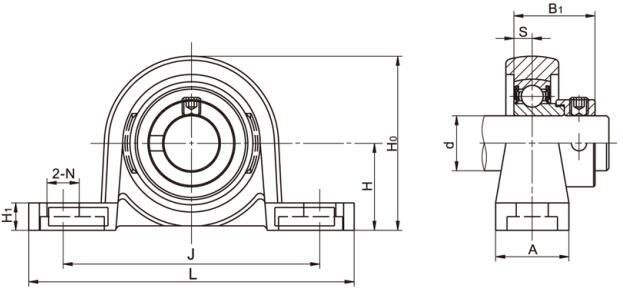

| 产品型号 | 轴径 | 尺寸(mm) | 螺栓尺寸 mm | 轴承型号 | 座子型号 | 重量 (kg) | ||||||||
| d(mm) | H | L | J | A | H1 | Ho | N | S | B1 | |||||
| UP000 | 10 | 18 | 67 | 53 | 16 | 6 | 35 | 7 | 4 | 17.7 | M6 | U000 | P000 | 0.08 |
| UP001 | 12 | 19 | 71 | 56 | 16 | 6 | 38 | 7 | 4 | 17.7 | M6 | U001 | P001 | 0.10 |
| UP002 | 15 | 22 | 80 | 63 | 16 | 7 | 43 | 7 | 4.5 | 18.7 | M6 | U002 | P002 | 0.14 |
| UP003 | 17 | 24 | 85 | 67 | 18 | 7 | 47 | 7 | 5 | 20.7 | M6 | U003 | P003 | 0.17 |
| UP004 | 20 | 28 | 100 | 80 | 20 | 9 | 55 | 10 | 6 | 24.2 | M8 | U004 | P004 | 0.26 |
| UP005 | 25 | 32 | 112 | 90 | 20 | 10 | 62 | 10 | 6 | 25 | M8 | U005 | P005 | 0.33 |
| UP006 | 30 | 36 | 132 | 106 | 26 | 11 | 70 | 13 | 6.5 | 26 | M10 | U006 | P006 | 0.50 |

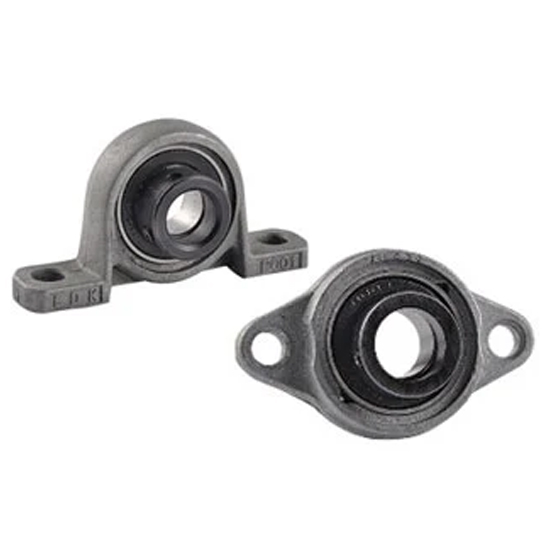

说明：微型外球面轴球承； 轴承座材质：锌铝合金

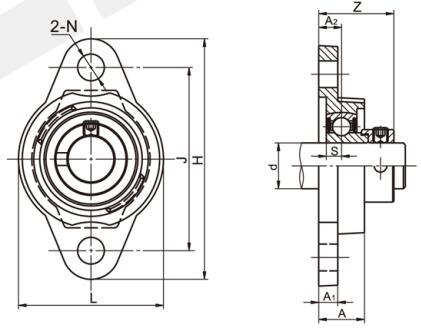

| 产品型号 | 轴径 d(mm) | 尺寸(mm) | 螺栓尺寸 mm | 轴承型号 | 座子型号 | 重量 (kg) | ||||||||
| H | J | A2 | Al | A | N | L | s | Z | ||||||
| UFL000 | 10 | 60 | 45 | 6 | 6 | 12 | 7 | 36 | 4 | 19.7 | M6 | U000 | FL000 | 0.07 |
| UFL001 | 12 | 63 | 48 | 6 | 6 | 12 | 7 | 38 | 4 | 19.7 | M6 | U001 | FL001 | 0.08 |
| UFL002 | 15 | 67 | 53 | 6.5 | 6.5 | 13 | 7 | 42 | 4.5 | 20.7 | M6 | U002 | FL002 | 0.11 |
| UFL003 | 17 | 71 | 56 | 7 | 7 | 14 | 7 | 46 | 5 | 22.7 | M6 | U003 | FL003 | 0.14 |
| UFL004 | 20 | 90 | 71 | 8 | 8 | 16 | 10 | 55 | 6 | 26.2 | M8 | U004 | FL004 | 0.23 |
| UFL005 | 25 | 95 | 75 | 8 | 8 | 16 | 10 | 60 | 6 | 27 | M8 | U005 | FL005 | 0.27 |
| UFL006 | 30 | 112 | 85 | 9 | 9 | 18 | 13 | 70 | 6.5 | 28.5 | M10 | U006 | FL006 | 0.39 |

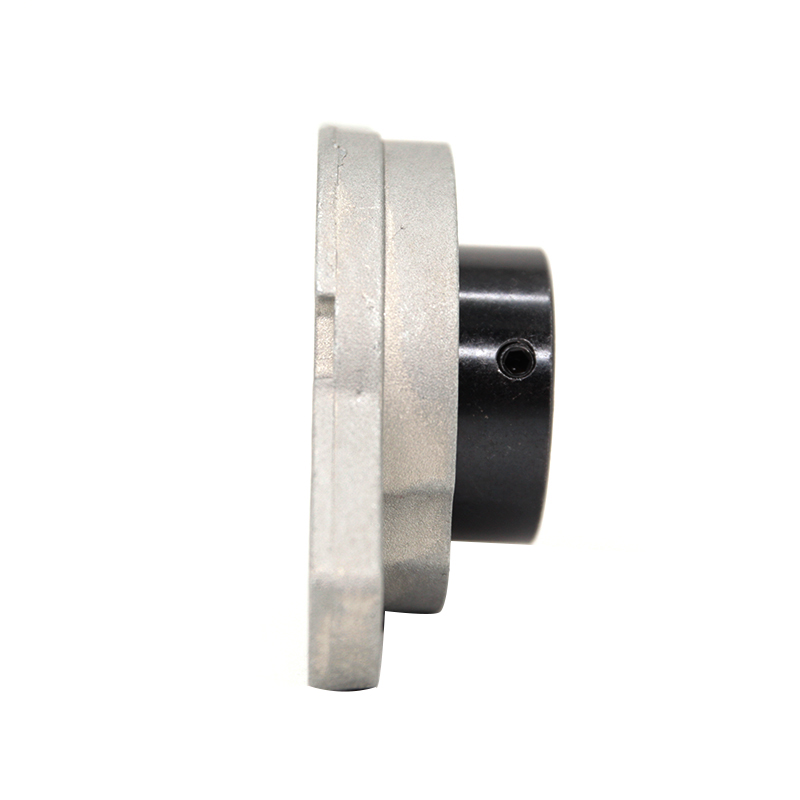

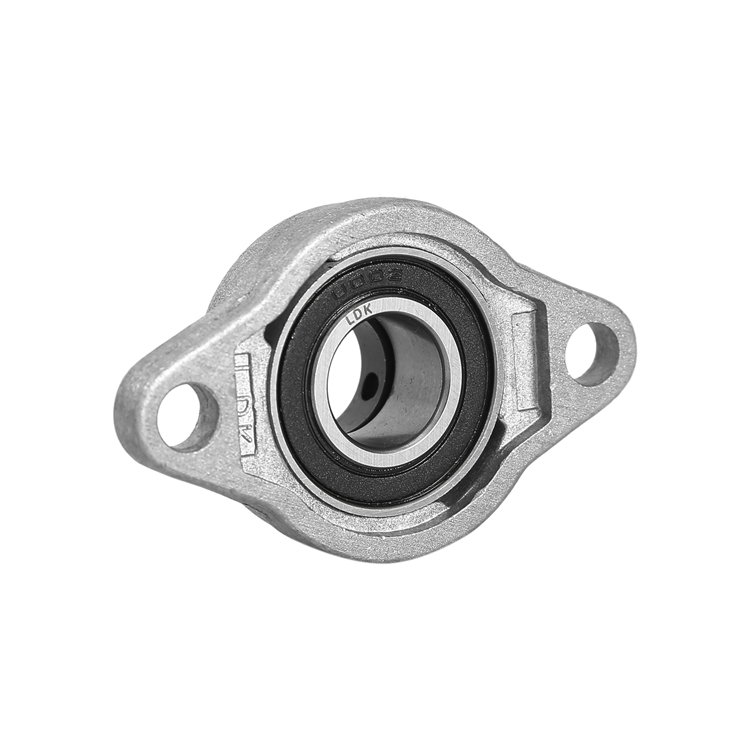

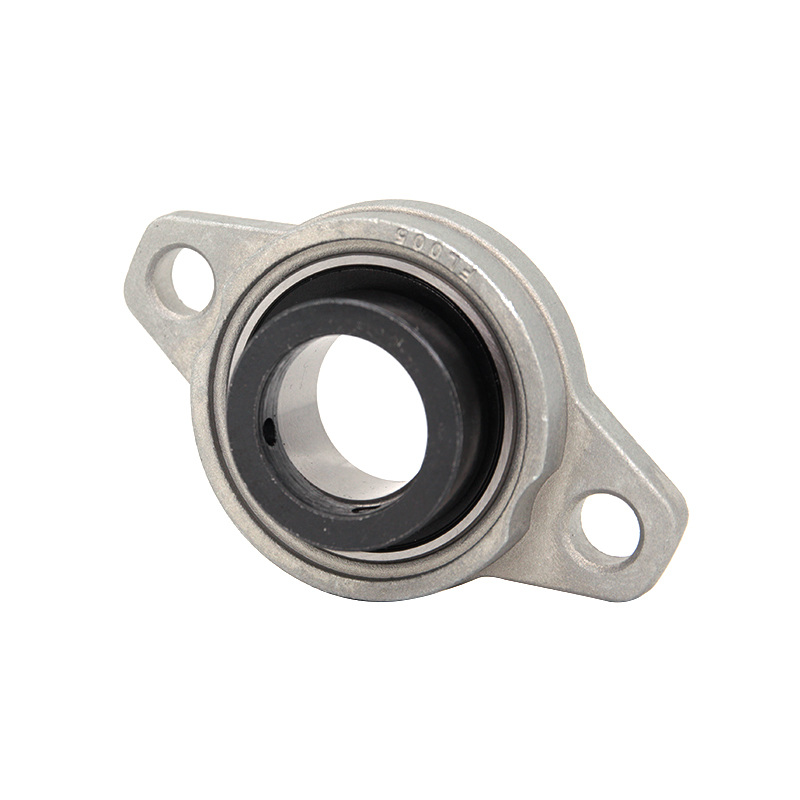

说明：微型外球面轴球承； 轴承座材质：锌铝合金
