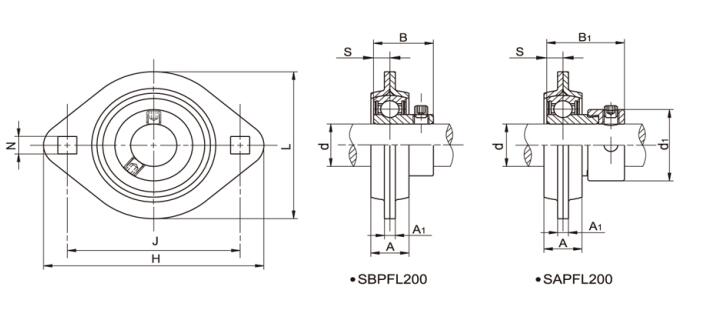

| 产品型号 | 轴径 d | 尺寸(mm) | 螺栓尺寸 | 重量 (kg) | |||||||||
| (in) | (mm) | H | J | L | A | A1 | N | B | S | (mm) | (in) | ||
| SBPFL201 | 12 | 81 | 63.5 | 59 | 14 | 4 | 7 | 22 | 6 | M6 | 1/4 | 0.23 | |
| SBPFL201-8 | 1/2 | 81 | 63.5 | 59 | 14 | 4 | 7 | 22 | 6 | M6 | 1/4 | 0.23 | |
| SBPFL202 | 15 | 81 | 63.5 | 59 | 14 | 4 | 7 | 22 | 6 | M6 | 1/4 | 0.23 | |
| SBPFL202-10 | 5/8 | 81 | 63.5 | 59 | 14 | 4 | 7 | 22 | 6 | M6 | 1/4 | 0.23 | |
| SBPFL203 | 17 | 81 | 63.5 | 59 | 14 | 4 | 7 | 22 | 6 | M6 | 1/4 | 0.23 | |
| SBPFL203-11 | 11/16 | 81 | 63.5 | 59 | 14 | 4 | 7 | 22 | 6 | M6 | 1/4 | 0.23 | |
| SBPFL204 | 20 | 90 | 71.5 | 67 | 16 | 4 | 9 | 25 | 7 | MS | 5/16 | 0.26 | |
| SBPFL204-12 | 3/4 | 90 | 71.5 | 67 | 16 | 4 | 9 | 25 | 7 | MS | 5/16 | 0.26 | |
| SBPFL205 | 25 | 95 | 76 | 71 | 18 | 4 | 9 | 27 | 7.5 | M8 | 5/16 | 0.35 | |
| SBPFL205-14 | 7/8 | 95 | 76 | 71 | 18 | 4 | 9 | 27 | 7.5 | M8 | 5/16 | 0.35 | |
| SBPFL205-15 | 15/16 | 95 | 76 | 71 | 18 | 4 | 9 | 27 | 7.5 | M8 | 5/16 | 0.35 | |
| SBPFL205-16 | 1 | 95 | 76 | 71 | 18 | 4 | 9 | 27 | 7.5 | M8 | 5/16 | 0.35 | |
| SBPFL206 | 30 | 113 | 90.5 | 84 | 18 | 5 | 11 | 30 | 8 | M10 | 3/8 | 0.46 | |
| SBPFL206-18 | 1-1/8 | 113 | 90.5 | 84 | 18 | 5 | 11 | 30 | 8 | M10 | 3/8 | 0.46 | |
| SBPFL206-19 | 1-3/16 | 113 | 90.5 | 84 | 18 | 5 | 11 | 30 | 8 | M10 | 3/8 | 0.46 | |
| SBPFL206-20 | 1-1/4 | 113 | 90.5 | 84 | 18 | 5 | 11 | 30 | 8 | M10 | 3/8 | 0.46 | |
| SBPFL207 | 35 | 122 | 100 | 94 | 20 | 5 | 11 | 32 | 8.5 | M10 | 3/8 | 0.73 | |
| SBPFL207-20 | 1-1/4 | 122 | 100 | 94 | 20 | 5 | 11 | 32 | 8.5 | M10 | 3/8 | 0.73 | |
| SBPFL207-21 | 1-5/16 | 122 | 100 | 94 | 20 | 5 | 11 | 32 | 8.5 | M10 | 3/8 | 0.73 | |
| SBPFL207-22 | 1-3/8 | 122 | 100 | 94 | 20 | 5 | 11 | 32 | 8.5 | M10 | 3/8 | 0.73 | |
| SBPFL207-23 | 1-7/16 | 122 | 100 | 94 | 20 | 5 | 11 | 32 | 8.5 | M10 | 3/8 | 0.73 | |
| SBPFL208 | 40 | 147 | 119 | 106 | 23 | 7 | 13.5 | 34 | 9 | M12 | 1/2 | 0.94 | |
| SBPFL208-24 | 1-1/2 | 147 | 119 | 106 | 23 | 7 | 13.5 | 34 | 9 | M12 | 1/2 | 0.94 | |
| SBPFL208-25 | 1-9/16 | 147 | 119 | 106 | 23 | 7 | 13.5 | 34 | 9 | M12 | 1/2 | 0.94 | |
说明：
可以选配其他锁紧方式的轴承；
接受非标冲压座的定制；
可提供不锈钢材质的冲压座。
| 产品型号 | 轴径 d | 尺寸(mm) | 螺栓尺寸 | 重量 | ||||||||||
| (in) | (mm) | H | J | L | A | A1 | d1 | N | B1 | S | (mm) | (in) | (kg) | |
| SAPFL201 | 12 | 81 | 63.5 | 59 | 14 | 4 | 28.6 | 7 | 28.6 | 6 | M6 | 1/4 | 0.34 | |
| SAPFL201-8 | 1/2 | 81 | 63.5 | 59 | 14 | 4 | 28.6 | 7 | 28.6 | 6 | M6 | 1/4 | 0.34 | |
| SAPFL202 | 15 | 81 | 63.5 | 59 | 14 | 4 | 28.6 | 7 | 28.6 | 6 | M6 | 1/4 | 0.34 | |
| SAPFL202-10 | 5/8 | 81 | 63.5 | 59 | 14 | 4 | 28.6 | 7 | 28.6 | 6 | M6 | 1/4 | 0.34 | |
| SAPFL203 | 17 | 81 | 63.5 | 59 | 14 | 4 | 28.6 | 7 | 28.6 | 6 | M6 | 1/4 | 0.34 | |
| SAPFL203-11 | 11/16 | 81 | 63.5 | 59 | 14 | 4 | 28.6 | 7 | 28.6 | 6 | M6 | 1/4 | 0.34 | |
| SAPFL204 | 20 | 90 | 71.5 | 67 | 16 | 4 | 33.3 | 9 | 31 | 7 | M8 | 5/16 | 0.35 | |
| SAPFL204-12 | 3/4 | 90 | 71.5 | 67 | 16 | 4 | 33.3 | 9 | 31 | 7 | M8 | 5/16 | 0.35 | |
| SAPFL205 | 25 | 95 | 76 | 71 | 18 | 4 | 38.1 | 9 | 31.5 | 7.5 | M8 | 5/16 | 0.42 | |
| SAPFL205-14 | 7/8 | 95 | 76 | 71 | 18 | 4 | 38.1 | 9 | 31.5 | 7.5 | M8 | 5/16 | 0.42 | |
| SAPFL205-15 | 15/16 | 95 | 76 | 71 | 18 | 4 | 38.1 | 9 | 31.5 | 7.5 | M8 | 5/16 | 0.42 | |
| SAPFL205-16 | 1 | 95 | 76 | 71 | 18 | 4 | 38.1 | 9 | 31.5 | 7.5 | M8 | 5/16 | 0.42 | |
| SAPFL206 | 30 | 113 | 90.5 | 84 | 18 | 5 | 44.5 | 11 | 35.7 | 8 | M10 | 3/8 | 0.59 | |
| SAPFL206-18 | 1-1/8 | 113 | 90.5 | 84 | 18 | 5 | 44.5 | 11 | 35.7 | 8 | M10 | 3/8 | 0.59 | |
| SAPFL206-19 | 1-3/16 | 113 | 90.5 | 84 | 18 | 5 | 44.5 | 11 | 35.7 | 8 | M10 | 3/8 | 0.59 | |
| SAPFL206-20 | 1-1/4 | 113 | 90.5 | 84 | 18 | 5 | 44.5 | 11 | 35.7 | 8 | M10 | 3/8 | 0.59 | |
| SAPFL207 | 35 | 122 | 100 | 94 | 20 | 5 | 55.6 | 11 | 38.9 | 8.5 | M10 | 3/8 | 0.9 | |
| SAPFL207-20 | 1-1/4 | 122 | 100 | 94 | 20 | 5 | 55.6 | 11 | 38.9 | 8.5 | M10 | 3/8 | 0.9 | |
| SAPFL207-21 | 1-5/16 | 122 | 100 | 94 | 20 | 5 | 55.6 | 11 | 38.9 | 8.5 | M10 | 3/8 | 0.9 | |
| SAPFL207-22 | 1-3/8 | 122 | 100 | 94 | 20 | 5 | 55.6 | 11 | 38.9 | 8.5 | M10 | 3/8 | 0.9 | |
| SAPFL207-23 | 1-7/16 | 122 | 100 | 94 | 20 | 5 | 55.6 | 11 | 38.9 | 8.5 | M10 | 3/8 | 0.9 | |
| SAPFL208 | 40 | 147 | 119 | 106 | 23 | 7 | 60.3 | 13.5 | 43.7 | 9 | M12 | 1/2 | 1.11 | |
| SAPFL208-24 | 1-1/2 | 147 | 119 | 106 | 23 | 7 | 60.3 | 13.5 | 43.7 | 9 | M12 | 1/2 | 1.11 | |
| SAPFL208-25 | 1-9/16 | 147 | 119 | 106 | 23 | 7 | 60.3 | 13.5 | 43.7 | 9 | M12 | 1/2 | 1.11 | |
说明：
可以选配其他锁紧方式的轴承；
接受非标冲压座的定制；
可提供不锈钢材质的冲压座。
