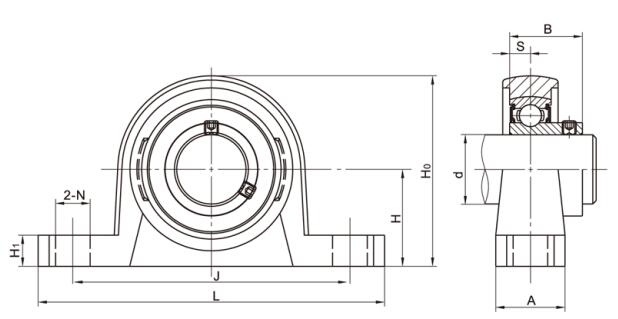

| 产品型号 | 轴径 d(mm) | 尺寸(mm) | 螺栓尺寸 (mm) | 轴承型号 | 座子型号 | 重量 (kg) | ||||||||
| H | L | J | A | H1 | Ho | N | S | B | ||||||
| SSKP000 | 10 | 18 | 67 | 53 | 16 | 6 | 35 | 7 | 4 | 14 | M6 | SK000 | SP000 | 0.03 |
| SSKP001 | 12 | 19 | 71 | 56 | 16 | 6 | 38 | 7 | 4 | 14.5 | M6 | SK001 | SP001 | 0.04 |
| SSKP002 | 15 | 22 | 80 | 63 | 16 | 7 | 43 | 7 | 4.5 | 16.5 | M6 | SK002 | SP002 | 0.05 |
| SSKP003 | 17 | 24 | 85 | 67 | 18 | 7 | 47 | 7 | 5 | 17.5 | M6 | SK003 | SP003 | 0.07 |
| SSKP004 | 20 | 28 | 100 | 80 | 20 | 9 | 55 | 10 | 6 | 21 | M8 | SK004 | SP004 | 0.11 |
| SSKP005 | 25 | 32 | 112 | 90 | 20 | 10 | 62 | 10 | 6 | 22.5 | M8 | SK005 | SP005 | 0.15 |
| SSKP006 | 30 | 36 | 132 | 106 | 26 | 11 | 70 | 13 | 6.5 | 24.5 | M10 | SK006 | SP006 | 0.21 |
说明：不锈钢轴承材质：SUS440; 不锈钢轴承座材质：SUS304

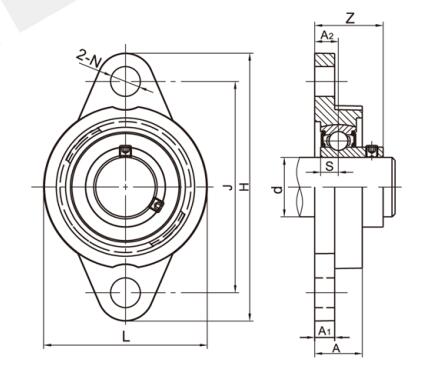

| 产品型号 | 轴径 d(mm) | 尺寸(mm) | 螺栓尺寸 (mm) | 轴承型号 | 座子型号 | 重量 (kg) | ||||||||
| H | J | A2 | A1 | A | N | L | s | z | ||||||
| SSKFL000 | 10 | 60 | 45 | 5.5 | 6 | 12 | 7 | 36 | 4 | 16 | M6 | SK000 | SFL000 | 0.07 |
| SSKFL001 | 12 | 63 | 48 | 5.5 | 6 | 12 | 7 | 38 | 4 | 16.5 | M6 | SK001 | SFL001 | 0.08 |
| SSKFL002 | 15 | 67 | 53 | 6.5 | 6.5 | 13 | 7 | 42 | 4.5 | 18.5 | M6 | SK002 | SFL002 | 0.11 |
| SSKFL003 | 17 | 71 | 56 | 7 | 7 | 14 | 7 | 46 | 5 | 19.5 | M6 | SK003 | SFL003 | 0.14 |
| SSKFL004 | 20 | 90 | 71 | 8 | 8 | 16 | 10 | 55 | 6 | 23 | M8 | SK004 | SFL004 | 0.23 |
SSKFL005 | 25 | 95 | 75 | 8 | 8 | 16 | 10 | 60 | 6 | 24.5 | M8 | SK005 | SFL005 | 0.27 |
| SSKFL006 | 30 | 112 | 85 | 9 | 9 | 18 | 13 | 70 | 6.5 | 27 | M10 | SK006 | SFL006 | 0.39 |
说明：不锈钢轴承材质：SUS440; 不锈钢轴承座材质：SUS304
