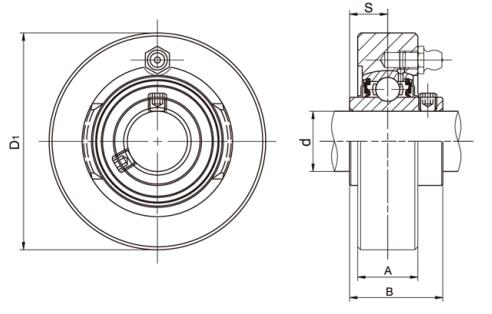

| 产品型号 | 轴径 | 尺寸(mm) | 重量 (kg) | ||||
| d | D1 | A | B | s | |||
| (in) | (mm) | ||||||
| UCC201 | 12 | 67 | 20 | 27.4 | 11.5 | 0.56 | |
| UCC201-8 | 1/2 | 67 | 20 | 27.4 | 11.5 | 0.56 | |
| UCC202 | 15 | 67 | 20 | 27.4 | 11.5 | 0.52 | |
| UCC202-9 | 9/16 | 67 | 20 | 27.4 | 11.5 | 0.52 | |
| UCC202-10 | 5/8 | 67 | 20 | 27.4 | 11.5 | 0.52 | |
| UCC203 | 17 | 67 | 20 | 27.4 | 11.5 | 0.51 | |
| UCC203-11 | 11/16 | 67 | 20 | 27.4 | 11.5 | 0.51 | |
| UCC204 | 20 | 72 | 20 | 31.0 | 12.7 | 0.49 | |
| UCC204-12 | 3/4 | 72 | 20 | 31.0 | 12.7 | 0.49 | |
| UCC205 | 25 | 80 | 22 | 34.1 | 14.3 | 0.65 | |
| UCC205-14 | 7/8 | 80 | 22 | 34.1 | 14.3 | 0.65 | |
| UCC205-15 | 15/16 | 80 | 22 | 34.1 | 14.3 | 0.65 | |
| UCC205-16 | 1 | 80 | 22 | 34.1 | 14.3 | 0.65 | |
| UCC206 | 30 | 85 | 27 | 38.1 | 15.9 | 0.82 | |
| UCC206-17 | 1-11/16 | 85 | 27 | 38.1 | 15.9 | 0.82 | |
| UCC206-18 | 1-1/8 | 85 | 27 | 38.1 | 15.9 | 0.82 | |
| UCC206-19 | 1-3/16 | 85 | 27 | 38.1 | 15.9 | 0.82 | |
| UCC206-20 | 1-1/4 | 85 | 27 | 38.1 | 15.9 | 0.82 | |
| UCC207 | 35 | 90 | 28 | 42.9 | 17.5 | 0.93 | |
| UCC207-20 | 1-1/4 | 90 | 28 | 42.9 | 17.5 | 0.93 | |
| UCC207-21 | 1-5/16 | 90 | 28 | 42.9 | 17.5 | 0.93 | |
| UCC207-22 | 1-3/8 | 90 | 28 | 42.9 | 17.5 | 0.93 | |
| UCC207-23 | 1-7/16 | 90 | 28 | 42.9 | 17.5 | 0.93 | |
| UCC208 | 40 | 100 | 30 | 49.2 | 19.0 | 1.25 | |
| UCC208-24 | 1-1/2 | 100 | 30 | 49.2 | 19.0 | 1.25 | |
| UCC208-25 | 1-9/16 | 100 | 30 | 49.2 | 19.0 | 1.25 | |
| UCC209 | 45 | 110 | 31 | 49.2 | 19.0 | 1.53 | |
| UCC209-26 | 1-5/8 | 110 | 31 | 49.2 | 19.0 | 1.53 | |
| UCC209-27 | 1-11/16 | 110 | 31 | 49.2 | 19.0 | 1.53 | |
| UCC209-28 | 1-3/4 | 110 | 31 | 49.2 | 19.0 | 1.53 | |
| UCC210 | 50 | 120 | 33 | 51.6 | 19.0 | 1.93 | |
| UCC210-30 | 1-7/8 | 120 | 33 | 51.6 | 19.0 | 1.93 | |
| UCC210-31 | 1-15/16 | 120 | 33 | 51.6 | 19.0 | 1.93 | |
| UCC210-32 | 2 | 120 | 33 | 51.6 | 19.0 | 1.93 | |
| UCC211 | 55 | 125 | 35 | 55.6 | 22.2 | 2.14 | |
| UCC211-32 | 2 | 125 | 35 | 55.6 | 22.2 | 2.14 | |
| UCC211-34 | 2-1/8 | 125 | 35 | 55.6 | 22.2 | 2.14 | |
| UCC211-35 | 2-3/16 | 125 | 35 | 55.6 | 22.2 | 2.14 | |
| UCC212 | 60 | 130 | 38 | 65.1 | 25.4 | 2.52 | |
| UCC212-36 | 2-1/4 | 130 | 38 | 65.1 | 25.4 | 2.52 | |
| UCC212-38 | 2-3/8 | 130 | 38 | 65.1 | 25.4 | 2.52 | |
| UCC212-39 | 2-7/16 | 130 | 38 | 65.1 | 25.4 | 2.52 | |
| UCC213 | 65 | 140 | 40 | 65.1 | 25.4 | 2.97 | |
| UCC213-40 | 2-1/2 | 140 | 40 | 65.1 | 25.4 | 2.97 | |
