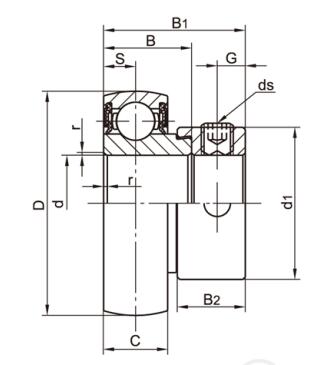

| 轴承型号 | 轴径 d (mm) | 尺寸(mm) | 载荷 (KN) | 重量 (kg) | ||||||||||
| D | B | c | S | B1 | B2 | d1 | r | G | ds | 动载 | 静载 | |||
| U 000 | 10 | 26 | 11 | 8 | 4 | 17.5 | 8.5 | 17 | 0.7 | 3.5 | M4X0.7 | 4.6 | 1.96 | 0.03 |
| U 001 | 12 | 28 | 11 | 8 | 4 | 17.5 | 8.5 | 19 | 0.7 | 3.5 | M4X0.7 | 5.09 | 2.4 | 0.04 |
| U 002 | 15 | 32 | 12 | 9 | 4.5 | 18.5 | 8.5 | 22 | 0.7 | 3.5 | M4X0.7 | 5.58 | 2.84 | 0.05 |
| U 003 | 17 | 35 | 13.5 | 10 | 5 | 20.5 | 9.5 | 25 | 0.8 | 3.5 | M4X0.7 | 5.97 | 3.28 | 0.07 |
| U 004 | 20 | 42 | 16.5 | 12 | 6 | 24.5 | 11 | 30 | 1.3 | 3.8 | M5X0.8 | 9.35 | 5.04 | 0.11 |
| U 005 | 25 | 47 | 17.5 | 12 | 6 | 25.5 | 12 | 36 | 1.3 | 4 | M5X0.8 | 10.09 | 5.83 | 0.15 |
| U 006 | 30 | 55 | 18.5 | 13 | 6.5 | 26.5 | 12 | 42 | 1.5 | 4 | M5X0.8 | 13.23 | 8.28 | 0.21 |
说明: 微型外球面球轴承； 轴承座材质：锌铝合金

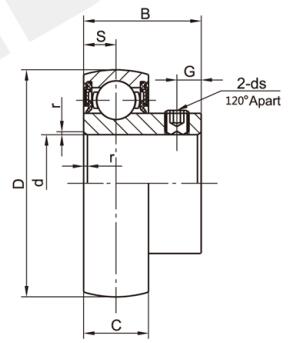

| 轴承型号 | 轴径 d( mm) | 尺寸(mm) | 载荷(KN) | 重量 (kg) | |||||||
| D | B | C | S | r | G | ds | 动载 | 静载 | |||
| K 000 | 10 | 26 | 14 | 8 | 4 | 0.7 | 3 | M3X0.35 | 4.6 | 1.96 | 0.03 |
| K 001 | 12 | 28 | 14.5 | 8 | 4 | 0.7 | 3 | M3X0.35 | 5.09 | 2.4 | 0.04 |
| K 002 | 15 | 32 | 16.5 | 9 | 4.5 | 0.7 | 3.5 | M4X0.5 | 5.58 | 2.84 | 0.05 |
| K 003 | 17 | 35 | 17.5 | 10 | 5 | 0.8 | 3.5 | M4X0.5 | 5.97 | 3.28 | 0.07 |
| K 004 | 20 | 42 | 21 | 12 | 6 | 1.3 | 4 | M5X0.5 | 9.35 | 5.04 | 0.11 |
| K 005 | 25 | 47 | 22.5 | 12 | 6 | 1.3 | 4.5 | M5X0.5 | 10.09 | 5.83 | 0.15 |
| K 006 | 30 | 55 | 24.5 | 13 | 6.5 | 1.5 | 5 | M5X0.5 | 13.23 | 8.28 | 0.21 |
说明: 微型外球面球轴承； 轴承座材质：锌铝合金
