UCX UCX..L3 外球面轴承

* 中等载荷UCX00系列, 宽内圈, 顶丝锁紧
* 轴承材质：Gcr15(AISI52100)轴承钢
* 轴承商标：LDK(可根据需要定制)
* 外圈为球面
* 密封圈：台阶式橡胶密封或三唇密封圈L3（也可定制其他密封圈）
* 添加常规油脂, 也可根据需要添加高温/低温油脂或是固体自润滑油脂。
* 可按需对产品表面进行发黑或镀锌处理，增加防腐蚀性
* 产品内径：有公英制可选，尺寸范围：25mm--85mm

联系我们  PDF 下载

轴承型号	轴径		尺寸 (mm)									动载荷 ( KN )	静载荷 ( KN )	重量 (kg)
	d		D	B	C	S	S1	G	ds		Ca
	(in)	(mm)	D	B	C	S	S1	G	(mm)	(in.UNF)	Ca
UCX05		25	62	38.1	19	15.9	22.2	5.5	M6X1		5.3	19.47	11.43	0.39
UCX05-13	13/16		62	38.1	19	15.9	22.2	5.5		1/4-28	5.3			0.39
UCX05-14	7/8		62	38.1	19	15.9	22.2	5.5		1/4-28	5.3			0.39
UCX05-15	15/16		62	38.1	19	15.9	22.2	5.5		1/4-28	5.3			0.39
UCX05-16	1		62	38.1	19	15.9	22.2	5.5		1/4-28	5.3			0.39
UCX06		30	72	42.9	20	17.5	25.4	6.9	M8X1		5.8	25.69	15.55	0.68
UCX06-17	1-1/16		72	42.9	20	17.5	25.4	6.9		5/16-24	5.8			0.68
UCX06-18	1-1/8		72	42.9	20	17.5	25.4	6.9		5/16-24	5.8			0.68
UCX06-19	1-3/16		72	42.9	20	17.5	25.4	6.9		5/16-24	5.8			0.68
UCX06-20	1-1/4		72	42.9	20	17.5	25.4	6.9		5/16-24	5.8			0.68
UCX07		35	80	49.2	21	19	30.2	8	M8X1		6.2	29.51	18.14	0.82
UCX07-21	1-5/16		80	49.2	21	19	30.2	8		5/16-24	6.2			0.82
UCX07-22	1-3/8		80	49.2	21	19	30.2	8		5/16-24	6.2			0.82
UCX07-23	1-7/16		80	49.2	21	19	30.2	8		5/16-24	6.2			0.82
UCX08		40	85	49.2	22	19	30.2	8	M8X1		6.5	31.85	20.8	0.93
UCX08-24	1-1/2		85	49.2	22	19	30.2	8		5/16-24	6.5			0.93
UCX08-25	1-9/16		85	49.2	22	19	30.2	8		5/16-24	6.5			0.93
UCX09		45	90	51.6	24	19	32.6	10	M10X1.25		7	34.99	23.7	1.00
UCX09-26	1-5/8		90	51.6	24	19	32.6	10		3/8-24	7			1.00
UCX09-27	1-11/16		90	51.6	24	19	32.6	10		3/8-24	7			1.00
UCX09-28	1-3/4		90	51.6	24	19	32.6	10		3/8-24	7			1.00
UCX10		50	100	55.6	25	22.2	33.4	10	M10X1.25		7.4	43.34	29.39	1.35
UCX10-30	1-7/8		100	55.6	25	22.2	33.4	10		3/8-24	7.4			1.35
UCX10-31	1-15/16		100	55.6	25	22.2	33.4	10		3/8-24	7.4			1.35
UCX11		55	110	65.1	27	25.4	39.7	10	M10X1.25		7.6	47.68	33.43	1.90
UCX11-33	2-1/16		110	65.1	27	25.4	39.7	10		3/8-24	7.6			1.90
UCX11-34	2-1/8		110	65.1	27	25.4	39.7	10		3/8-24	7.6			1.90
UCX11-35	2-3/16		110	65.1	27	25.4	39.7	10		3/8-24	7.6			1.90
UCX11-36	2-1/4		110	65.1	27	25.4	39.7	10		3/8-24	7.6			1.90
UCX12		60	120	65.1	28	25.4	39.7	10	M10X1.25		8.5	57.2	40.01	2.27
UCX12-38	2-3/8		120	65.1	28	25.4	39.7	10		3/8-24	8.5			2.27
UCX12-39	2-7/16		120	65.1	28	25.4	39.7	10		3/8-24	8.5			2.27
UCX13		65	125	74.6	29	30.2	44.4	12	M12X1.25		8.9	62.19	43.9	2.45
UCX13-40	2-1/2		125	74.6	29	30.2	44.4	12		7/16-20	8.9			2.45
UCX13-41	2-9/16		125	74.6	29	30.2	44.4	12		7/16-20	8.9			2.45
UCX14		70	130	77.8	30	33.3	44.5	12	M12X1.25		9.2	62.08	44.82	2.47
UCX14-42	2-3/8		130	77.8	30	33.3	44.5	12		7/16-20	9.2			2.47
UCX14-43	2-11/16		130	77.8	30	33.3	44.5	12		7/16-20	9.2			2.47
UCX14-44	2-3/4		130	77.8	30	33.3	44.5	12		7/16-20	9.2			2.47
UCX15		75	140	82.6	33	33.3	49.3	12	M12X1.25		9.5	72.62	53.34	3.11
UCX15-45	2-13/16		140	82.6	33	33.3	49.3	12		7/16-20	9.5			3.11
UCX15-46	2-7/8		140	82.6	33	33.3	49.3	12		7/16-20	9.5			3.11
UCX15-47	2-15/16		140	82.6	33	33.3	49.3	12		7/16-20	9.5			3.11
UCX15-48	3		140	82.6	33	33.3	49.3	12		7/16-20	9.5			3.11
UCX16		80	150	85.7	35	34.1	51.6	12	M12X1.25		11.1	83.15	64.54	3.79
UCX16-49	3-1/16		150	85.7	35	34.1	51.6	12		7/16-20	11.1			3.79
UCX16-50	3-1/8		150	85.7	35	34.1	51.6	12		7/16-20	11.1			3.79
UCX16-51	3-3/16		150	85.7	35	34.1	51.6	12		7/16-20	11.1			3.79
UCX17		85	160	96	37	39.7	56.3	12	M12X1.25		11.8	95.84	72.64	4.82
UCX17-53	3-5/16		160	96	37	39.7	56.3	12		1/2-20	11.8			4.82
UCX17-55	3-7/16		160	96	37	39.7	56.3	12		1/2-20	11.8			4.82

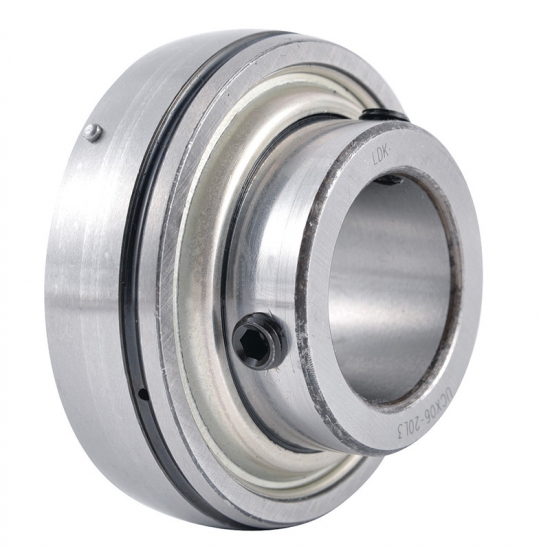

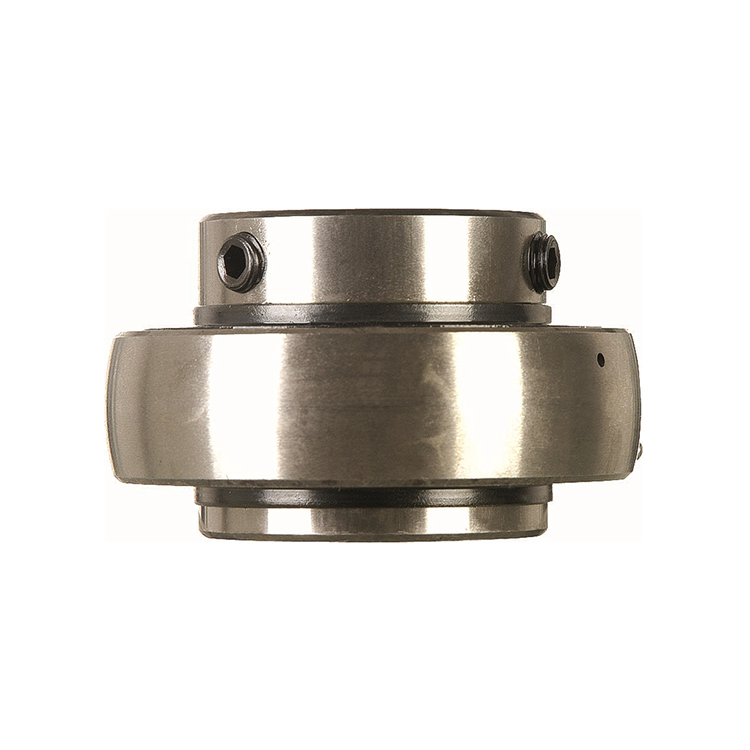

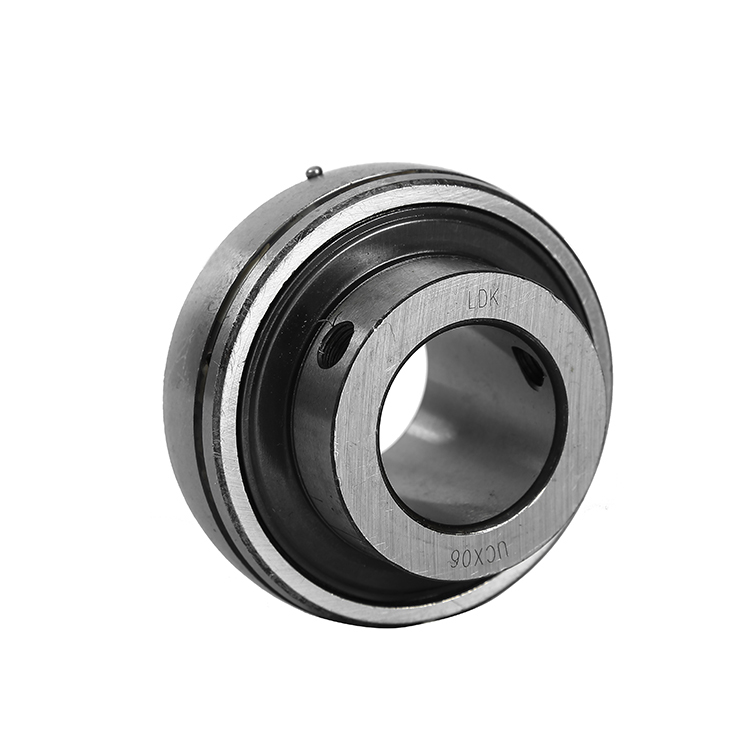

UCX UCX..L3 外球面轴承

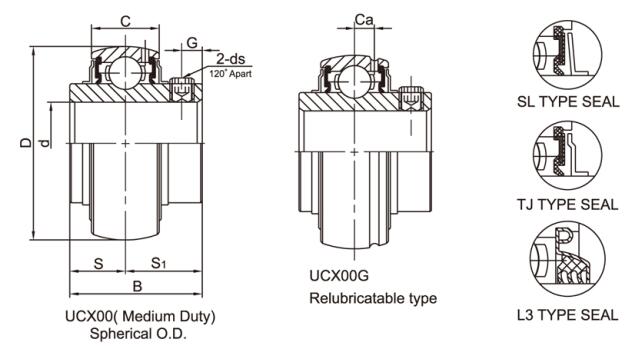

UCX UCX..L3 外球面轴承结构图

UCX UCX..L3 外球面轴承参数
