UCPA2 窄立式座

* 轴承座: 立式座，两个螺栓孔,LDK品牌 (打字可定制)
* 轴承座材质:HT200 铸灰铁(可根据需要定制球墨铸铁材质)
* 油嘴, 位置与座子底部呈45°角
* 喷漆: 墨绿色 (可根据需要定制其他喷漆颜色)
* 轴承座底部实心
* 轴承：Gcr15(AISI52100)轴承钢材质，顶丝锁紧，标准载荷系列
* 轴承可按需添加高温/低温油脂，或者固体自润滑油脂
* 轴承座可在产品的一边或两面配冲压端盖。 (S=通盖/SM=闭盖)

联系我们  PDF 下载

产品型号	轴径		尺寸(mm)										螺栓尺寸 (mm)	重量 (kg)
	d		H	L	J	A	G	H1	Ho	M	B	s
	(in)	(mm)	H	L	J	A	G	H1	Ho	M	B	s
UCWPA201		12	30.2	71	48	36	9	10	57	M10	27.4	11.5	M10	0.67
UCWPA202		15	30.2	71	48	36	9	10	57	M10	27.4	11.5	M10	0.63
UCWPA203		17	30.2	71	48	36	9	10	57	M10	27.4	11.5	M10	0.62
UCPA201		12	30.2	76	52	38	13	11	62	M10	31.0	12.7	M10	0.67
UCPA201-8	1/2		30.2	76	52	38	13	11	62	M10	31.0	12.7	M10	0.67
UCPA202		15	30.2	76	52	38	13	11	62	M10	31.0	12.7	M10	0.63
UCPA202-9	9/16		30.2	76	52	38	13	11	62	M10	31.0	12.7	M10	0.63
UCPA202-10	5/8		30.2	76	52	38	13	11	62	M10	31.0	12.7	M10	0.63
UCPA203		17	30.2	76	52	38	13	11	62	M10	31.0	12.7	M10	0.62
UCPA203-11	11/16		30.2	76	52	38	13	11	62	M10	31.0	12.7	M10	0.62
UCPA204		20	30.2	76	52	38	13	11	62	M10	31.0	12.7	M10	0.60
UCPA204-12	3/4		30.2	76	52	38	13	11	62	M10	31.0	12.7	M10	0.60
UCPA205		25	36.5	84	56	38	15	12	72	M10	34.1	14.3	M10	0.81
UCPA205-14	7/8		36.5	84	56	38	15	12	72	M10	34.1	14.3	M10	0.81
UCPA205-15	15/16		36.5	84	56	38	15	12	72	M10	34.1	14.3	M10	0.81
UCPA205-16	1		36.5	84	56	38	15	12	72	M10	34.1	14.3	M10	0.81
UCPA206		30	42.9	94	66	48	18	12	84	M14	38.1	15.9	M14	1.20
UCPA206-17	1-1/16		42.9	94	66	48	18	12	84	M14	38.1	15.9	M14	1.20
UCPA206-18	1-1/8		42.9	94	66	48	18	12	84	M14	38.1	15.9	M14	1.20
UCPA206-19	1-3/16		42.9	94	66	48	18	12	84	M14	38.1	15.9	M14	1.20
UCPA206-20	1-1/4		42.9	94	66	48	18	12	84	M14	38.1	15.9	M14	1.20
UCPA207		35	47.6	110	80	48	20	13	95	M14	42.9	17.5	M14	1.70
UCPA207-20	1-1/4		47.6	110	80	48	20	13	95	M14	42.9	17.5	M14	1.70
UCPA207-21	1-5/16		47.6	110	80	48	20	13	95	M14	42.9	17.5	M14	1.70
UCPA207-22	1-3/8		47.6	110	80	48	20	13	95	M14	42.9	17.5	M14	1.70
UCPA207-23	1-7/16		47.6	110	80	48	20	13	95	M14	42.9	17.5	M14	1.70
UCPA208		40	49.2	116	84	54	20	13	100	M14	49.2	19.0	M14	1.90
UCPA208-24	1-1/2		49.2	116	84	54	20	13	100	M14	49.2	19.0	M14	1.90
UCPA208-25	1-9/16		49.2	116	84	54	20	13	100	M14	49.2	19.0	M14	1.90
UCPA209		45	54.2	120	90	54	25	13	108	M14	49.2	19.0	M14	2.20
UCPA209-26	1-5/8		54.2	120	90	54	25	13	108	M14	49.2	19.0	M14	2.20
UCPA209-27	1-11/16		54.2	120	90	54	25	13	108	M14	49.2	19.0	M14	2.20
UCPA209-28	1-3/4		54.2	120	90	54	25	13	108	M14	49.2	19.0	M14	2.20
UCPA210		50	57.2	130	94	60	25	14	116	M16	51.6	19.0	M16	2.60
UCPA210-30	1-7/8		57.2	130	94	60	25	14	116	M16	51.6	19.0	M16	2.60
UCPA210-31	1-15/16		57.2	130	94	60	25	14	116	M16	51.6	19.0	M16	2.60
UCPA210-32	2		57.2	130	94	60	25	14	116	M16	51.6	19.0	M16	2.60
UCPA211		55	63.5	140	104	66	25	14	125	Ml 6	55.6	22.2	M16	3.00
UCPA211-32	2		63.5	140	104	66	25	14	125	Ml 6	55.6	22.2	M16	3.00
UCPA211-34	2-1/8		63.5	140	104	66	25	14	125	Ml 6	55.6	22.2	M16	3.00
UCPA211-35	2-3/16		63.5	140	104	66	25	14	125	Ml 6	55.6	22.2	M16	3.00
UCPA212		60	69.9	150	114	68	25	17	138	M16	65.1	25.4	M16	4.24
UCPA212-36	2-1/4		69.9	150	114	68	25	17	138	M16	65.1	25.4	M16	4.24
UCPA212-38	2-3/8		69.9	150	114	68	25	17	138	M16	65.1	25.4	M16	4.24
UCPA212-39	2-7/16		69.9	150	114	68	25	17	138	M16	65.1	25.4	M16	4.24

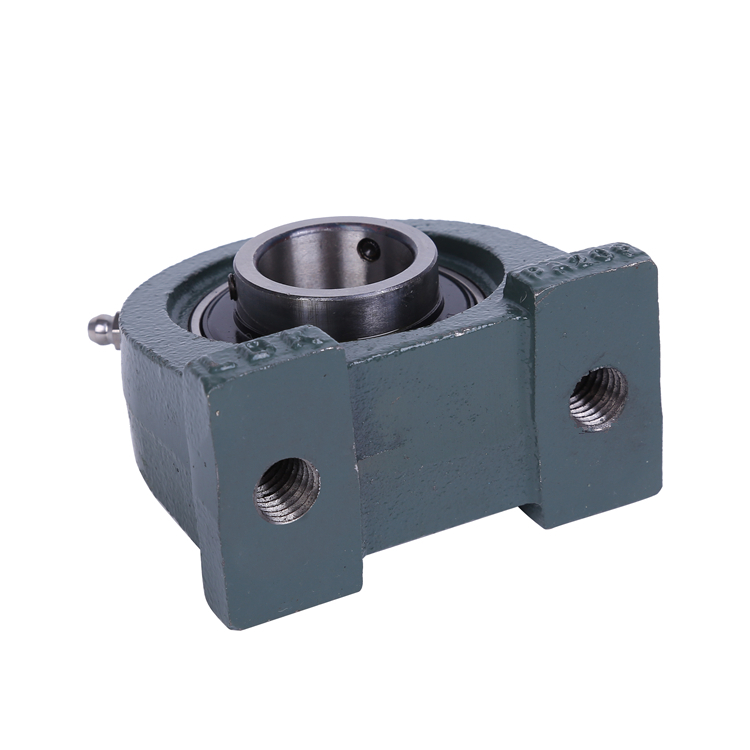

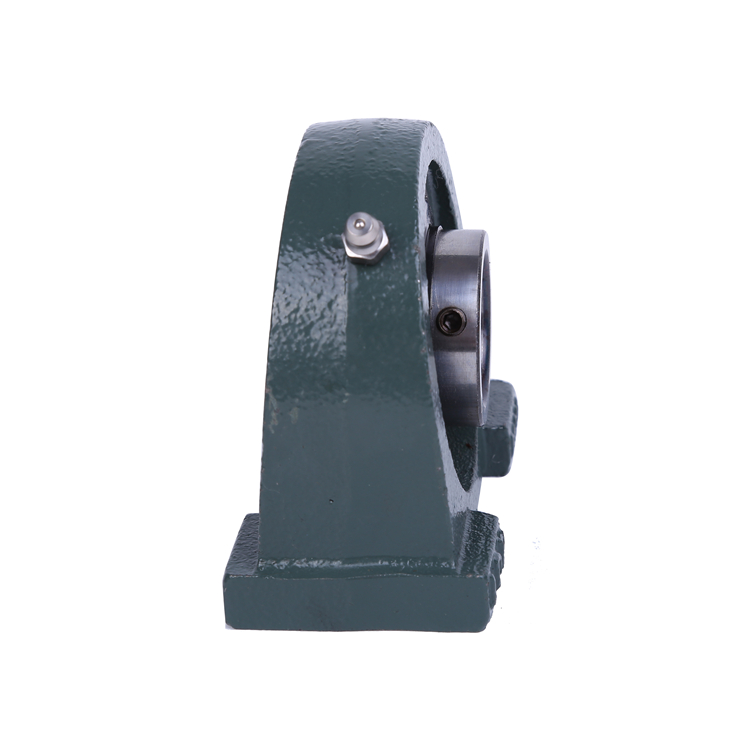

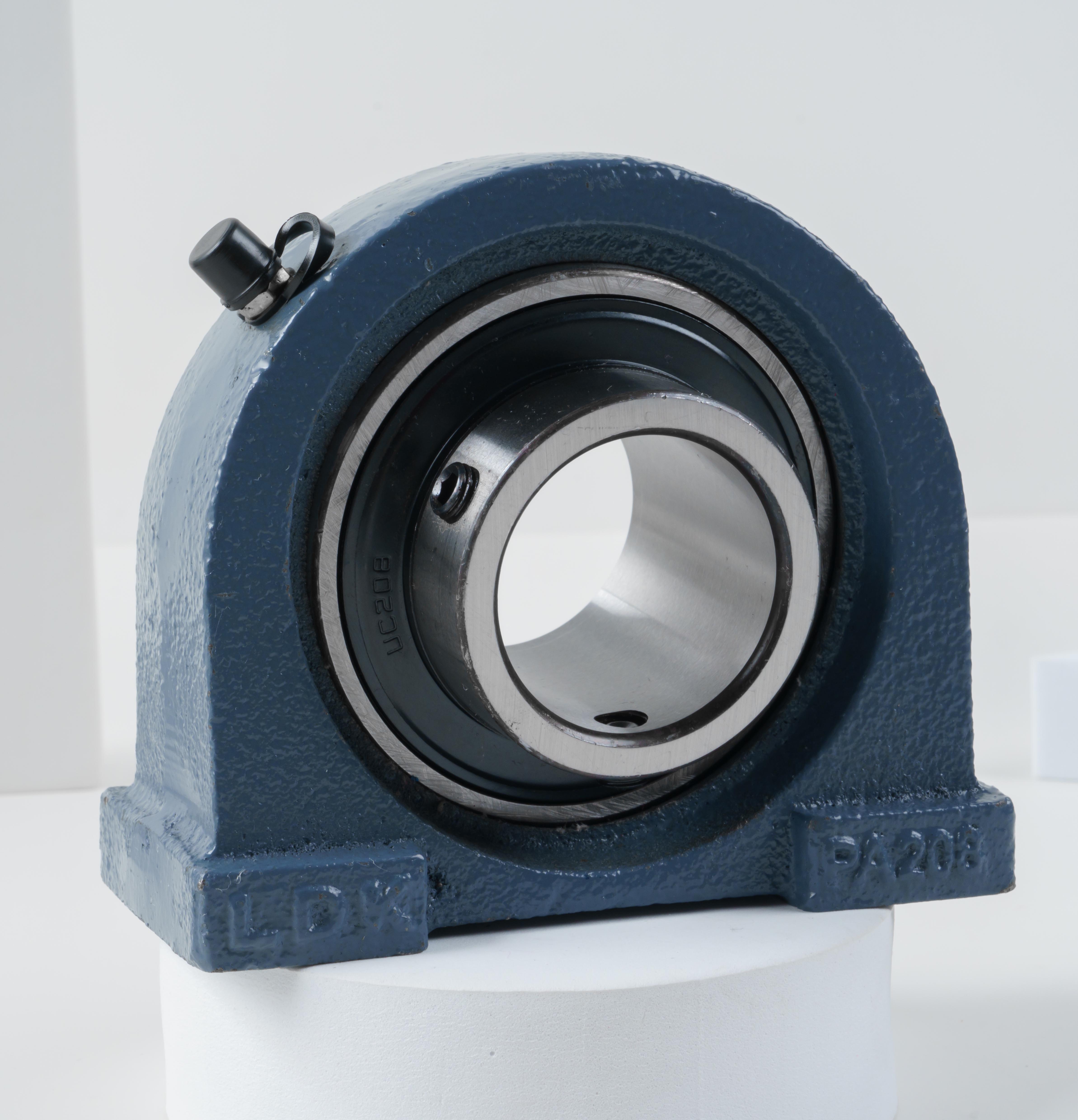

UCPA2 窄立式座

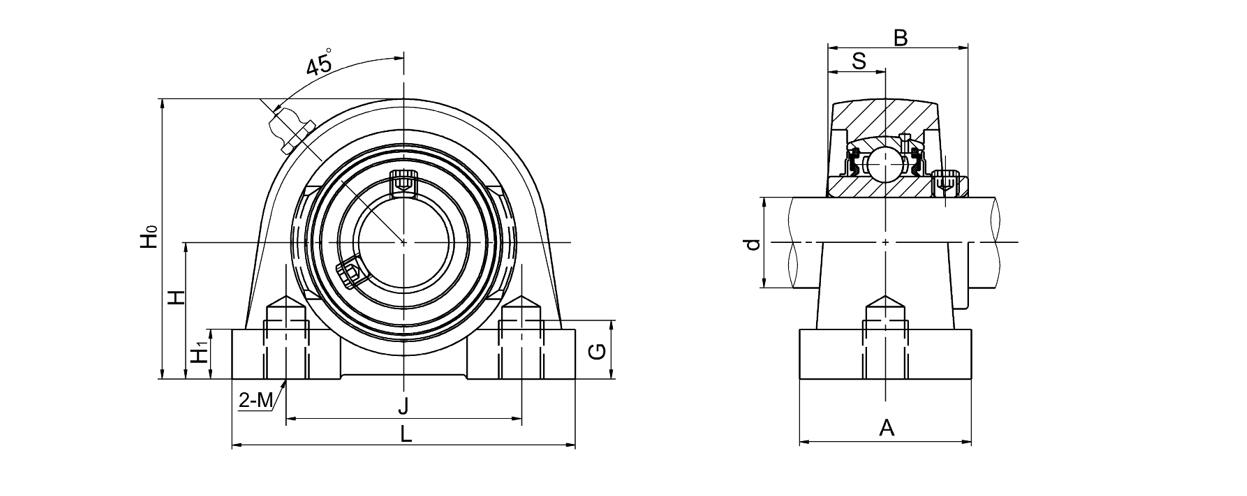

UCPA2 窄立式座结构图

UCPA2 窄立式座参数
