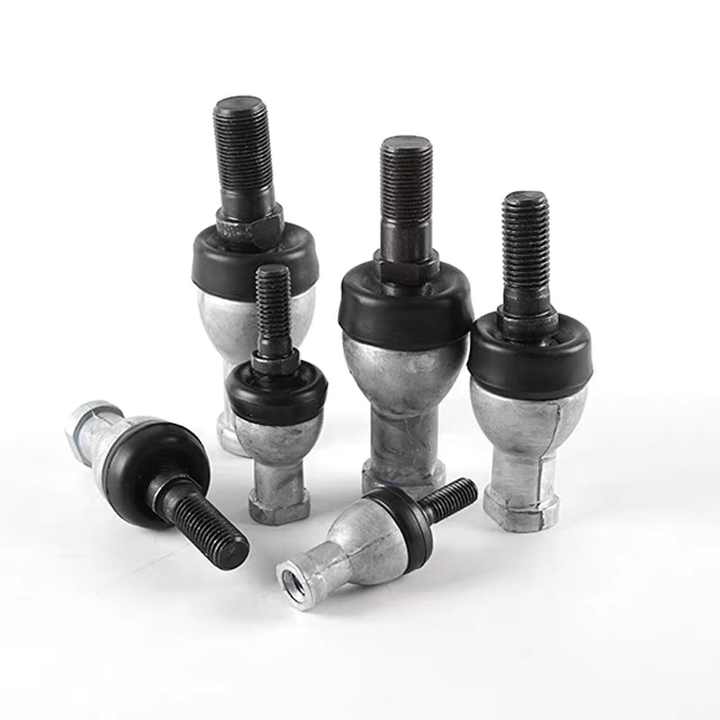

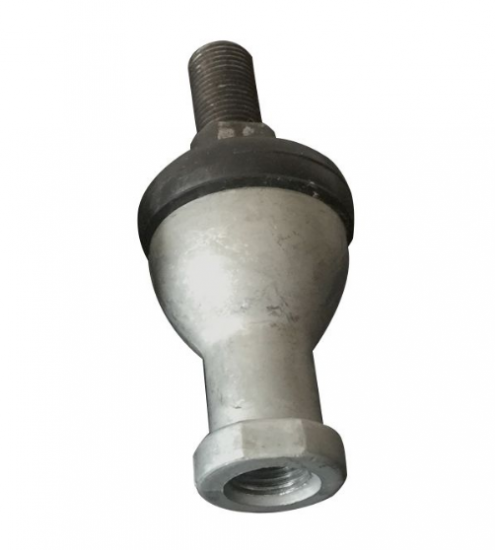

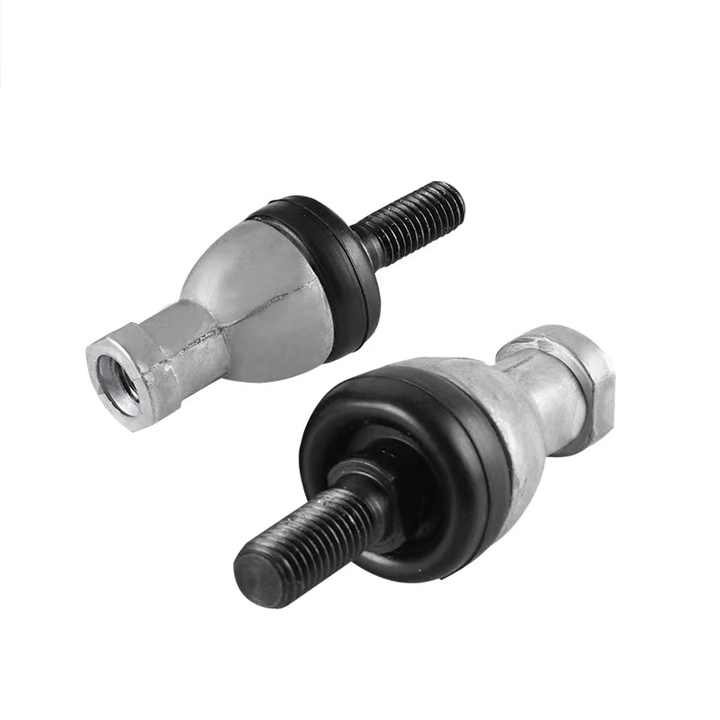

| 轴承型号 | 尺寸(mm) | 额定静载荷 KN | a° 调心角度 | 重量 ≈ kg | ||||||||||||||

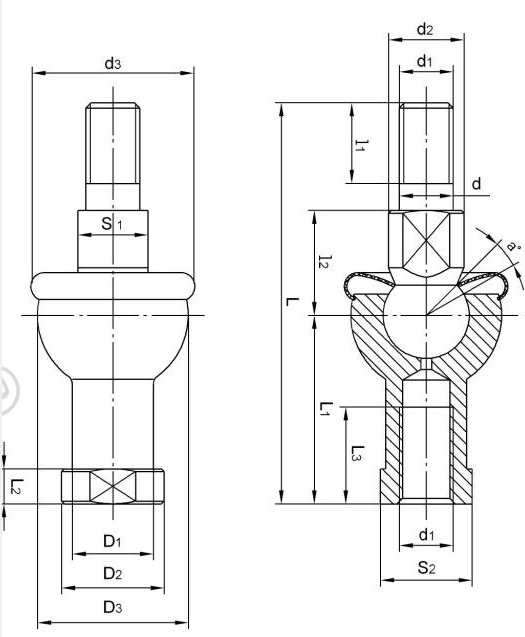

| d | d3-6g | d2 | d3 | l1 | l2 | S1 | L | L1 | L2 | L3 | D1 | D2 | D3 | S2 | ||||
| SQZ5-RS | 5 | M5 | 9 | 19 | 8 | 11 | 7 | 46 | 24 | 4 | 12 | 9 | 11 | 17 | 9 | 2.8 | 15 | 0.025 |
| SQZ6-RS | 6 | M6 | 10 | 20 | 11 | 12.2 | 8 | 55.2 | 28 | 5 | 15 | 10 | 13 | 20 | 11 | 3.7 | 15 | 0.041 |
| SQZ8-RS | 8 | M8 | 12 | 24 | 12 | 16 | 10 | 65 | 32 | 5 | 16 | 12.5 | 16 | 24 | 14 | 5.8 | 15 | 0.075 |
| SQZ10-RS | 10 | M10X1.25 | 14 | 30 | 15 | 19.5 | 11 | 74.5 | 35 | 6.5 | 18 | 15 | 19 | 28 | 17 | 8.4 | 15 | 0.12 |
| SQZ12-RS | 12 | M12X1.25 | 17 | 32 | 17 | 21 | 15 | 84 | 40 | 6.5 | 20 | 17.5 | 22 | 32 | 19 | 11 | 15 | 0.18 |
| SQZ14-RS | 14 | M14X1.5 | 19 | 38 | 22 | 23.5 | 17 | 103 | 45 | 8 | 25 | 20 | 25 | 36 | 22 | 15 | 11 | 0.27 |
| SQZ16-RS | 16 | M16x1.5 | 22 | 44 | 23 | 25.5 | 19 | 112 | 50 | 8 | 27 | 22 | 27 | 40 | 22 | 15 | 11 | 0.36 |
| SQZ18-RS | 18 | M18X1.5 | 23 | 45 | 25 | 31 | 20 | 130.5 | 58 | 10 | 32 | 25 | 31 | 45 | 27 | 19 | 11 | 0.54 |
| SQZ20-RS | 20 | M20x1.5 | 27 | 50 | 25 | 29 | 24 | 133 | 63 | 10 | 38 | 27.5 | 34 | 45 | 30 | 19 | 7.5 | 0.57 |
| SQZ22-RS | 22 | M22x1.5 | 27 | 52 | 26 | 33 | 24 | 145 | 70 | 12 | 43 | 30 | 37 | 50 | 32 | 23 | 7.5 | 0.76 |
说明：
球头杆端壳体螺纹可为左旋，基于左旋在型号及螺纹后添加后缀"L"例如:SQZL5-RS M5L-6H
