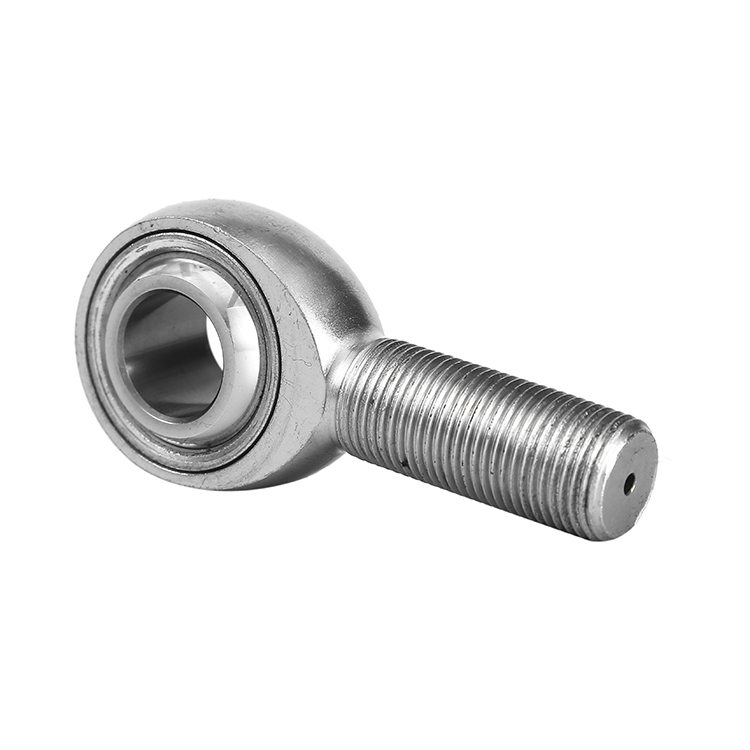

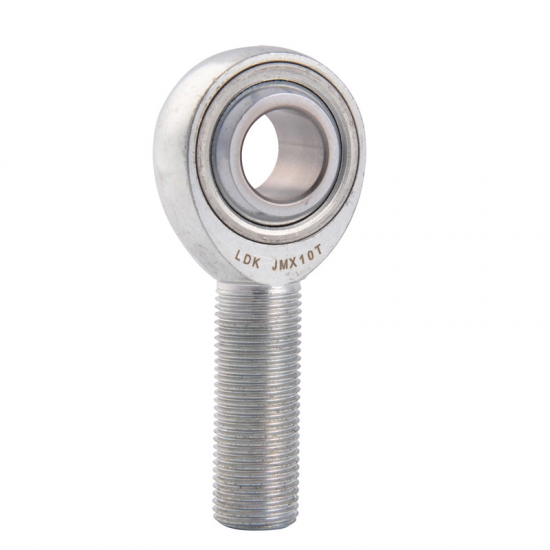

钢球: Gcr15轴承钢,热处理,最小HRC56°,并经过精磨,表面抛光镀铬处理 ;
壳体: 合金钢,热处理,表面镀锌,钝化处理
衬套: 合金钢,热处理,表面镀锌,钝化处理
滑动磨擦副: 钢/钢或者钢/PTFE复合物
壳体: 合金钢,热处理,表面镀锌,钝化处理
衬套: 合金钢,热处理,表面镀锌,钝化处理
滑动磨擦副: 钢/钢或者钢/PTFE复合物

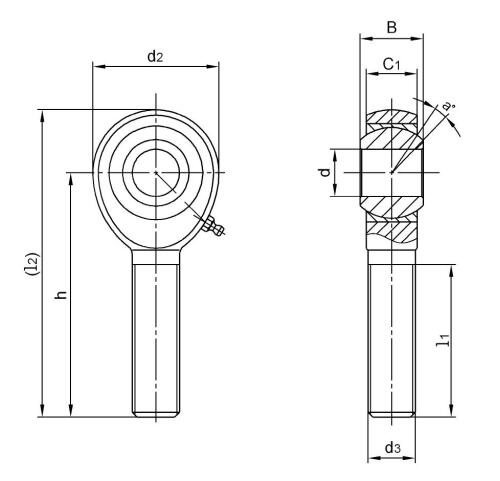

| 轴承型号 | 尺寸(mm/inches) | 钢球直径 | a° 调心角度 | 额定载荷 (KN) | 重量 ≈kg | |||||||
d+0.038 -0 012 | B | C1 | d2 | d3 UNF-2A | h | L1 | (L2) | |||||
| JMX3 | 4.826 | 7.92 | 6.35 | 15.88 | 10-32 | 31.75 | 19.05 | 39.69 | 11.11 | 13 | 12.6 | 0.013 |
| JMX3 | 0.1900 | 0.312 | 0.250 | 0.625 | 10-32 | 1.250 | 0.750 | 1.562 | 0.437 | 13 | 12.6 | 0.013 |
| JMX4 | 6.35 | 9.53 | 7.14 | 19.05 | 1/4-28 | 39.67 | 25.4 | 49.2 | 12.7 | 16 | 23.4 | 0.018 |
| JMX4 | 0.2500 | 0.375 | 0.281 | 0.750 | 1/4-28 | 1.562 | 1.000 | 1.937 | 0.500 | 16 | 23.4 | 0.018 |
| JMX5 | 7.938 | 11.10 | 8.74 | 22.23 | 5/16-24 | 47.63 | 31.75 | 58.75 | 15.88 | 14 | 33.9 | 0.031 |
| JMX5 | 0.3125 | 0.437 | 0.344 | 0.875 | 5/16-24 | 1.875 | 1.250 | 2.312 | 0.625 | 14 | 33.9 | 0.031 |
| JMX6 | 9.525 | 12.7 | 10.31 | 25.4 | 3/8-24 | 49.22 | 31.75 | 61.92 | 18.26 | 12 | 42.4 | 0.049 |
| JMX6 | 0.3750 | 0.500 | 0.406 | 1.000 | 3/8-24 | 1.938 | 1.250 | 2.437 | 0.719 | 12 | 42.4 | 0.049 |
| JMX7 | 11.112 | 14.27 | 11.1 | 28.58 | 7/16-20 | 53.98 | 34.93 | 68.27 | 20.62 | 14 | 45.7 | 0.072 |
| JMX7 | 0.4375 | 0.562 | 0.437 | 1.125 | 7/16-20 | 2.125 | 1.375 | 2.678 | 0.812 | 14 | 45.7 | 0.072 |
| JMX8 | 12.7 | 15.88 | 12.7 | 33.32 | 1/2-20 | 61.92 | 38.1 | 78.58 | 23.8 | 12 | 72.2 | 0.113 |
| JMX8 | 0.5000 | 0.625 | 0.500 | 1.312 | 1/2-20 | 2.438 | 1.500 | 3.093 | 0.937 | 12 | 72.2 | 0.113 |
| JMX10 | 15.875 | 19.05 | 14.27 | 38.1 | 5/8-18 | 66.68 | 41.28 | 85.73 | 28.58 | 16 | 79.8 | 0.172 |
| JMX10 | 0.6250 | 0.750 | 0.562 | 1.500 | 5/8-18 | 2.625 | 1.625 | 3.375 | 1.125 | 16 | 79.8 | 0.172 |
| JMX12 | 19.05 | 22.23 | 17.45 | 44.45 | 3/4-16 | 73.02 | 44.45 | 95.25 | 33.33 | 14 | 124.9 | 0.272 |
| JMX12 | 0.7500 | 0.875 | 0.678 | 1.750 | 3/4-16 | 2.875 | 1.750 | 3.750 | 1.312 | 14 | 124.9 | 0.272 |
| JMX14 | 22.225 | 22.23 | 17.45 | 50.8 | 7/8-14 | 85.73 | 47.63 | 111.1 | 33.33 | 10 | 247.7 | 0.408 |
| JMX14 | 0.8750 | 0.875 | 0.687 | 2.000 | 7/8-14 | 3.375 | 1.875 | 4.375 | 1.312 | 10 | 247.7 | 0.408 |
| JMX16 | 25.4 | 34.93 | 25.4 | 74.93 | 5/4-12 | 104.78 | 53.98 | 139.7 | 47.62 | 14 | 476.7 | 1.241 |
| JMX16 | 1.0000 | 1.375 | 1.0000 | 2.950 | 5/4-12 | 4.125 | 2.125 | 5.500 | 1.875 | 14 | 476.7 | 1.241 |
| JMX16-1** | 25.4 | 34.93 | 25.4 | 74.93 | 1-14 | 104.78 | 53.98 | 139.7 | 47.62 | 14 | 476.7 | 1.117 |
| JMX16-1** | 1.0000 | 1.375 | 1.0000 | 2.950 | 1-14 | 4.125 | 2.125 | 5.500 | 1.875 | 14 | 476.7 | 1.117 |
*备注:
添加后缀“Z”表示带油嘴，例如：JMX6Z
添加后缀“Y"表示带螺杆，例如：JMX5Y
添加后缀“T”表示带自润滑衬垫，例如：JMX12T
*我司可承接不同螺距和螺纹精度的杆端生产.
*型号添加后缀"L"代表左旋，例如:JMXL12T 3/4-16L
