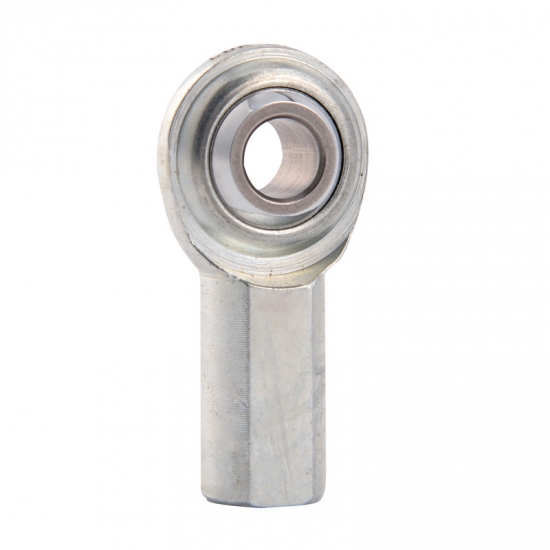

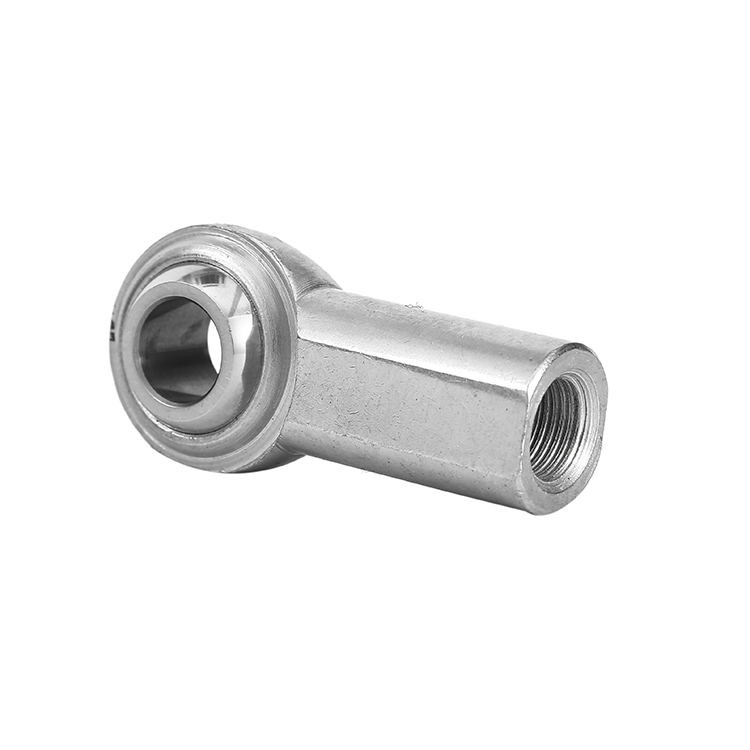

钢球: Gcr15轴承钢,热处理,最小HRC56°,并经过精磨,表面抛光镀硬铬处理;
壳体: 炭钢,表面镀锌,钝化处理
衬套: PTFE复合物或者PTFE编织物
滑动磨擦副: 钢/PTFE
壳体: 炭钢,表面镀锌,钝化处理
衬套: PTFE复合物或者PTFE编织物
滑动磨擦副: 钢/PTFE

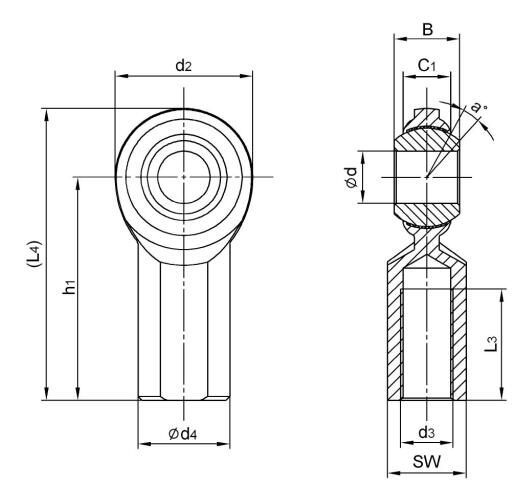

| 轴承型号 | 尺寸(mm/inches) | 钢球 直径 | 调心 角度 a° | 额定载荷 (KN) | 重量 ≈ kg | |||||||||
d+0.038 -0.012 | B | C1 | d2 | d3 UNF-2B | h1 | L3 | (L4) | d4 | sw | |||||
| CF3T | 4.826 | 7.92 | 5.94 | 15.88 | 10-32 | 26.97 | 11.11 | 34.91 | 10.31 | 7.92 | 11.11 | 13 | 5.8 | 0.018 |
| 0.1900 | 0.312 | 0.234 | 0.625 | 10-32 | 1.062 | 0.437 | 1.375 | 0.406 | 0.312 | 0.437 | 13 | 5.8 | 0.018 | |
| CF4T | 6.35 | 9.53 | 6.35 | 19.05 | 1/4-28 | 33.32 | 14.28 | 42.85 | 11.89 | 9.52 | 12.7 | 18 | 8.2 | 0.022 |
| 0.2500 | 0.375 | 0.250 | 0.750 | 1/4-28 | 1.312 | 0.562 | 1.687 | 0.468 | 0.375 | 0.500 | 18 | 8.2 | 0.022 | |
| CF5T | 7.938 | 11.10 | 7.92 | 22.23 | 5/16-24 | 34.92 | 15.88 | 46.03 | 12.7 | 11.1 | 15.88 | 14 | 10.2 | 0.036 |
| 0.3125 | 0.437 | 0.312 | 0.875 | 5/16-24 | 1.375 | 0.625 | 1.812 | 0.500 | 0.437 | 0.625 | 14 | 10.2 | 0.036 | |
| CF6T | 9.525 | 12.7 | 9.11 | 25.4 | 3/8-24 | 41.28 | 19.05 | 53.98 | 17.45 | 14.27 | 18.26 | 14 | 14 | 0.059 |
| 0.3750 | 0.500 | 0.359 | 1.000 | 3/8-24 | 1.625 | 0.750 | 2.125 | 0.687 | 0.562 | 0.719 | 14 | 14 | 0.059 | |
| CF7T | 11.112 | 14.27 | 10.31 | 28.58 | 7/16-20 | 46.02 | 22.22 | 60.3 | 19.05 | 15.88 | 20.62 | 13 | 17.6 | 0.081 |
| 0.4375 | 0.562 | 0.406 | 1.125 | 7/16-20 | 1.812 | 0.875 | 2.375 | 0.750 | 0.625 | 0.812 | 13 | 17.6 | 0.081 | |
| CF8T | 12.7 | 15.88 | 11.5 | 33.32 | 1/2-20 | 53.98 | 25.4 | 70.64 | 22.22 | 19.05 | 23.8 | 12 | 23.7 | 0.131 |
| 0.500 | 0.625 | 0.453 | 1.312 | 1/2-20 | 2.125 | 1.000 | 2.781 | 0.875 | 0.750 | 0.937 | 12 | 23.7 | 0.131 | |
| CF10T | 15.875 | 19.05 | 12.29 | 38.1 | 5/8-18 | 63.5 | 31.75 | 82.55 | 25.4 | 22.22 | 28.58 | 16 | 25.7 | 0.195 |
| 0.6250 | 0.750 | 0.484 | 1.500 | 5/8-18 | 2.5 | 1.250 | 3.250 | 1.000 | 0.875 | 1.125 | 16 | 25.7 | 0.195 | |
| CF12T | 19.05 | 22.23 | 15.06 | 44.45 | 3/4-16 | 73.02 | 38.1 | 95.25 | 28.58 | 25.4 | 33.33 | 14 | 42.4 | 0.294 |
| 0.7500 | 0.875 | 0.593 | 1.750 | 3/4-16 | 2.875 | 1.500 | 3.75 | 1.125 | 1.000 | 1.312 | 14 | 42.4 | 0.294 | |
说明：
*我司可承接不同螺距和螺纹精度的杆端生产.
*型号添加后缀"L"代表左旋，例如:CFL12T 3/4-16L
