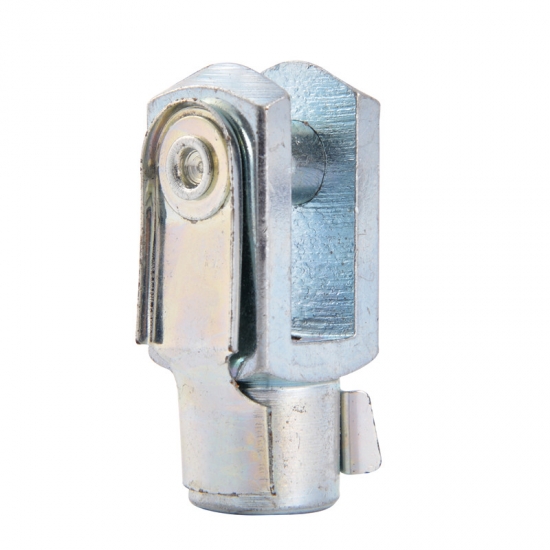

Y DIN71751 ( Rod Clevies )

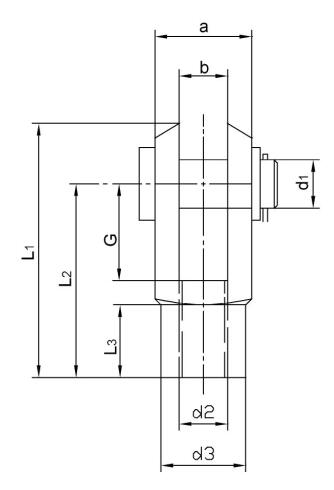

| 型号 | d1 | G | a | b | d2 | d3 | L1 | L2 | L3 | 重量 ≈ kg |
| Y 4x8 | 4 | 8 | 8 | 4 | M4 | 8 | 21 | 16 | 6 | 0.006 |
| Y 4x16 | 4 | 16 | 8 | 4 | M4 | 8 | 29 | 24 | 6 | 0.008 |
| Y 5x10 | 5 | 10 | 10 | 5 | M5 | 9 | 26 | 20 | 7.5 | 0.010 |
| Y 5x20 | 5 | 20 | 10 | 5 | M5 | 9 | 36 | 30 | 7.5 | 0.014 |
| Y 6x12 | 6 | 12 | 12 | 6 | M6 | 10 | 31 | 24 | 9 | 0.016 |
| Y 6x24 | 6 | 24 | 12 | 6 | M6 | 10 | 43 | 36 | 9 | 0.023 |
| Y 8x16 | 8 | 16 | 16 | 8 | M8 | 14 | 42 | 32 | 12 | 0.038 |
| Y 8x32 | 8 | 32 | 16 | 8 | M8 | 14 | 58 | 48 | 12 | 0.055 |
| Y 10x20 | 10 | 20 | 20 | 10 | M10 | 18 | 52 | 40 | 15 | 0.080 |
| Y 10x40 | 10 | 40 | 20 | 10 | M10 | 18 | 72 | 60 | 15 | 0.120 |
| Y 12x24 | 12 | 24 | 24 | 12 | M12 | 20 | 62 | 48 | 18 | 0.125 |
| Y 12x48 | 12 | 48 | 24 | 12 | M12 | 20 | 86 | 72 | 18 | 0.180 |
| Y 14x28 | 14 | 28 | 28 | 14 | M14 | 24 | 72 | 56 | 22.5 | 0.190 |
| Y 14x56 | 14 | 56 | 28 | 14 | M14 | 24 | 101 | 85 | 22.5 | 0.265 |
| Y 16x32 | 16 | 32 | 32 | 16 | M16 | 26 | 83 | 64 | 24 | 0.300 |
| Y 16x64 | 16 | 64 | 32 | 16 | M16 | 26 | 115 | 96 | 24 | 0.430 |
