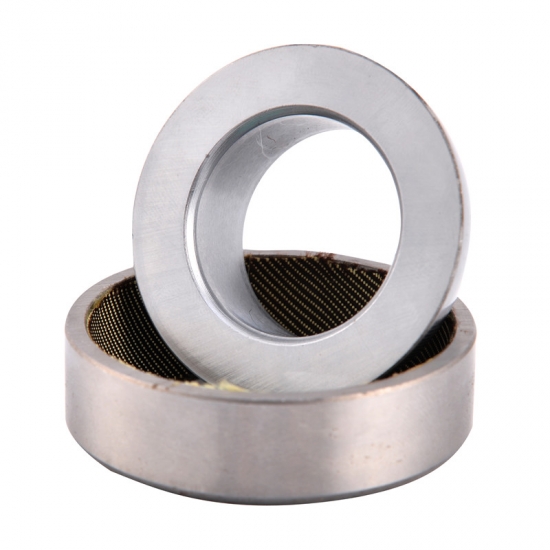

外圈：Gcr15轴承钢，热处理，HRC58-64°，表面磷化处理，带有PTFE编织物
内圈：Gcr15轴承钢，热处理，HRC58-64°，并经过精磨，表面镀硬铬处理
滑动摩擦副：钢/PTFE编织物
内圈：Gcr15轴承钢，热处理，HRC58-64°，并经过精磨，表面镀硬铬处理
滑动摩擦副：钢/PTFE编织物

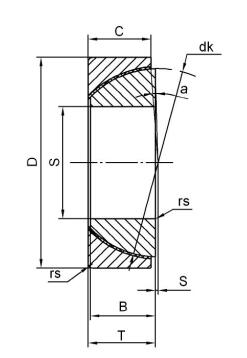

| 轴承型号 | 尺寸(mm) | 额定载荷 KN | a0 ≈ | 重量 ≈ kg | ||||||||
| d | D | B | c | T | dk | s | rs | 动载 | 静载 | |||
| GAC25T | 25 | 47 | 15 | 14 | 15 | 42 | 0.6 | 1 | 75 | 149 | 3.5 | 0.148 |
| GAC28T | 28 | 52 | 15 | 15 | 16 | 47 | 1 | 1 | 100 | 200 | 2 | 0.186 |
| GAC30T | 30 | 55 | 17 | 15 | 17 | 49.5 | 1.3 | 1 | 95 | 188 | 3 | 0.208 |
| GAC32T | 32 | 58 | 17 | 16 | 17 | 52 | 2 | 1 | 125 | 250 | 2 | 0.241 |
| GAC35T | 35 | 62 | 18 | 16 | 18 | 55.5 | 2.1 | 1 | 117 | 234 | 3 | 0.268 |
| GAC40T | 40 | 68 | 19 | 17 | 19 | 62 | 2.8 | 1 | 139 | 277 | 3 | 0.327 |
| GAC45T | 45 | 75 | 20 | 18 | 20 | 68.5 | 3.5 | 1 | 162 | 324 | 3 | 0.416 |
| GAC50T | 50 | 80 | 20 | 19 | 20 | 74 | 4.3 | 1 | 185 | 370 | 3 | 0.455 |
| GAC55T | 55 | 90 | 23 | 20 | 23 | 82 | 5 | 1.1 | 216 | 432 | 3 | 0.645 |
| GAC60T | 60 | 95 | 23 | 21 | 23 | 88.5 | 5.7 | 1.1 | 245 | 489 | 3 | 0.714 |
| GAC65T | 65 | 100 | 23 | 22 | 23 | 93.5 | 6.5 | 1.1 | 271 | 542 | 2.5 | 0.759 |
| GAC70T | 70 | 110 | 25 | 23 | 25 | 102 | 7.2 | 1.1 | 309 | 618 | 2.5 | 1.04 |
| GAC75T | 75 | 115 | 25 | 24 | 25 | 107 | 7.9 | 1.1 | 339 | 676 | 2.5 | 1.12 |
| GAC80T | 80 | 125 | 29 | 25.5 | 29 | 115 | 8.6 | 1.1 | 387 | 772 | 2.5 | 1.54 |
| GAC85T | 85 | 130 | 29 | 26.5 | 29 | 122 | 9.4 | 1.1 | 426 | 851 | 2.5 | 1.61 |
| GAC90T | 90 | 140 | 32 | 28 | 32 | 128.5 | 10.1 | 1.5 | 474 | 948 | 2.5 | 2.09 |
| GAC95T | 95 | 145 | 32 | 29.5 | 32 | 135 | 10.8 | 1.5 | 525 | 1049 | 2.5 | 2.22 |
| GAC100T | 100 | 150 | 32 | 31 | 32 | 141 | 11.6 | 1.5 | 577 | 1151 | 2 | 2.34 |
| GAC105T | 105 | 160 | 35 | 32.5 | 35 | 148 | 12.3 | 2 | 634 | 1267 | 2 | 2.93 |
| GAC110T | 110 | 170 | 38 | 34 | 38 | 155 | 13 | 2 | 695 | 1380 | 2 | 3.68 |
| GAC120T | 120 | 180 | 38 | 37 | 38 | 168 | 14.5 | 2 | 820 | 1630 | 2 | 3.97 |
| GAC130T | 130 | 200 | 45 | 43 | 45 | 188 | 18 | 2.5 | 1060 | 2130 | 1 | 5.92 |
| GAC140T | 140 | 210 | 45 | 43 | 45 | 198 | 19 | 2.5 | 1120 | 2240 | 1 | 6.33 |
| GAC150T | 150 | 225 | 48 | 46 | 48 | 211 | 20 | 3 | 1280 | 2550 | 1 | 8.01 |
| GAC160T | 160 | 240 | 51 | 49 | 51 | 225 | 20 | 3 | 1445 | 2900 | 1 | 9.42 |
| GAC170T | 170 | 260 | 57 | 55 | 57 | 246 | 21 | 3 | 1780 | 3560 | 1 | 12.3 |
| GAC180T | 180 | 280 | 64 | 61 | 64 | 260 | 21 | 3 | 2090 | 4170 | 1 | 17.4 |
| GAC190T | 190 | 290 | 64 | 62 | 64 | 275 | 26 | 3 | 2250 | 4490 | 1.5 | 18.2 |
| GAC200T | 200 | 310 | 70 | 66 | 70 | 290 | 26 | 3 | 2520 | 5040 | 1 | 22.5 |
