钢球：440C不锈钢，热处理，精磨
外圈：304不锈钢，并垫有PTFE复合物
滑动摩擦副：钢/PTFE复合物
外圈：304不锈钢，并垫有PTFE复合物
滑动摩擦副：钢/PTFE复合物

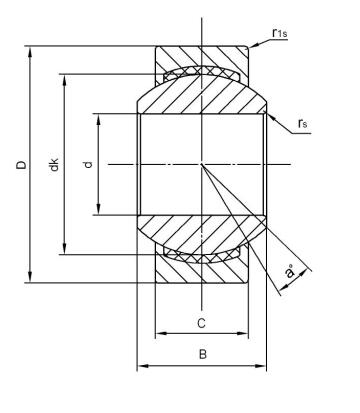

| 轴承型号 | 尺寸(mm) | 额定载荷 KN | a° ≈ | 重量 ≈kg | |||||||
| d | D | B | c | dk | rs | r1s min | 动载 | 静载 | |||
| SGE4C | 4 | 12 | 5 | 3 | 8 | 0.3 | 0.3 | 2.1 | 5.4 | 16 | 0.003 |
| SGE5C | 5 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 3.6 | 9.1 | 13 | 0.005 |
| SGE6C | 6 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 3.6 | 9.1 | 13 | 0.004 |
| SGE8C | 8 | 16 | 8 | 5 | 13 | 0.3 | 0.3 | 5.8 | 14 | 15 | 0.008 |
| SGE10C | 10 | 19 | 9 | 6 | 16 | 0.3 | 0.3 | 8.6 | 21 | 12 | 0.011 |
| SGE12C | 12 | 22 | 10 | 7 | 18 | 0.3 | 0.3 | 11 | 28 | 10 | 0.015 |
| SGE15C | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 18 | 45 | 8 | 0.027 |
| SGE17C | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 22 | 56 | 10 | 0.041 |
| SGE20C | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 31 | 78 | 9 | 0.066 |
| SGE25C | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 51 | 127 | 7 | 0.119 |
| SGE30C | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 65 | 166 | 6 | 0.163 |
