钢球：440C不锈钢，热处理，精磨
外圈：304不锈钢，并垫有PTFE复合物衬垫
滑动摩擦副：钢/PTFE复合物
外圈：304不锈钢，并垫有PTFE复合物衬垫
滑动摩擦副：钢/PTFE复合物

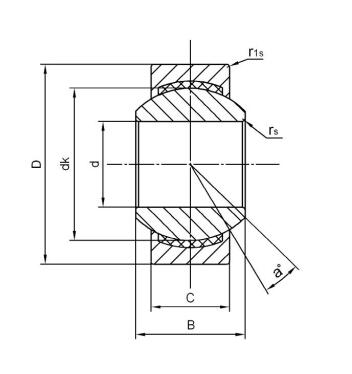

| 轴承型号 | 尺寸(mm) | 额定载荷 KN | a° ≈ | 重量 ≈kg | |||||||
| d | D | B | c | dk | rs | r1s | 动载 | 静载 | |||
| SGE5PW | 5 | 13 | 8 | 6 | 11.112 | 0.3 | 0.3 | 6 | 15 | 13 | 0.006 |
| SGE6PW | 6 | 16 | 9 | 6.75 | 12.7 | 0.3 | 0.3 | 7.65 | 19.3 | 13 | 0.010 |
| SGE8PW | 8 | 19 | 12 | 9 | 15.875 | 0.3 | 0.3 | 12.9 | 32 | 14 | 0.018 |
| SGE10PW | 10 | 22 | 14 | 10.5 | 19 05 | 0.3 | 0.3 | 18 | 45 | 13 | 0.027 |
| SGE12PW | 12 | 26 | 16 | 12 | 22.225 | 0.3 | 0.3 | 24 | 60 | 13 | 0.043 |
| SGE14PW | 14 | 28 | 19 | 13.5 | 25.4 | 0.3 | 0.3 | 31 | 76.5 | 16 | 0.055 |
| SGE16PW | 16 | 32 | 21 | 15 | 28.575 | 0.3 | 0.3 | 39 | 96.5 | 15 | 0.08 |
| SGE18PW | 18 | 35 | 23 | 16.5 | 31.75 | 0.3 | 0.3 | 47.5 | 118 | 15 | 0.10 |
| SGE20PW | 20 | 40 | 25 | 18 | 34.925 | 0.3 | 0.6 | 57 | 140 | 14 | 0.15 |
| SGE22PW | 22 | 42 | 28 | 20 | 38.1 | 0.3 | 0.6 | 68 | 170 | 15 | 0.18 |
| SGE25PW | 25 | 47 | 31 | 22 | 42.85 | 0.3 | 0.6 | 85 | 212 | 15 | 0.24 |
| SGE30PW | 30 | 55 | 37 | 25 | 50.8 | 0.3 | 0.6 | 114 | 285 | 17 | 0.38 |
