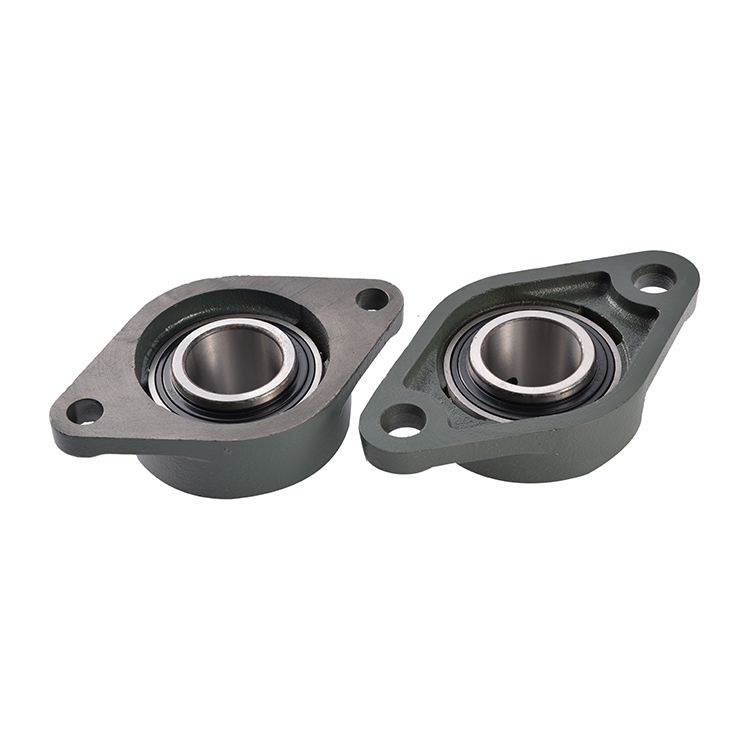

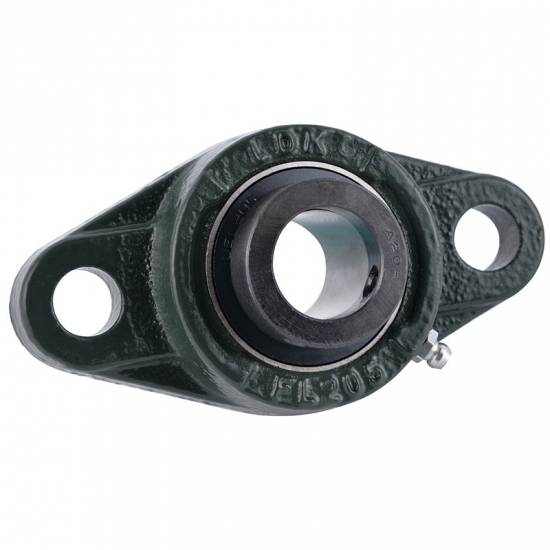

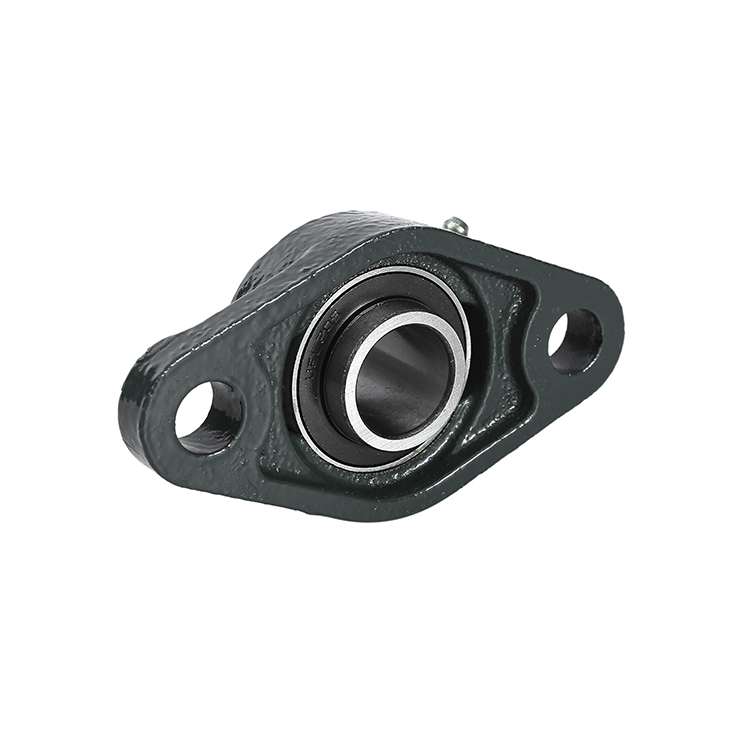

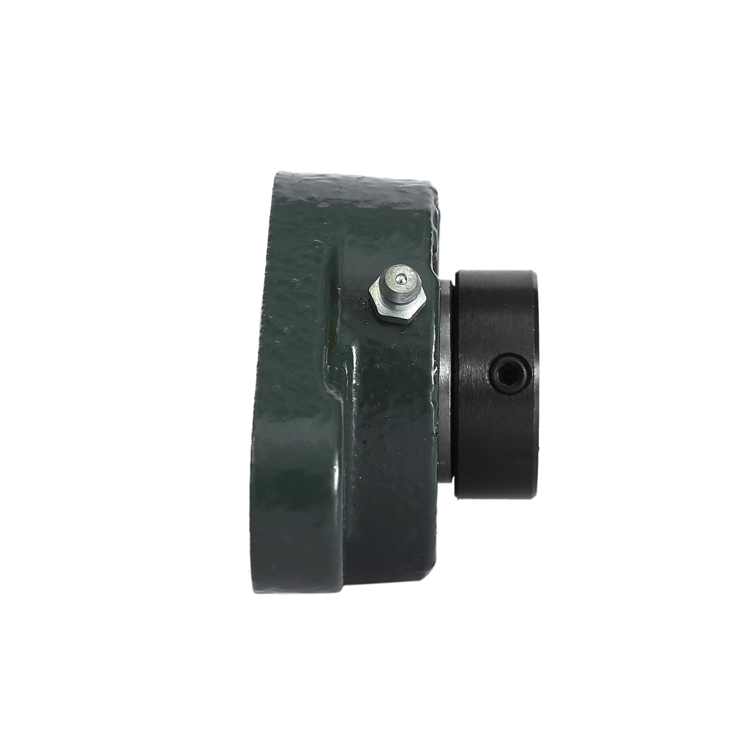

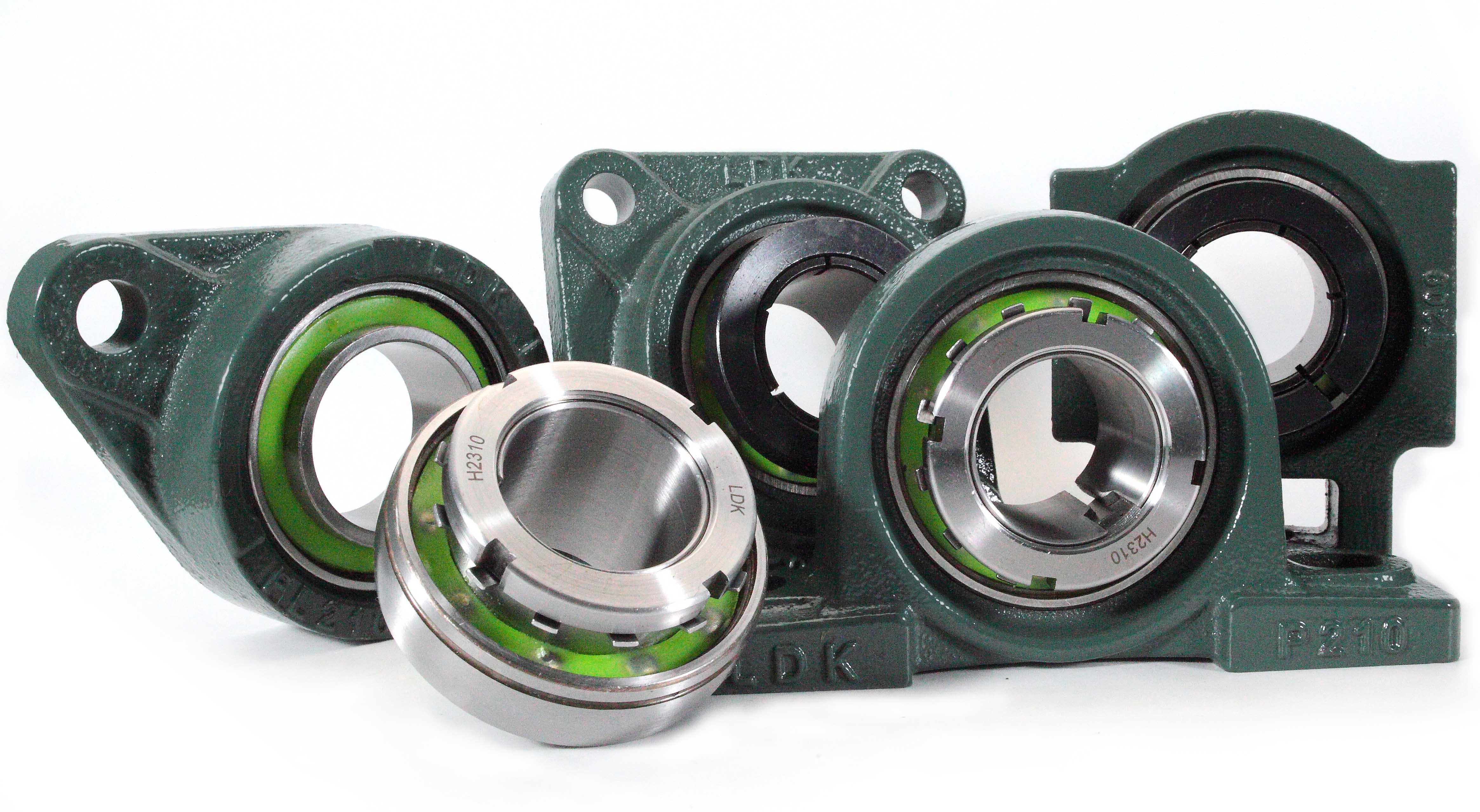

NAFL2 二孔菱形座

* 轴承座: 法兰座，2个螺栓孔,LDK品牌 (打字可定制)
* 轴承座材质:HT200 铸灰铁(可根据需要定制球墨铸铁材质)
* 油嘴: A3钢镀锌油嘴
* 喷漆: 墨绿色 (可根据需要定制其他喷漆颜色)
* 轴承座底部空心 (实心底可定制)
* 轴承：Gcr15(AISI52100)轴承钢材质，偏心套锁紧，标准载荷系列
* 轴承可按需添加高温/低温油脂，或者固体自润滑油脂

联系我们  PDF 下载

产品型号	轴径		尺寸 (mm)											螺栓尺寸	重量
	d		H	J	A2	A1	A	N	L	B1	s	z	F	螺栓尺寸	(kg)
	(in)	(mm)	H	J	A2	A1	A	N	L	B1	s	z	F	(mm)	(kg)
NAFL201S		12	97	76.5	15	11	25.5	11.5	55	37.3	13.9	38.2	-	M10	0.48
NAFL201-8S	1/2		97	76.5	15	11	25.5	11.5	55	37.3	13.9	38.2	-	M10	0.48
NAFL202S		15	97	76.5	15	11	25.5	11.5	55	37.3	13.9	38.2	-	M10	0.48
NAFL202-10S	5/8		97	76.5	15	11	25.5	11.5	55	37.3	13.9	38.2	-	M10	0.48
NAFL203S		17	97	76.5	15	11	25.5	11.5	55	37.3	13.9	38.2	-	M10	0.48
NAFL203-11S	11/16		97	76.5	15	11	25.5	11.5	55	37.3	13.9	38.2	-	M10	0.48
NAFL201		12	113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL201-8	1/2		113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL202		15	113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL202-10	5/8		113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL203		17	113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL203-11	11/16		113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL204		20	113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL204-12	3/4		113	90	15	11	25.5	12	60	43.7	17.1	41.6	32	M10	0.73
NAFL205		25	130	99	16	13	27	16	68	44.4	17.5	42.9	36	M14	0.80
NAFL205-14	7/8		130	99	16	13	27	16	68	44.4	17.5	42.9	36	M14	0.80
NAFL205-15	15/16		130	99	16	13	27	16	68	44.4	17.5	42.9	36	M14	0.80
NAFL205-16	1		130	99	16	13	27	16	68	44.4	17.5	42.9	36	M14	0.80
NAFL206		30	148	117	18	13	31	16	80	48.4	18.3	48.1	42	M14	1.2
NAFL206-17	1-1/16		148	117	18	13	31	16	80	48.4	18.3	48.1	42	M14	1.2
NAFL206-18	1-1/8		148	117	18	13	31	16	80	48.4	18.3	48.1	42	M14	1.2
NAFL206-19	1-3/16		148	117	18	13	31	16	80	48.4	18.3	48.1	42	M14	1.2
NAFL206-20	1-1/4		148	117	18	13	31	16	80	48.4	18.3	48.1	42	M14	1.2
NAFL207		35	160	130	19	15	34	16	90	51.1	18.8	51.3	50	M14	1.6
NAFL207-20	1-1/4		160	130	19	15	34	16	90	51.1	18.8	51.3	50	M14	1.6
NAFL207-21	1-5/16		160	130	19	15	34	16	90	51.1	18.8	51.3	50	M14	1.6
NAFL207-22	1-3/8		160	130	19	15	34	16	90	51.1	18.8	51.3	50	M14	1.6
NAFL207-23	1-7/16		160	130	19	15	34	16	90	51.1	18.8	51.3	50	M14	1.6
NAFL208		40	175	144	21	15	36	16	100	56.3	21.4	55.9	55	M14	1.9
NAFL208-24	1-1/2		175	144	21	15	36	16	100	56.3	21.4	55.9	55	M14	1.9
NAFL208-25	1-9/16		175	144	21	15	36	16	100	56.3	21.4	55.9	55	M14	1.9
NAFL209		45	188	148	22	16	38	19	108	56.3	21.4	56.9	60	M16	2.30
NAFL209-26	1-5/8		188	148	22	16	38	19	108	56.3	21.4	56.9	60	M16	2.30
NAFL209-27	1-11/16		188	148	22	16	38	19	108	56.3	21.4	56.9	60	M16	2.30
NAFL209-28	1-3/4		188	148	22	16	38	19	108	56.3	21.4	56.9	60	M16	2.30
NAFL210		50	197	157	22	16	40	19	115	62.7	24.6	60.1	64	M16	2.60
NAFL210-30	1-7/8		197	157	22	16	40	19	115	62.7	24.6	60.1	64	M16	2.60
NAFL210-31	1-15/16		197	157	22	16	40	19	115	62.7	24.6	60.1	64	M16	2.60
NAFL211		55	224	184	25	18	43	19	125	71.4	27.8	68.6	71	M16	3.80
NAFL211-32	2		224	184	25	18	43	19	125	71.4	27.8	68.6	71	M16	3.80
NAFL211-34	2-1/8		224	184	25	18	43	19	125	71.4	27.8	68.6	71	M16	3.80
NAFL211-35	2-3/16		224	184	25	18	43	19	125	71.4	27.8	68.6	71	M16	3.80
NAFL212		60	250	202	29	18	48	23	140	77.8	31	75.8	78	M20	4.80
NAFL212-36	2-1/4		250	202	29	18	48	23	140	77.8	31	75.8	78	M20	4.80
NAFL212-38	2-3/8		250	202	29	18	48	23	140	77.8	31	75.8	78	M20	4.80
NAFL212-39	2-7/16		250	202	29	18	48	23	140	77.8	31	75.8	78	M20	4.80
NAFL213		65	258	210	30	22	50	23	153	85.7	34.1	81.6	85	M20	6
NAFL213-40	2-1/2		258	210	30	22	50	23	153	85.7	34.1	81.6	85	M20	6
NAFL214		70	265	216	31	22	54	23	160	85.7	34.1	82.6	91	M20	6.3
NAFL214-44	2-3/4		265	216	31	22	54	23	160	85.7	34.1	82.6	91	M20	6.3
NAFL215		75	275	225	34	22	56	23	165	92.1	37.3	88.8	96	M20	7.2
NAFL215-48	3		275	225	34	22	56	23	165	92.1	37.3	88.8	96	M20	7.2

NAFL2 二孔菱形座

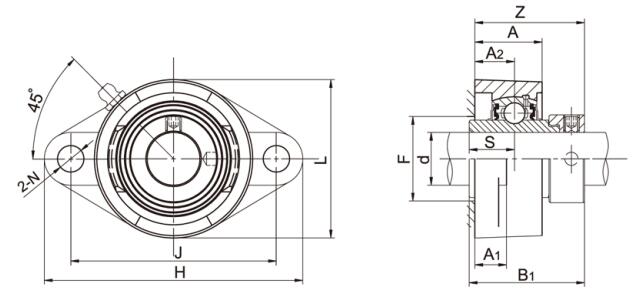

NAFL2 二孔菱形座结构图

NAFL2 二孔菱形座参数
