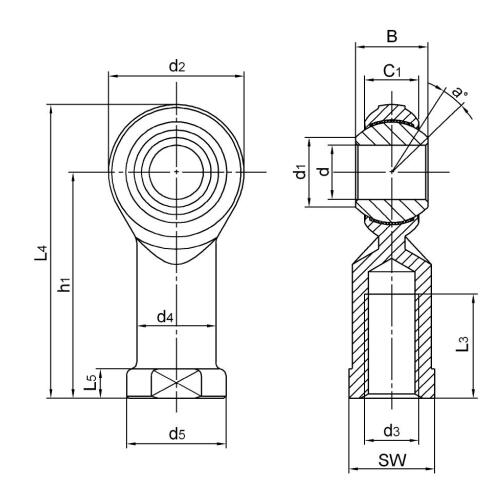

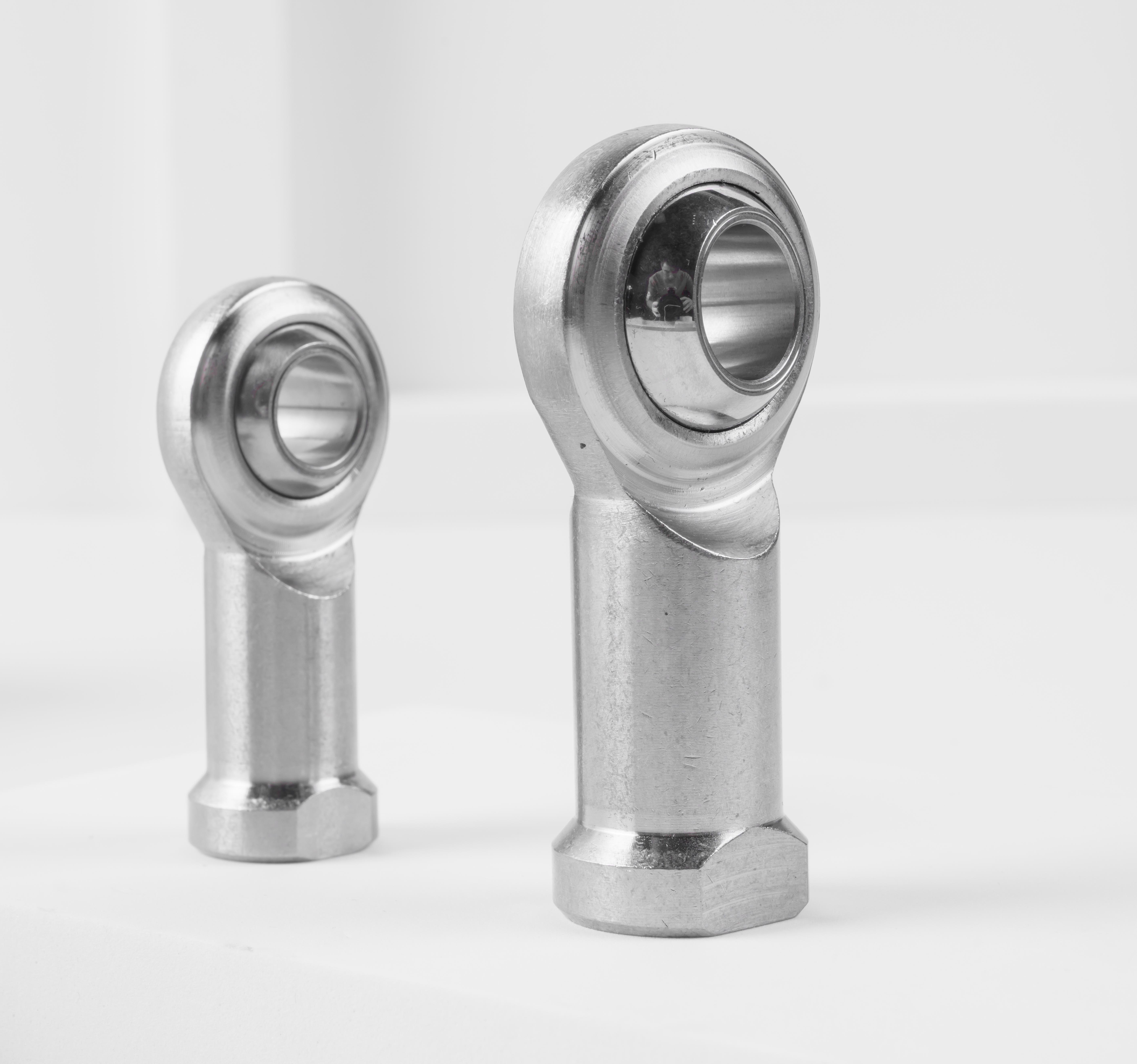

| 轴承型号 | 尺寸(mm) | 钢球直径 | a0 调心角度 | 载荷 (KN) | 重量 ≈Kg | |||||||||||||
d H7 | B | C1 | d1 | d2 | d3-6H | h1 | L3 | (L4) | L5 | d4 | d5 | sw | 动载 | 静载 | ||||
| PHS5EC | 5 | 8 | 6 | 7.7 | 16 | M5 | 27 | 11 | 35 | 4 | 9 | 11 | 9 | 11.11 | 13 | 3.3 | 6.2 | 0.016 |
| PHS6EC | 6 | 9 | 6.75 | 8.9 | 18 | M6 | 30 | 13 | 39 | 5 | 10 | 13 | 11 | 12.7 | 13 | 4.7 | 7.8 | 0.025 |
| PHS8EC | 8 | 12 | 9 | 10.3 | 22 | M8 | 36 | 16 | 47 | 5 | 12.5 | 16 | 14 | 15.87 | 14 | 7.7 | 13.2 | 0.043 |
| PHS10EC | 10 | 14 | 10.5 | 12.9 | 26 | M10 | 43 | 20 | 56 | 6.5 | 15 | 19 | 17 | 19.05 | 13 | 10.4 | 17.3 | 0.072 |
| PHS12EC | 12 | 16 | 12 | 15.4 | 30 | M12 | 50 | 23 | 65 | 6.5 | 17.5 | 22 | 19 | 22.22 | 13 | 13.5 | 22.7 | 0.107 |

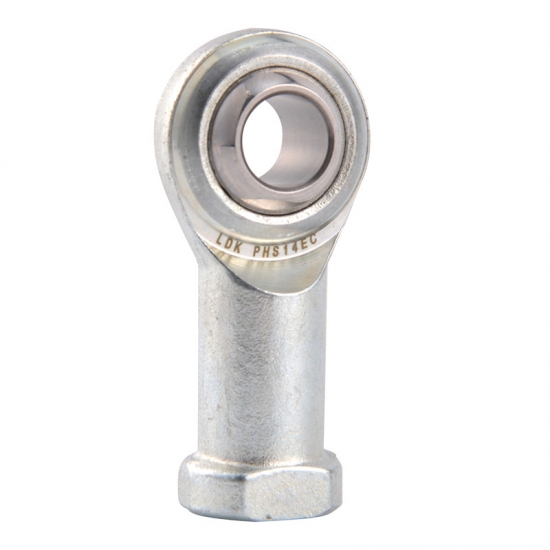

| PHS14EC | 14 | 19 | 13.5 | 16.8 | 34 | M14 | 57 | 27 | 74 | 8 | 20 | 25 | 22 | 25.4 | 16 | 17.2 | 28.2 | 0.160 |
| PHS16EC | 16 | 21 | 15 | 19.3 | 38 | M16 | 64 | 32 | 83 | 8 | 22 | 27 | 22 | 28.58 | 15 | 21 | 35.1 | 0.210 |
| PHS18EC | 18 | 23 | 16.5 | 21.8 | 42 | M18X1.5 | 71 | 35 | 92 | 10 | 25 | 31 | 27 | 31.75 | 15 | 25 | 43.2 | 0.295 |
| PHS20EC | 20 | 25 | 18 | 24.3 | 46 | M20X1.5 | 77 | 39 | 100 | 10 | 27.5 | 34 | 30 | 34.92 | 14 | 29.8 | 50.3 | 0.380 |
| PHS22EC | 22 | 28 | 20 | 25.8 | 50 | M22X1.5 | 84 | 42 | 109 | 12 | 30 | 37 | 32 | 38.1 | 15 | 36.2 | 63.9 | 0.490 |
说明：
*我司可承接不同螺距和螺纹精度的杆端生产.
*型号添加后缀"L"代表左旋，例如:PHS20ECL M20×1.5L-6H:
