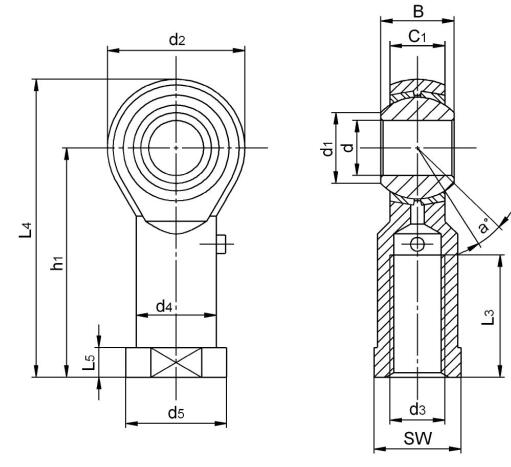

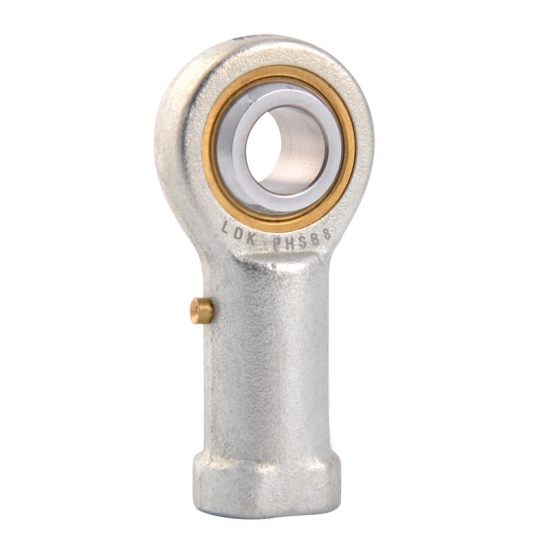

| 轴承型号 | 尺寸(mm) | 钢球直径 | a° 调心角度 | 载荷 (KN) | 重量 ≈ kg | |||||||||||||
d +0.038 -0.012 | B | C1 | d1 | d2 | d3 UNF-2B | h1 | L3 | (L4) | L5 | d4 | d5 | sw | 动载 Cr | 静载 Cor | ||||
| PHSB3 | 4.826 | 7.92 | 6.35 | 7.77 | 15.88 | 10-32 | 26.97 | 12.7 | 34.91 | 4.75 | 7.92 | 10.31 | 7.92 | 11.11 | 10 | 2.8 | 7.4 | 0.015 |
| PHSB4 | 6.35 | 9.53 | 7.14 | 8.39 | 19.05 | 1/4-28 | 33.32 | 17.45 | 42.85 | 4.75 | 9.52 | 11.89 | 9.53 | 12.7 | 13 | 4.8 | 11.2 | 0.025 |
| PHSB5 | 7.938 | 11.10 | 8.74 | 11.35 | 22.23 | 5/16-24 | 34.93 | 17.45 | 46.03 | 4.75 | 11.1 | 12.7 | 11.1 | 15.87 | 10 | 5.9 | 13.8 | 0.036 |
| PHSB6 | 9.525 | 12.7 | 10.31 | 13.13 | 25.4 | 3/8-24 | 41.28 | 20.62 | 53.98 | 6.35 | 14.27 | 17.45 | 14.27 | 18.26 | 9 | 8.2 | 18.2 | 0.061 |
| PHSB7 | 11.112 | 14.27 | 11.1 | 14.88 | 28.58 | 7/16-20 | 46.02 | 23.8 | 60.3 | 6.35 | 15.88 | 19.05 | 15.88 | 20.62 | 11 | 10 | 22 | 0.081 |
| PHSB8 | 12.7 | 15.88 | 12.7 | 17.73 | 33.32 | 1/2-20 | 53.98 | 26.97 | 70.64 | 6.35 | 19.05 | 22.22 | 19.05 | 23.8 | 9 | 15 | 31.7 | 0.133 |
| PHSB10 | 15.875 | 19.05 | 14.27 | 21.31 | 38.1 | 5/8-18 | 63.5 | 34.92 | 82.55 | 7.92 | 22.22 | 25.4 | 22.22 | 28.57 | 11 | 18 | 35.1 | 0.190 |
| PHSB12 | 19.05 | 22.23 | 17.45 | 24.84 | 44.45 | 3/4-16 | 73.03 | 39.67 | 95.25 | 7.92 | 25.4 | 28.58 | 25.4 | 33.33 | 10 | 27 | 49.6 | 0.285 |
| PHSB16 | 25.4 | 34.93 | 25.4 | 32.23 | 69.85 | 5/4-12 | 104.78 | 53.98 | 139.7 | 11.1 | 38.1 | 44.45 | 38.1 | 47.62 | 14 | 60 | 101 | 1.000 |
说明：
*我司可承接不同螺距和螺纹精度的杆端生产.
*型号添加后缀"L"代表左旋，例如:PHSB12L 3/4-16L
