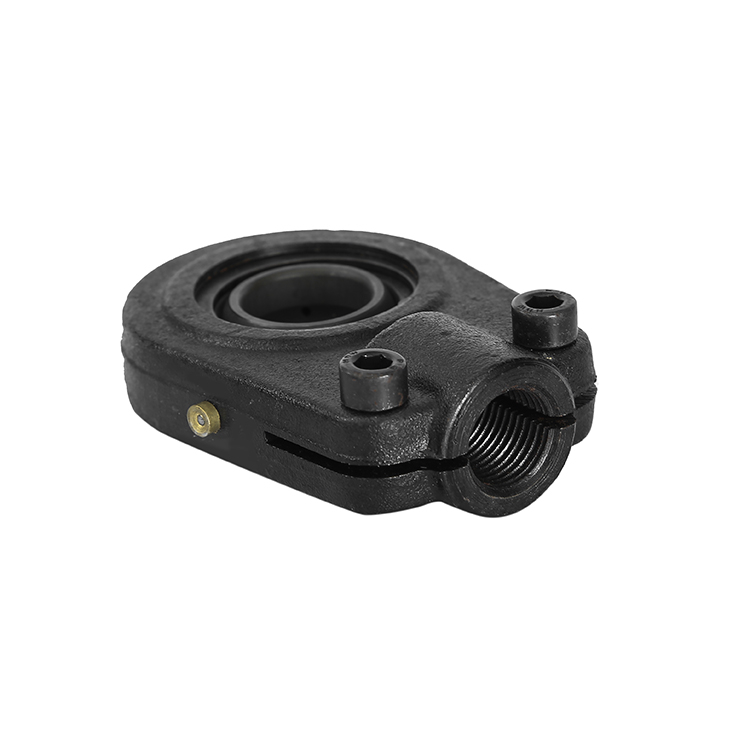

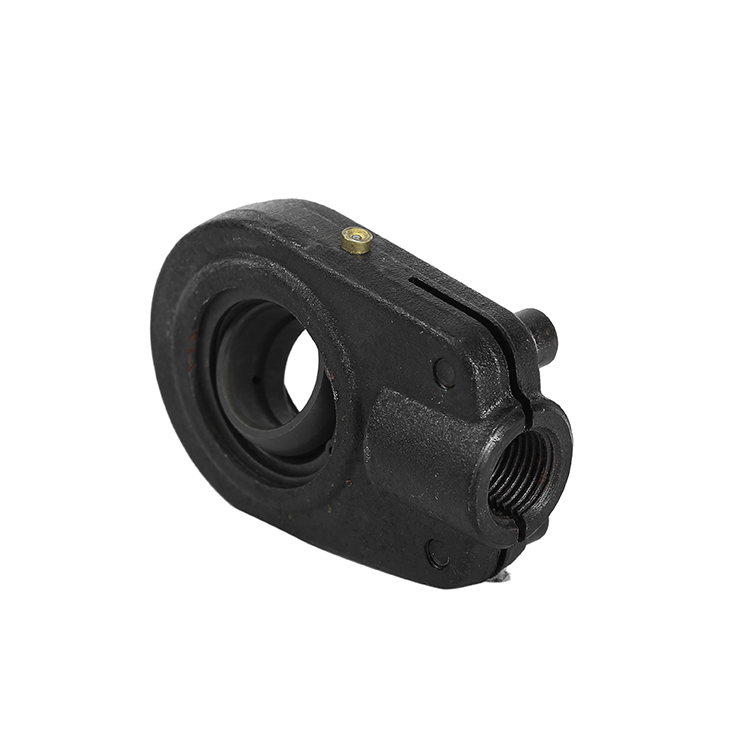

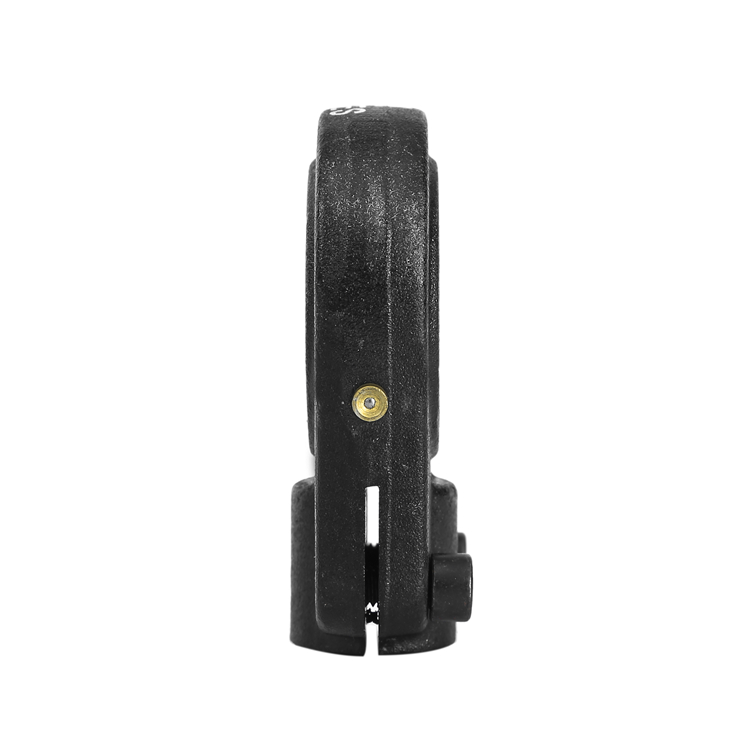

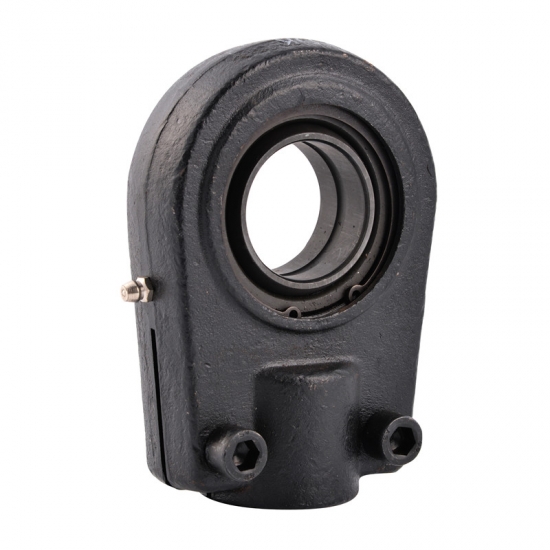

壳体: 中碳钢
SIR..ES: 装配GE..ES型的向心关节轴承
滑动磨擦副: 钢/钢
SIR..ES: 装配GE..ES型的向心关节轴承
滑动磨擦副: 钢/钢
| 轴承型号 | 尺寸(mm) | a° 调心角度 | 载荷 (KN) | 顶丝 | 重量 ≈ kg | |||||||||||||
| d | B | dk | C1 | d2 | G-6H | h1 | 13 | 14 | 17 | d4 | de | b | 动载 | 静载 | ||||

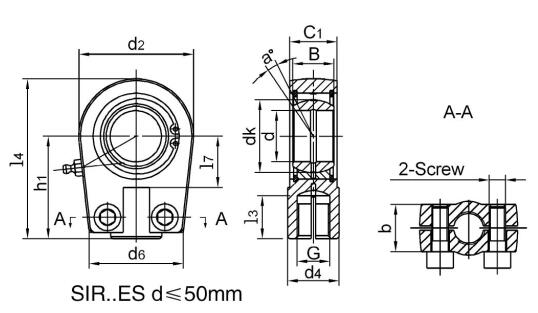

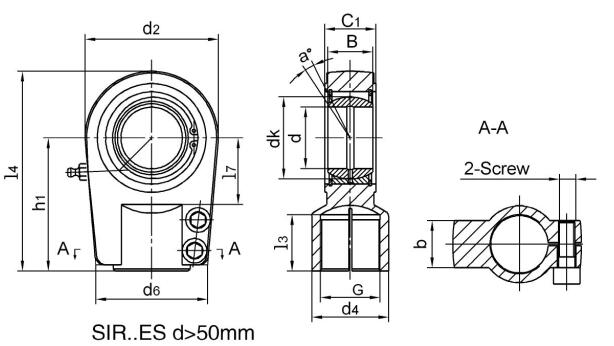

| SIR20ES | 20 | 16 | 29 | 19 | 56 | M16x1.5 | 50 | 17 | 78 | 25 | 25 | 46 | 17 | 9 | 30 | 81 | M8x16 | 0.44 |
| SIR25ES | 25 | 20 | 35.5 | 23 | 56 | M16X1.5 | 50 | 17 | 78 | 25 | 25 | 46 | 21 | 7 | 48 | 72 | M8x20 | 0.47 |
| SIR30ES | 30 | 22 | 40.7 | 28 | 64 | M22x1.5 | 60 | 23 | 92 | 30 | 32 | 50 | 26 | 6 | 62 | 106 | M8x25 | 0.77 |
| SIR35ES | 35 | 25 | 47 | 30 | 78 | M28X1.5 | 70 | 29 | 109 | 38 | 40 | 66 | 28 | 6 | 79 | 153 | M10x30 | 1.24 |
| SIR40ES | 40 | 28 | 53 | 35 | 94 | M35x1.5 | 85 | 36 | 132 | 45 | 49 | 76 | 33 | 7 | 99 | 250 | M10x35 | 2.12 |
| SIR50ES | 50 | 35 | 66 | 40 | 116 | M45x1.5 | 105 | 46 | 163 | 55 | 61 | 90 | 37 | 7 | 156 | 365 | M12x40 | 3.74 |
| SIR60ES | 60 | 44 | 80 | 50 | 130 | M58x1.5 | 130 | 59 | 195 | 65 | 75 | 120 | 46 | 6 | 245 | 400 | M16x45 | 6.49 |
| SIR70ES | 70 | 49 | 92 | 55 | 154 | M65x1.5 | 150 | 66 | 227 | 75 | 86 | 130 | 51 | 6 | 313 | 540 | M16x50 | 9.88 |
| SIR80ES | 80 | 55 | 105 | 60 | 176 | M80x2 | 170 | 81 | 258 | 80 | 105 | 160 | 55 | 6 | 400 | 670 | M20x55 | 14.2 |
| SIR90ES | 90 | 60 | 115 | 65 | 206 | M100x2 | 210 | 101 | 313 | 90 | 124 | 180 | 60 | 5 | 488 | 980 | M20x60 | 20.0 |
| SIR100ES | 100 | 70 | 130 | 70 | 231 | M110x2 | 235 | 111 | 350.5 | 105 | 138 | 200 | 65 | 7 | 607 | 1120 | M24x65 | 27.5 |
| SIR110ES | 110 | 70 | 140 | 80 | 266 | M120x3 | 265 | 125 | 398 | 115 | 152 | 220 | 74 | 6 | 654 | 1700 | M24x80 | 45.6 |
| SIR120ES | 120 | 85 | 160 | 90 | 340 | M130x3 | 310 | 135 | 480 | 140 | 172 | 257 | 84 | 6 | 950 | 2900 | M27x85 | 72 |
说明：
可提供装有自润滑向心关节的油缸耳环
型号及螺纹添加后缀"L"代表左旋，例如:SILR40ES M35×1.5L-6H
