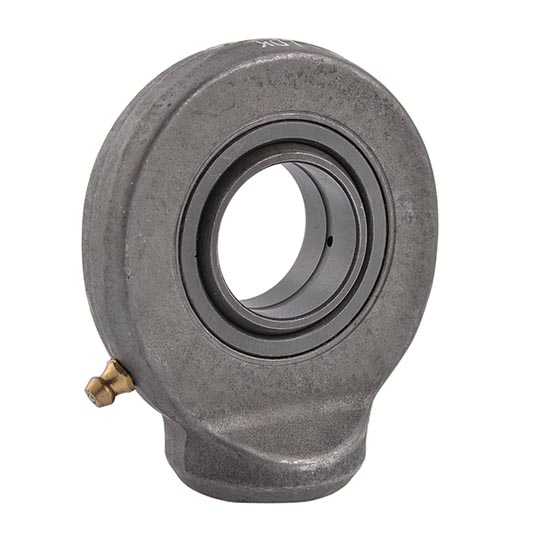

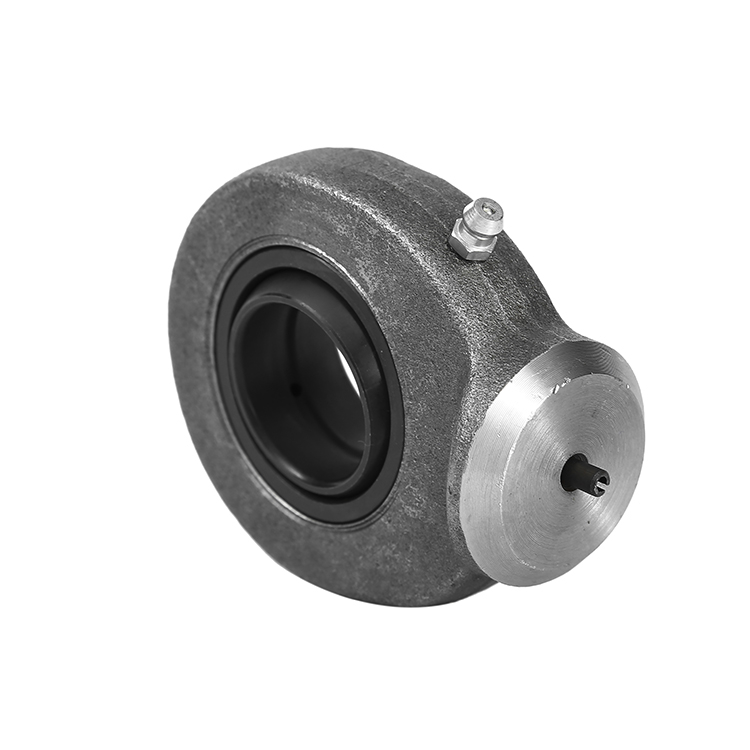

壳体: 焊接钢,带有销钉
SK..E: 装配GE..E型的向心关节轴承
SK..ES: 装配GE..ES型的向心关节轴承
滑动磨擦副: 钢/钢
SK..E: 装配GE..E型的向心关节轴承
SK..ES: 装配GE..ES型的向心关节轴承
滑动磨擦副: 钢/钢

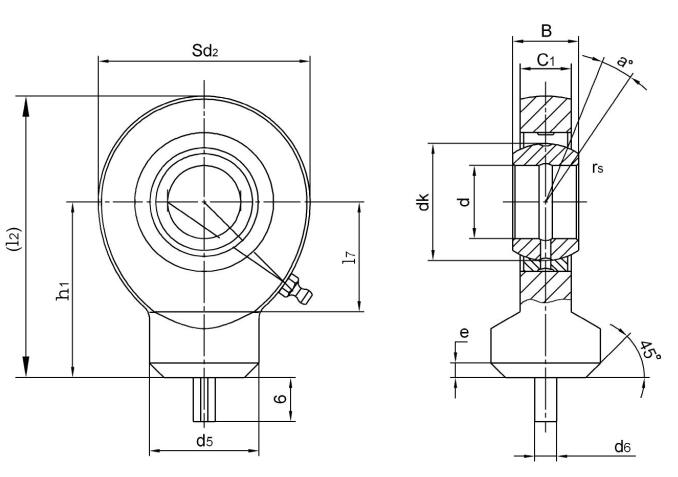

| 轴承型号 | 尺寸(mm) | a° 调心角度 | 载荷 (KN) | 重量 ≈kg | |||||||||||
| d | B | dk | C1 | d2 | d5 | d6 | h1 | e | l7 | (l2) | 动载 | 静载 | |||
| SK10E 1) | 10 | 9 | 16 | 7 | 29 | 15 | 3 | 24 | 2 | 15 | 38.5 | 12 | 8.1 | 15 | 0.041 |
| SK12E 1) | 12 | 10 | 18 | 8 | 34 | 17.5 | 3 | 27 | 2 | 18 | 44 | 10 | 10 | 21 | 0.066 |
| SK15ES2) | 15 | 12 | 22 | 10 | 40 | 21 | 4 | 31 | 2.5 | 20 | 51 | 8 | 16 | 32 | 0.12 |
| SK17ES 2) | 17 | 14 | 25 | 11 | 46 | 24 | 4 | 35 | 2.5 | 23 | 58 | 10 | 21 | 40 | 0.19 |
| SK20ES | 20 | 16 | 29 | 13 | 53 | 27.5 | 4 | 38 | 2.5 | 27 | 64.5 | 9 | 30 | 54 | 0.26 |
| SK25ES | 25 | 20 | 35.5 | 17 | 64 | 33.5 | 4 | 45 | 3 | 32 | 77 | 7 | 48 | 72 | 0.45 |
| SK30ES | 30 | 22 | 40.7 | 19 | 73 | 40 | 4 | 51 | 3 | 37 | 87.5 | 6 | 62 | 95 | 0.067 |
| SK35ES | 35 | 25 | 47 | 21 | 82 | 47 | 4 | 61 | 3 | 42 | 102 | 6 | 79 | 125 | 1.02 |
| SK40ES | 40 | 28 | 53 | 23 | 92 | 52 | 4 | 69 | 4 | 48 | 115 | 7 | 99 | 156 | 1.04 |
| SK45ES | 45 | 32 | 60 | 27 | 102 | 58 | 6 | 77 | 5 | 52 | 128 | 7 | 127 | 208 | 1.93 |
| SK50ES | 50 | 35 | 66 | 30 | 112 | 62 | 6 | 88 | 5 | 60 | 144 | 6 | 156 | 250 | 2.68 |
| SK60ES | 60 | 44 | 80 | 38 | 135 | 70 | 6 | 100 | 5 | 75 | 167.5 | 6 | 245 | 390 | 4.6 |
| SK70ES | 70 | 49 | 92 | 42 | 160 | 80 | 6 | 115 | 6 | 87 | 195 | 6 | 313 | 510 | 7.0 |
| SK80ES | 80 | 55 | 105 | 47 | 180 | 95 | 6 | 141 | 6 | 100 | 231 | 6 | 400 | 620 | 11.0 |
说明：
1)无法再润滑
2)只能通过杆端壳体实现再润滑
