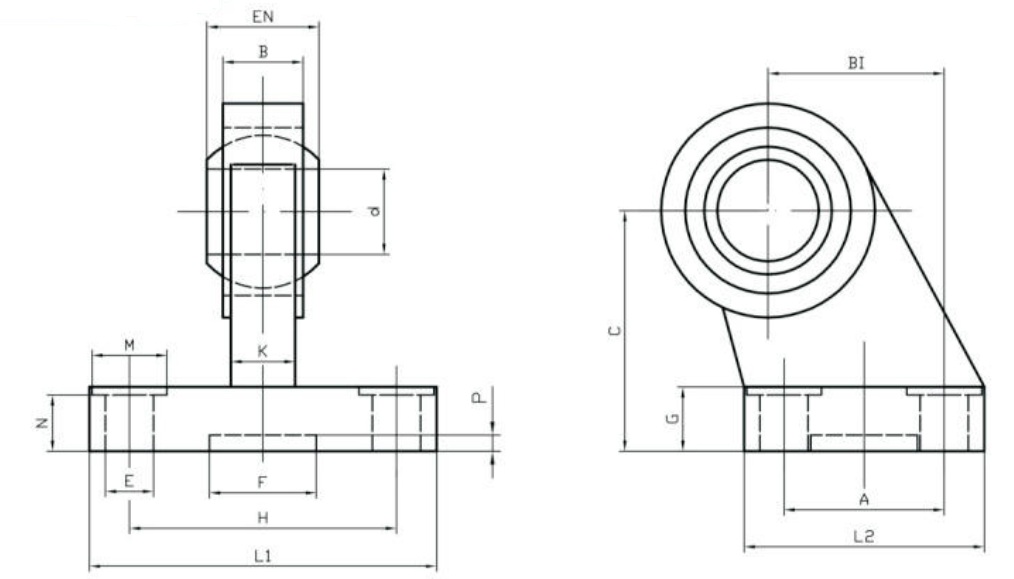

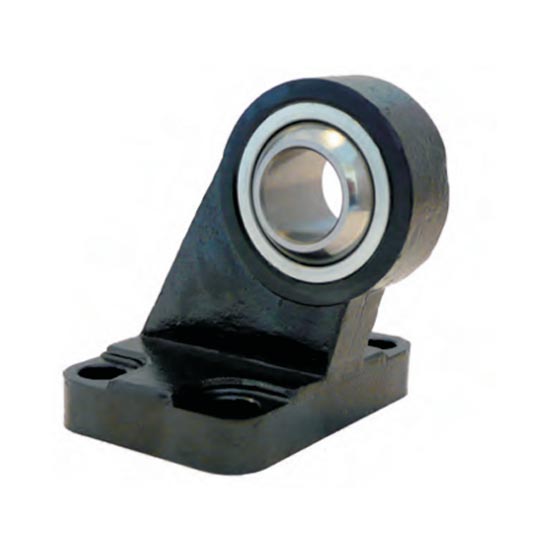

MP8 Square Joint DIN648K
轴承型号 | 尺寸(mm) | 重量 ≈kg | ||||||||||||||||
d H7 | A JS14 | B max | C JS15 | EN | ER max | F H13 | G | E H13 | L1 | M H13 | N 0～+0.5 | P | L2 max | BI JS15 | H JS15 | K | ||
| MP8-32 | 10 | 18 | 10.5 | 32 | 14 | 15 | 20 | 10 | 6.6 | 51 | 11 | 8.5 | 3 | 31 | 21 | 38 | 8.5 | 0.178 |
| MP8-40 | 12 | 22 | 12 | 36 | 16 | 18 | 20 | 10 | 6.6 | 54 | 11 | 8.5 | 3 | 35 | 24 | 41 | 10 | 0.268 |
| MP8-50 | 16 | 30 | 15 | 45 | 21 | 20 | 20 | 12 | 9 | 65 | 15 | 10.5 | 3 | 45 | 33 | 50 | 12 | 0.458 |
| MP8-63 | 16 | 35 | 15 | 50 | 21 | 23 | 20 | 12 | 9 | 67 | 15 | 10.5 | 3 | 50 | 37 | 52 | 12 | 0.550 |
| MP8-80 | 20 | 40 | 18 | 63 | 25 | 27 | 20 | 14 | 11 | 86 | 18 | 11.5 | 3 | 60 | 47 | 66 | 14.5 | 0.970 |
| MP8-100 | 20 | 50 | 18 | 71 | 25 | 30 | 20 | 15 | 11 | 96 | 18 | 12.5 | 3 | 70 | 55 | 76 | 14.5 | 1.326 |
| MP8-125 | 30 | 60 | 25 | 90 | 37 | 40 | 20 | 20 | 13.5 | 124 | 20 | 17 | 3 | 90 | 70 | 94 | 20 | 3.000 |
