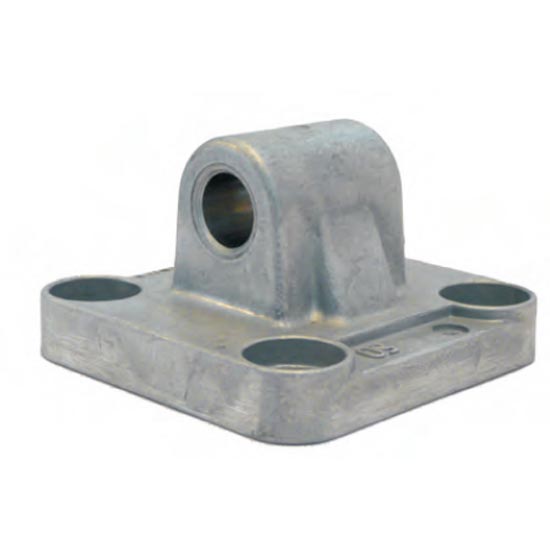

MP4 Square Joint DIN648K

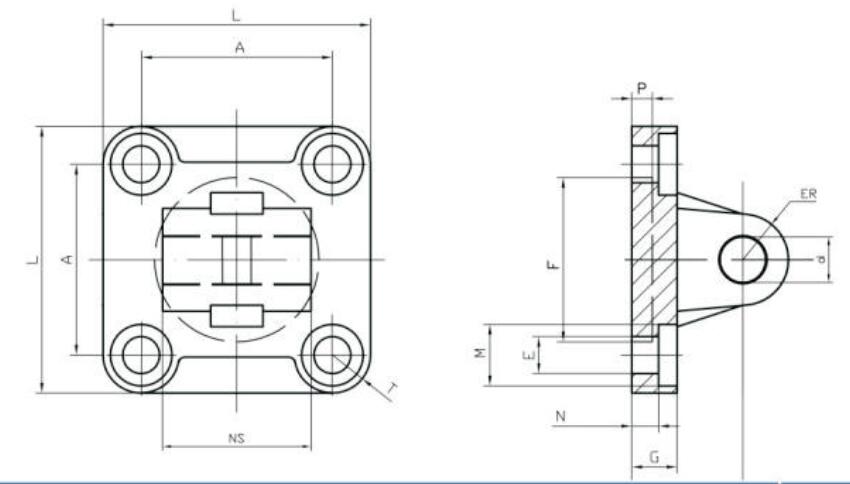

轴承型号 | 尺寸(mm) | 重量 ≈kg | ||||||||||||
d H9 | A ±0.2 | C ±0.2 | NS 0 -0.2 | ER max | F H11 | G ±0.5 | E H14 | L | M H14 | N ±0.5 | P +0.5 0 | T | ||
| MP4-32 | 10 | 32.5 | 22 | 25.8 | 10 | 30 | 9 | 6.6 | 45 | 11 | 5.5 | 5 | 6.25 | 0.054 |
| MP4-40 | 12 | 38 | 25 | 27.8 | 12 | 35 | 9 | 6.6 | 52 | 11 | 5.5 | 5 | 8.5 | 0.082 |
| MP4-50 | 12 | 46.5 | 27 | 31.7 | 12 | 40 | 11 | 9 | 65 | 15 | 6.5 | 5 | 9.25 | 0.132 |
| MP4-63 | 16 | 56.5 | 32 | 39.7 | 16 | 45 | 11 | 9 | 75 | 15 | 6.5 | 5 | 9.25 | 0.214 |
| MP4-80 | 16 | 72 | 36 | 46.7 | 16 | 45 | 14 | 11 | 95 | 18 | 10 | 5 | 11.5 | 0.424 |
| MP4-100 | 20 | 89 | 41 | 59.7 | 20 | 55 | 14 | 11 | 115 | 18 | 10 | 5 | 13 | 0.689 |
| MP4-125 | 25 | 110 | 50 | 69.7 | 25 | 60 | 20 | 14 | 140 | 20 | 10 | 7 | 15 | 1.300 |
| MP4-160 | 30 | 140 | 55 | 89.7 | 25 | 65 | 20 | 18 | 180 | 26 | 10 | 7 | 20 | 1.950 |
| MP4-200 | 30 | 175 | 60 | 89.7 | 25 | 75 | 25 | 18 | 220 | 26 | 11 | 7 | 22.5 | 2.950 |
