钢球：Gcr15轴承钢，热处理，HRC58-64°，并经过精磨，表面镀硬铬处理
外圈：碳钢并垫有PTFE复合物
滑动摩擦副：钢/PTFE复合物
外圈：碳钢并垫有PTFE复合物
滑动摩擦副：钢/PTFE复合物

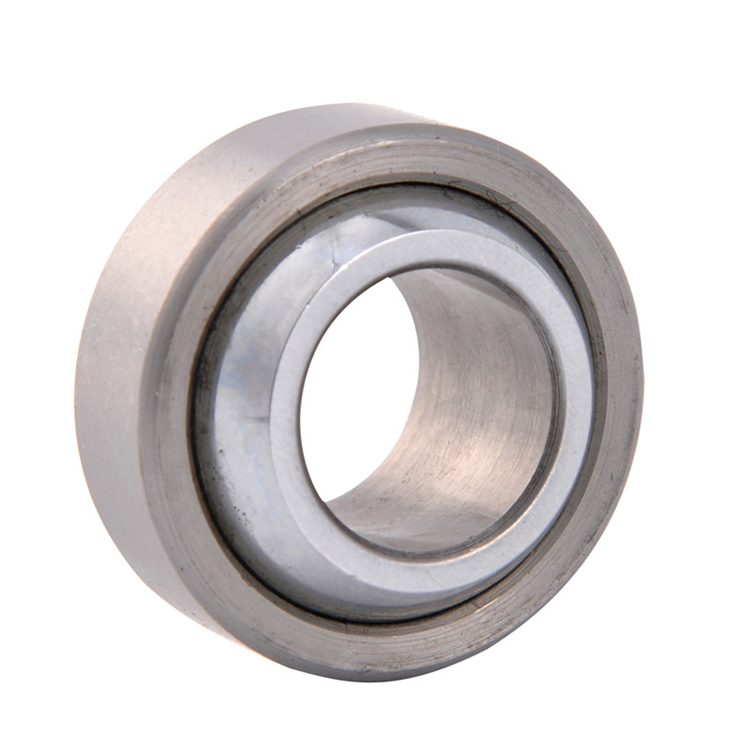

| 轴承型号 | 尺寸(mm) | 额定载荷 KN | a° ≈ | 重量 ≈kg | |||||||

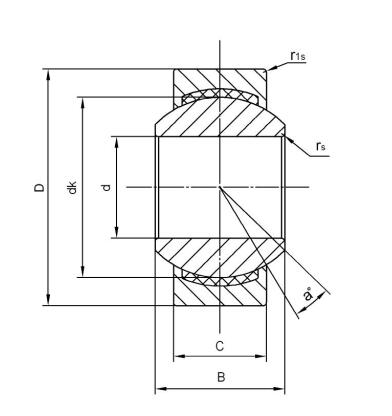

| d | D | B | c | dk | rs | r1s min | 动载 | 静载 | |||
| GEG4C | 4 | 14 | 7 | 4 | 10 | 0.3 | 0.3 | 3.6 | 9.1 | 20 | 0.005 |
| GEG5C | 5 | 16 | 9 | 5 | 13 | 0.3 | 0.3 | 5.8 | 14 | 21 | 0.008 |
| GEG6C | 6 | 16 | 9 | 5 | 13 | 0.3 | 0.3 | 5.8 | 14 | 21 | 0.006 |
| GEG8C | 8 | 19 | 11 | 6 | 16 | 0.3 | 0.3 | 8.6 | 21 | 21 | 0.014 |
| GEG10C | 10 | 22 | 12 | 7 | 18 | 0.3 | 0.3 | 11 | 28 | 18 | 0.021 |
| GEG12C | 12 | 26 | 15 | 9 | 22 | 0.3 | 0.3 | 18 | 45 | 18 | 0.033 |
| GEG15C | 15 | 30 | 16 | 10 | 25 | 0.3 | 0.3 | 22 | 56 | 16 | 0.049 |
| GEG17C | 17 | 35 | 20 | 12 | 29 | 0.3 | 0.3 | 31 | 78 | 19 | 0.083 |
| GEG20C | 20 | 42 | 25 | 16 | 35.5 | 0.3 | 0.3 | 51 | 127 | 17 | 0.153 |
| GEG25C | 25 | 47 | 28 | 18 | 40.7 | 0.6 | 0.6 | 65 | 166 | 17 | 0.203 |
| GEG30C | 30 | 55 | 32 | 20 | 47 | 0.6 | 0.6 | 83 | 212 | 17 | 0.304 |

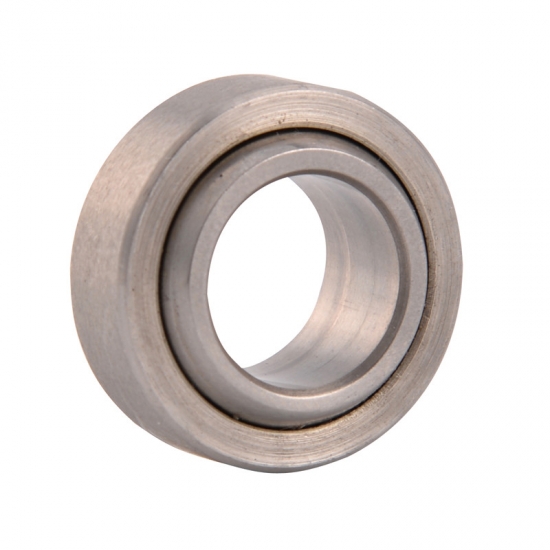

| 轴承型号 | 尺寸(mm) | 额定载荷 KN | a° ≈ | 重量 ≈kg | |||||||
| d | D | B | c | dk | rs | r1s min | 动载 | 静载 | |||
| GE4C | 4 | 12 | 5 | 3 | 8 | 0.3 | 0.3 | 2.1 | 5.4 | 16 | 0.003 |
| GE5C | 5 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 3.6 | 9.1 | 13 | 0.005 |
| GE6C | 6 | 14 | 6 | 4 | 10 | 0.3 | 0.3 | 3.6 | 9.1 | 13 | 0.004 |
| GE8C | 8 | 16 | 8 | 5 | 13 | 0.3 | 0.3 | 5.8 | 14 | 15 | 0.008 |
| GE10C | 10 | 19 | 9 | 6 | 16 | 0.3 | 0.3 | 8.6 | 21 | 12 | 0.011 |
| GE12C | 12 | 22 | 10 | 7 | 18 | 0.3 | 0.3 | 11 | 28 | 10 | 0.015 |
| GE15C | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 18 | 45 | 8 | 0.027 |
| GE17C | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 22 | 56 | 10 | 0.041 |
| GE20C | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 31 | 78 | 9 | 0.066 |
| GE25C | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 51 | 127 | 7 | 0.119 |
| GE30C | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 65 | 166 | 6 | 0.163 |
