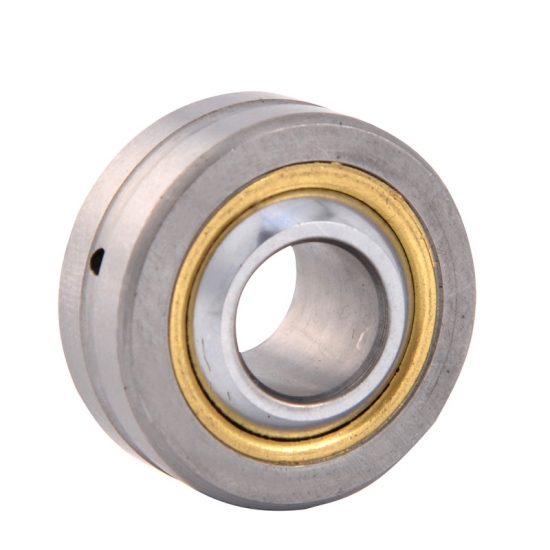

钢球：Gcr15轴承钢，热处理，HRC58-64°，并经过精磨，表面镀硬铬处理
衬套：黄铜
外圈：碳钢
滑动摩擦副：钢/黄铜
衬套：黄铜
外圈：碳钢
滑动摩擦副：钢/黄铜

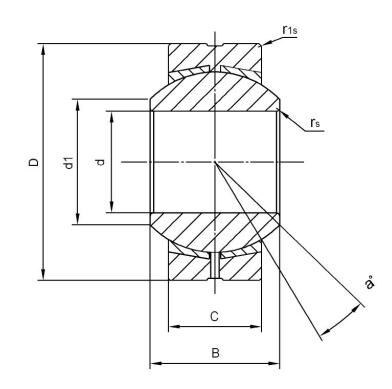

| 轴承型号 | 尺寸(mm) | 额定载荷 KN | a° ≈ | 重量 ≈kg | |||||||
| d | D | B | c | dk | rs | r1s | 动载 | 静载 | |||
| GEBK5S | 5 | 16 | 8 | 6 | 11.112 | 0.3 | 0.3 | 3.3 | 7.8 | 13 | 0.009 |
| GEBK6S | 6 | 18 | 9 | 6.75 | 12.7 | 0.3 | 0.3 | 4.3 | 9.8 | 13 | 0.013 |
| GEBK8S | 8 | 22 | 12 | 9 | 15.88 | 0.3 | 0.3 | 6.8 | 16 | 14 | 0.024 |
| GEBK10S | 10 | 26 | 14 | 10.5 | 19.05 | 0.3 | 0.6 | 10 | 23 | 14 | 0.039 |
| GEBK12S | 12 | 30 | 16 | 12 | 22.23 | 0.3 | 0.6 | 13 | 31 | 13 | 0.058 |
| GEBK14S | 14 | 34 | 19 | 13.5 | 25.4 | 0.3 | 0.6 | 17 | 40 | 16 | 0.084 |
| GEBK16S | 16 | 38 | 21 | 15 | 28.58 | 0.3 | 0.6 | 21 | 50 | 15 | 0.111 |
| GEBK18S | 18 | 42 | 23 | 16.5 | 31.75 | 0.6 | 0.6 | 26 | 61 | 15 | 0.16 |
| GEBK20S | 20 | 46 | 25 | 18 | 34.93 | 0.6 | 0.6 | 31 | 73 | 15 | 0.21 |
| GEBK22S | 22 | 50 | 28 | 20 | 38.1 | 0.6 | 0.6 | 38 | 88 | 15 | 0.26 |
| GEBK25S | 25 | 56 | 31 | 22 | 42.86 | 0.6 | 0.6 | 47 | 110 | 15 | 0.39 |
| GEBK28S | 28 | 62 | 35 | 25 | 47.63 | 0.6 | 0.6 | 59 | 138 | 15 | 0.53 |
| GEBK30S | 30 | 66 | 37 | 25 | 50.8 | 0.6 | 0.6 | 63 | 148 | 17 | 0.61 |
