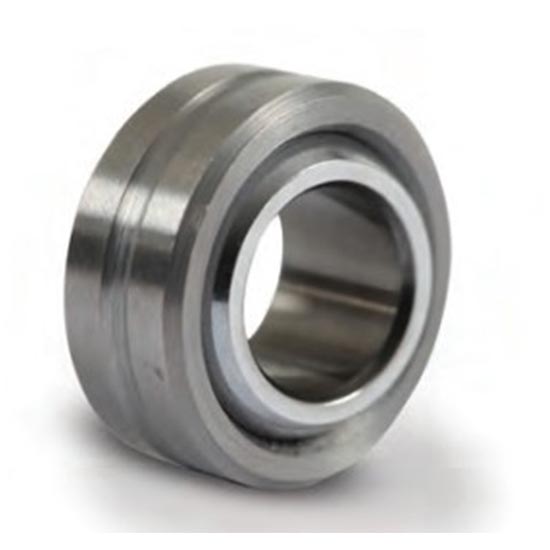

内圈：440C不锈钢，热处理，精磨
外圈：304不锈钢，并垫有PTFE编织物衬垫
滑动摩擦副：钢/PTFE编织物
外圈：304不锈钢，并垫有PTFE编织物衬垫
滑动摩擦副：钢/PTFE编织物

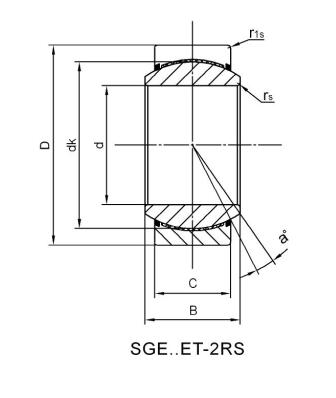

| 轴承型号 | 尺寸(mm) | 额定载荷 KN | a° ≈ | 重量 ≈kg | |||||||
| d | D | B | c | dk | rs | r1s | 动载 | 静载 | |||
| SGE15ET-2RS | 15 | 26 | 12 | 9 | 22 | 0.3 | 0.3 | 25 | 50 | 8 | 0.027 |
| SGE17ET-2RS | 17 | 30 | 14 | 10 | 25 | 0.3 | 0.3 | 32 | 64 | 10 | 0.041 |
| SGE20ET-2RS | 20 | 35 | 16 | 12 | 29 | 0.3 | 0.3 | 45 | 90 | 9 | 0.066 |
| SGE25ET-2RS | 25 | 42 | 20 | 16 | 35.5 | 0.6 | 0.6 | 85 | 170 | 7 | 0.119 |
| SGE30ET-2RS | 30 | 47 | 22 | 18 | 40.7 | 0.6 | 0.6 | 110 | 220 | 6 | 0.153 |
| SGE35ET-2RS | 35 | 55 | 25 | 20 | 47 | 0.6 | 1 | 140 | 280 | 6 | 0.233 |
| SGE40ET-2RS | 40 | 62 | 28 | 22 | 53 | 0.6 | 1 | 175 | 350 | 7 | 0.306 |
| SGE45ET-2RS | 45 | 68 | 32 | 25 | 60 | 0.6 | 1 | 225 | 450 | 7 | 0.427 |
| SGE50ET-2RS | 50 | 75 | 35 | 28 | 66 | 0.6 | 1 | 275 | 550 | 6 | 0.546 |
| SGE55ET-2RS | 55 | 85 | 40 | 32 | 74 | 0.6 | 1 | 355 | 710 | 7 | 0.939 |
| SGE60ET-2RS | 60 | 90 | 44 | 36 | 80 | 1 | 1 | 430 | 860 | 6 | 1.04 |
