钢球：
·440C不锈钢
·热处理
·表面镀硬铬处理
·精磨
外圈：
·300系列不锈钢
·440C不锈钢
·热处理
·表面镀硬铬处理
·精磨
外圈：
·300系列不锈钢

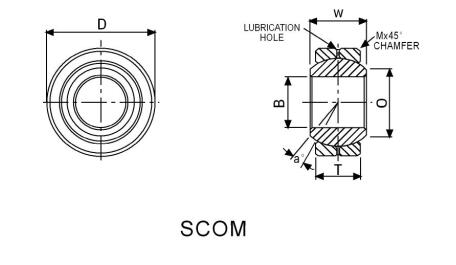

| 轴承型号 | 尺寸 IN INCHES | |||||||||
钢对钢 | B +.0015 -.0005 | D +.0000 -.0007 | T ±.005 | W ±.005 | 0 端面 直径 | M 倒角 | 钢球 直径 | 调心角度 a° | 极限静态 载荷 Lbs. | 估重 Lbs. |
| SCOM2 | 0.1650 | 0.4687 | 0.187 | 0.250 | 0.235 | 0.020 | 0.343 | 9.0 | 3,200 | 0.01 |
| SCOM3 | 0.1900 | 0.5625 | 0.218 | 0.281 | 0.293 | 0.020 | 0.406 | 11.0 | 4.400 | 0.01 |
| SCOM4 | 0.2500 | 0.6562 | 0.250 | 0.343 | 0.364 | 0.022 | 0.500 | 13.5 | 6,700 | 0.02 |
| SCOM5 | 0.3125 | 0.7500 | 0.281 | 0.375 | 0.419 | 0.032 | 0.562 | 12.0 | 9.200 | 0.03 |
| SCOM6 | 0.3750 | 0.8125 | 0.312 | 0.406 | 0.516 | 0.032 | 0.656 | 10.0 | 12,400 | 0.04 |
| SCOM7 | 0.4375 | 0.9062 | 0.343 | 0.437 | 0.530 | 0.032 | 0.718 | 8.0 | 14,900 | 0.05 |
| SCOM8 | 0.5000 | 1.0000 | 0.390 | 0.500 | 0.640 | 0.032 | 0.813 | 9.5 | 17,900 | 0.07 |
| SCOM9 | 0.5625 | 1.0937 | 0.437 | 0.562 | 0.710 | 0.032 | 0.906 | 9.5 | 23,700 | 0.09 |
| SCOM10 | 0.6250 | 1.1875 | 0.500 | 0.625 | 0.780 | 0.032 | 1.000 | 8.5 | 32,000 | 0.11 |
| SCOM12 | 0.7500 | 1.4375 | 0.593 | 0.750 | 0.920 | 0.044 | 1.187 | 9.0 | 48,000 | 0.20 |
| SCOM14 | 0.8750 | 1.5625 | 0.703 | 0.875 | 0.980 | 0.044 | 1.312 | 9.5 | 69,000 | 0.26 |
| SCOM16 | 1.0000 | 1.7500 | 0.797 | 1.000 | 1.118 | 0.044 | 1.500 | 10.0 | 83,000 | 0.39 |
