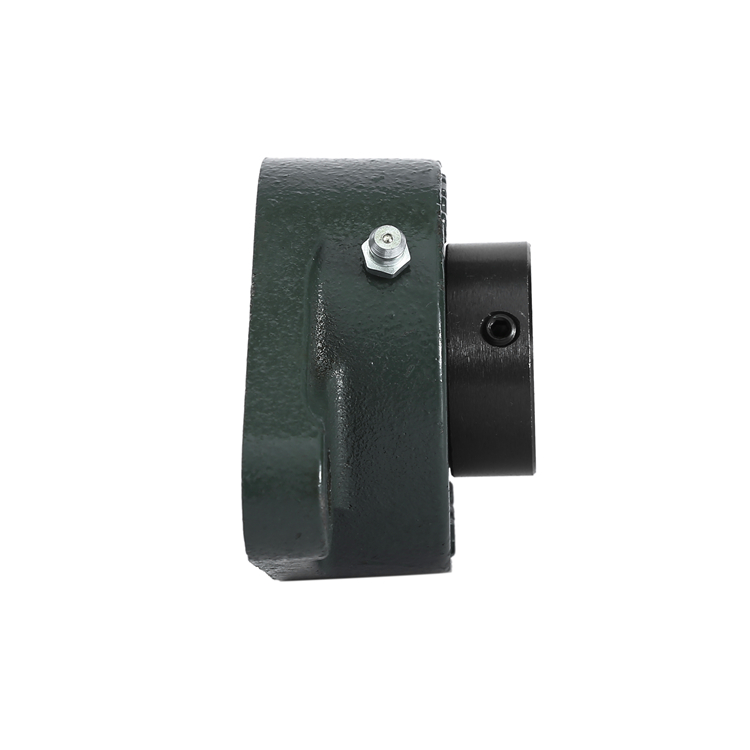

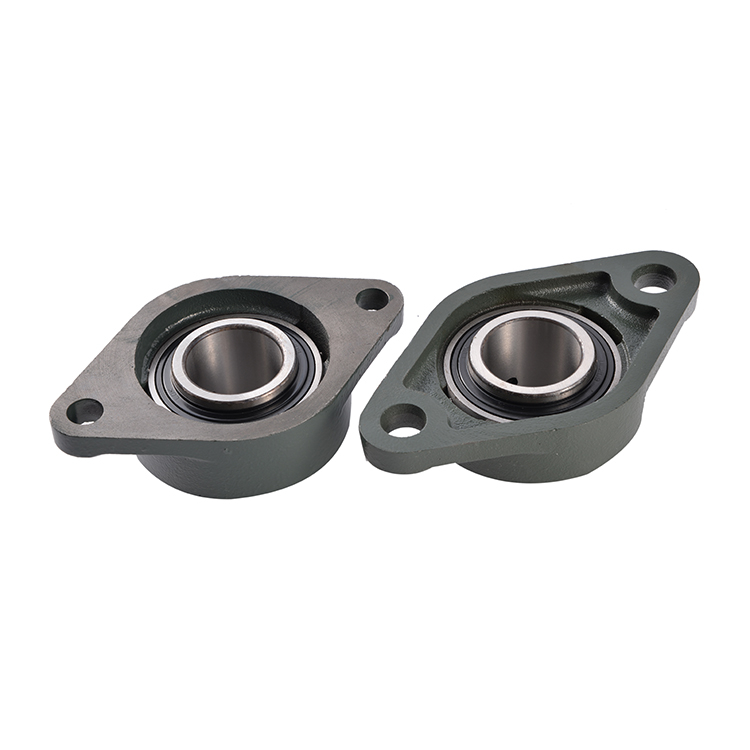

NAFLU2 二孔菱形座

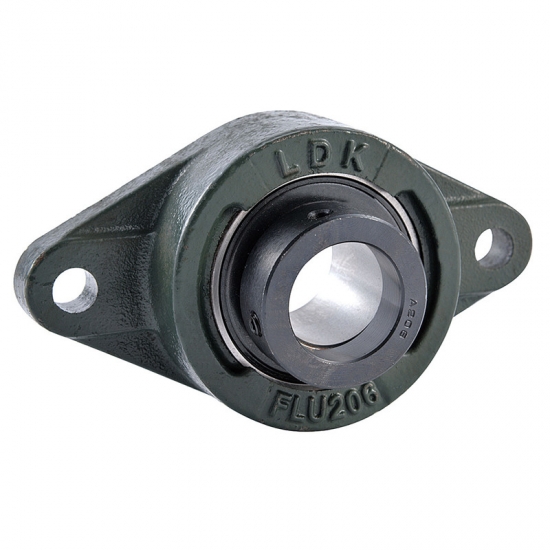

* 轴承座: 法兰座，2个螺栓孔,LDK品牌 (打字可定制)
* 轴承座材质:HT200 铸灰铁(可根据需要定制球墨铸铁材质)
* 油嘴: A3钢镀锌油嘴
* 喷漆: 墨绿色 (可根据需要定制其他喷漆颜色)
* 轴承座底部空心 (实心底可定制)
* 轴承：Gcr15(AISI52100)轴承钢材质，偏心套锁紧，标准载荷系列
* 轴承可按需添加高温/低温油脂，或者固体自润滑油脂

联系我们  PDF 下载

产品型号	轴径		尺寸 (mm)										螺栓尺寸 (mm)	重量
	d		H	J	L	A2	A1	A	N	B1	S	Z		(kg)
	(in)	(mm)	H	J	L	A2	A1	A	N	B1	S	Z		(kg)
NAFLU201S		12	99	76.5	57	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFLU201-8S	1/2		99	76.5	57	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFLU202S		15	99	76.5	57	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFLU202-10S	5/8		99	76.5	57	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFLU203S		17	99	76.5	57	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFLU203-11S	11/16		99	76.5	57	15	11	24.5	11.5	37.3	13.9	38.4	M10	0.66
NAFLU201		12	112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU201-8	1/2		112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU202		15	112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU202-10	5/8		112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU203		17	112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU203-11	11/16		112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU204		20	112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU204-12	3/4		112.5	90	61	19	15	29.5	11.5	43.7	17	45.5	M10	0.73
NAFLU205		25	123	99	70	19	15	30	11.5	44.4	17.4	45.9	M10	0.8
NAFLU205-14	7/8		123	99	70	19	15	30	11.5	44.4	17.4	45.9	M10	0.8
NAFLU205-15	15/16		123	99	70	19	15	30	11.5	44.4	17.4	45.9	M10	0.8
NAFLU205-16	1		123	99	70	19	15	30	11.5	44.4	17.4	45.9	M10	0.8
NAFLU206		30	142	116.5	82	20	13	32.5	11.5	48.4	18.2	50.1	M10	1.2
NAFLU206-18	1-1/8		142	116.5	82	20	13	32.5	11.5	48.4	18.2	50.1	M10	1.2
NAFLU206-19	1-3/16		142	116.5	82	20	13	32.5	11.5	48.4	18.2	50.1	M10	1.2
NAFLU206-20	1-1/4		142	116.5	82	20	13	32.5	11.5	48.4	18.2	50.1	M10	1.2
NAFLU207		35	158	130	94	21	17	36	14	51.1	18.8	53.3	M12	1.6
NAFLU207-20	1-1/4		158	130	94	21	17	36	14	51.1	18.8	53.3	M12	1.6
NAFLU207-21	1-5/16		158	130	94	21	17	36	14	51.1	18.8	53.3	M12	1.6
NAFLU207-22	1-3/16		158	130	94	21	17	36	14	51.1	18.8	53.3	M12	1.6
NAFLU207-23	1-7/16		158	130	94	21	17	36	14	51.1	18.8	53.3	M12	1.6
NAFLU208		40	172	143.5	103	24	17	39	14	56.3	21.4	58.9	M12	1.9
NAFLU208-24	1-1/2		172	143.5	103	24	17	39	14	56.3	21.4	58.9	M12	1.9
NAFLU208-25	1-9/16		172	143.5	103	24	17	39	14	56.3	21.4	58.9	M12	1.9
NAFLU209		45	180	148.5	108	24	18	40	16	56.3	21.4	58.9	M14	2.3
NAFLU209-26	1-5/8		180	148.5	108	24	18	40	16	56.3	21.4	58.9	M14	2.3
NAFLU209-27	1-11/16		180	148.5	108	24	18	40	16	56.3	21.4	58.9	M14	2.3
NAFLU209-28	1-3/4		180	148.5	108	24	18	40	16	56.3	21.4	58.9	M14	2.3
NAFLU210		50	190	157	114	28	20	45	18	62.7	24.6	66.1	M16	2.6
NAFLU210-30	1-7/8		190	157	114	28	20	45	18	62.7	24.6	66.1	M16	2.6
NAFLU210-31	1-15/16		190	157	114	28	20	45	18	62.7	24.6	66.1	M16	2.6
NAFLU210-32	2		190	157	114	28	20	45	18	62.7	24.6	66.1	M16	2.6
NAFLU211		55	217	184	128	31	21	48	18	71.4	27.7	74.6	M16	3.8
NAFLU211-32	2		217	184	128	31	21	48	18	71.4	27.7	74.6	M16	3.8
NAFLU211-34	2-1/8		217	184	128	31	21	48	18	71.4	27.7	74.6	M16	3.8
NAFLU211-35	2-3/16		217	184	128	31	21	48	18	71.4	27.7	74.6	M16	3.8
NAFLU212		60	237	202	138	34	21	53	18	77.8	30.9	80.8	M16	4.8
NAFLU212-36	2-1/4		237	202	138	34	21	53	18	77.8	30.9	80.8	M16	4.8
NAFLU212-38	2-3/8		237	202	138	34	21	53	18	77.8	30.9	80.8	M16	4.8
NAFLU212-39	2-7/16		237	202	138	34	21	53	18	77.8	30.9	80.8	M16	4.8
NAFLU213		65	256	210	152	38	22	56	21	85.7	34.1	89.6	M18	6.0
NAFLU213-40	2-1/2		256	210	152	38	22	56	21	85.7	34.1	89.6	M18	6.0
NAFLU214		70	264	216	157	38	23	58	21	85.7	34.1	89.6	M18	6.3
NAFLU214-44	2-3/4		264	216	157	38	23	58	21	85.7	34.1	89.6	M18	6.3
NAFLU215		75	275	225	164	41	24	62	21	92.1	37.3	95.8	M18	7.2
NAFLU215-47	2-15/16		275	225	164	41	24	62	21	92.1	37.3	95.8	M18	7.2
NAFLU215-48	3		275	225	164	41	24	62	21	92.1	37.3	95.8	M18	7.2

NAFLU2 二孔菱形座

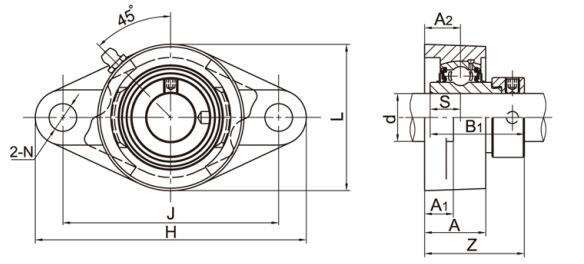

NAFLU2 二孔菱形座结构图
