SBLF2 SALF2 二孔菱形座

* 轴承座: 法兰座，2个螺栓孔,LDK品牌 (打字可定制)
* 轴承座材质:HT200 铸灰铁(可根据需要定制球墨铸铁材质)
* 油嘴: A3钢镀锌油嘴
* 喷漆: 墨绿色 (可根据需要定制其他喷漆颜色)
* 轴承座底部实心底
* 轴承：Gcr15(AISI52100)轴承钢材质，顶丝或偏心套锁紧，标准载荷系列
* 轴承可按需添加高温/低温油脂，或者固体自润滑油脂

联系我们  PDF 下载

产品型号	轴径		尺寸(mm)												螺栓尺寸 (mm)	重量 (kg)
	d		H	J	A2	A1	A	N	L	B1	B	s	Z	d1
	(in)	(mm)	H	J	A2	A1	A	N	L	B1	B	s	Z	d1
SALF201		12	81	63.5	9.5	9.5	18.0	8	56	28.6	19.1	6.0	32.1	28.6	M6	0.28
SALF201-8	1/2		81	63.5	9.5	9.5	18.0	8	56	28.6	19.1	6.0	32.1	28.6	M6	0.28
SALF202		15	81	63.5	9.5	9.5	18.0	8	56	28.6	19.1	6.0	32.1	28.6	MS	0.28
SALF202-9	9/16		81	63.5	9.5	9.5	18.0	8	56	28.6	19.1	6.0	32.1	28.6	MS	0.28
SALF202-10	5/8		81	63.5	9.5	9.5	18.0	8	56	28.6	19.1	6.0	32.1	28.6	MS	0.28
SALF203		17	81	63.5	9.5	9.5	18.0	8	56	28.6	19.1	6.0	32.1	28.6	M6	0.28
SALF203-11	11/16		81	63.5	9.5	9.5	18.0	8	56	28.6	19.1	6.0	32.1	28.6	M6	0.28
SALF204		20	90	71.5	11.0	11.0	20.0	10	61	31	21.5	7.0	35	33.3	M8	0.33
SALF204-12	3/4		90	71.5	11.0	11.0	20.0	10	61	31	21.5	7.0	35	33.3	M8	0.33
SALF205		25	95	76.0	11.0	11.0	20.0	10	64	31.5	22	7.5	35	38.1	M8	0.42
SALF205-14	7/8		95	76.0	11.0	11.0	20.0	10	64	31.5	22	7.5	35	38.1	M8	0.42
SALF205-15	15/16		95	76.0	11.0	11.0	20.0	10	64	31.5	22	7.5	35	38.1	M8	0.42
SALF205-16	1		95	76.0	11.0	11.0	20.0	10	64	31.5	22	7.5	35	38.1	M8	0.42
SALF206		30	113	90.5	12.0	12.0	22.5	12	76	35.7	23.8	8.0	39.7	44.5	M10	0.6
SALF206-17	1-11/16		113	90.5	12.0	12.0	22.5	12	76	35.7	23.8	8.0	39.7	44.5	M10	0.6
SALF206-18	1-1/8		113	90.5	12.0	12.0	22.5	12	76	35.7	23.8	8.0	39.7	44.5	M10	0.6
SALF206-19	1-3/16		113	90.5	12.0	12.0	22.5	12	76	35.7	23.8	8.0	39.7	44.5	M10	0.6
SALF206-20	1-1/4		113	90.5	12.0	12.0	22.5	12	76	35.7	23.8	8.0	39.7	44.5	M10	0.6
SALF207		35	122	100	13.0	13.0	24.0	12	89	38.9	25.4	8.5	43.4	55.6	M10	0.85
SALF207-20	1-1/4		122	100	13.0	13.0	24.0	12	89	38.9	25.4	8.5	43.4	55.6	M10	0.85
SALF207-21	1-5/16		122	100	13.0	13.0	24.0	12	89	38.9	25.4	8.5	43.4	55.6	M10	0.85
SALF207-22	1-3/8		122	100	13.0	13.0	24.0	12	89	38.9	25.4	8.5	43.4	55.6	M10	0.85
SALF207-23	1-7/16		122	100	13.0	13.0	24.0	12	89	38.9	25.4	8.5	43.4	55.6	M10	0.85
SALF208		40	150	119	13.5	13	25	14	106	43.7	30.2	9	48.2	60.3	M12	1.48
SALF208-24	1-1/2		150	119	13.5	13	25	14	106	43.7	30.2	9	48.2	60.3	M12	1.48
SALF208-25	1-9/16		150	119	13.5	13	25	14	106	43.7	30.2	9	48.2	60.3	M12	1.48

产品型号	轴径		尺寸(mm)										螺栓尺寸 (mm)	重量
	d		H	J	A2	A1	A	N	L	B	s	z		(kg)
	(in)	(mm)	H	J	A2	A1	A	N	L	B	s	z		(kg)
SBLF201		12	81	63.5	9.5	9.5	18.0	8	56	22	6.0	25.5	M6	0.27
SBLF201-8	1/2		81	63.5	9.5	9.5	18.0	8	56	22	6.0	25.5	M6	0.27
SBLF202		15	81	63.5	9.5	9.5	18.0	8	56	22	6.0	25.5	M6	0.25
SBLF202-9	9/16		81	63.5	9.5	9.5	18.0	8	56	22	6.0	25.5	M6	0.25
SBLF202-10	5/8		81	63.5	9.5	9.5	18.0	8	56	22	6.0	25.5	M6	0.25
SBLF203		17	81	63.5	9.5	9.5	18.0	8	56	22	6.0	25.5	M6	0.25
SBLF203-11	11/16		81	63.5	9.5	9.5	18.0	8	56	22	6.0	25.5	M6	0.25
SBLF204		20	90	71.5	11.0	11.0	20.0	10	61	25	7.0	29.0	M8	0.33
SBLF204-12	3/4		90	71.5	11.0	11.0	20.0	10	61	25	7.0	29.0	M8	0.33
SBLF205		25	95	76.0	11.0	11.0	20.0	10	64	27	7.5	30.5	M8	0.38
SBLF205-14	7/8		95	76.0	11.0	11.0	20.0	10	64	27	7.5	30.5	M8	0.38
SBLF205-15	15/16		95	76.0	11.0	11.0	20.0	10	64	27	7.5	30.5	M8	0.38
SBLF205-16	1		95	76.0	11.0	11.0	20.0	10	64	27	7.5	30.5	M8	0.38
SBLF206		30	113	90.5	12.0	12.0	22.5	12	76	30	8.0	34.0	M10	0.56
SBLF206-17	1-11/16		113	90.5	12.0	12.0	22.5	12	76	30	8.0	34.0	M10	0.56
SBLF206-18	1-1/8		113	90.5	12.0	12.0	22.5	12	76	30	8.0	34.0	M10	0.56
SBLF206-19	1-3/16		113	90.5	12.0	12.0	22.5	12	76	30	8.0	34.0	M10	0.56
SBLF206-20	1-1/4		113	90.5	12.0	12.0	22.5	12	76	30	8.0	34.0	M10	0.56
SBLF207		35	122	100	13	13.0	24	12	89	32	8.5	36.5	M10	0.8
SBLF207-20	1-1/4		122	100	13	13.0	24	12	89	32	8.5	36.5	M10	0.8
SBLF207-21	1-5/16		122	100	13	13.0	24	12	89	32	8.5	36.5	M10	0.8
SBLF207-22	1-3/8		122	100	13	13.0	24	12	89	32	8.5	36.5	M10	0.8
SBLF207-23	1-7/16		122	100	13	13.0	24	12	89	32	8.5	36.5	M10	0.8
SBLF208		40	150	119	13.5	13.0	25	14	106	34	9	38.5	M12	1.48
SBLF208-24	1-1/2		150	119	13.5	13.0	25	14	106	34	9	38.5	M12	1.48
SBLF208-25	1-9/16		150	119	13.5	13.0	25	14	106	34	9	38.5	M12	1.48

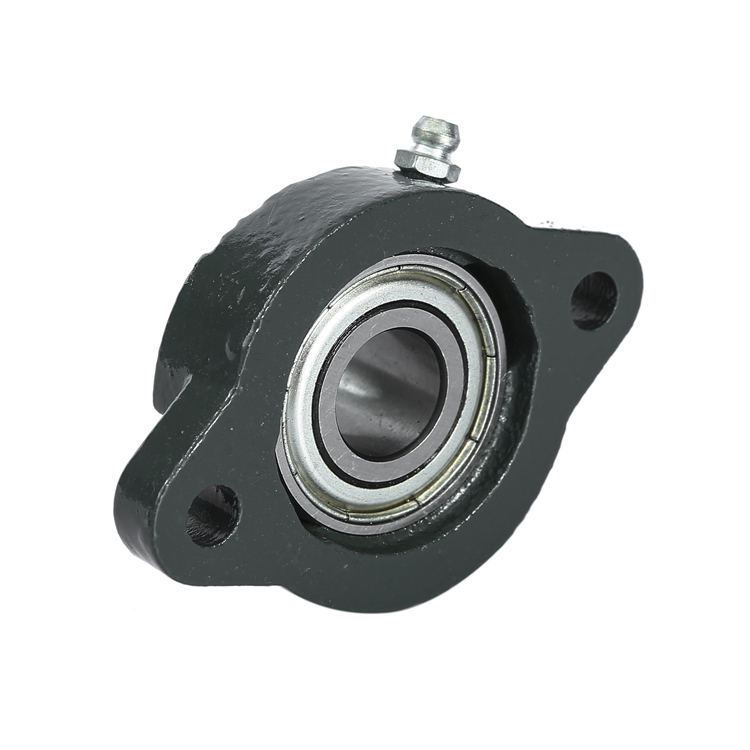

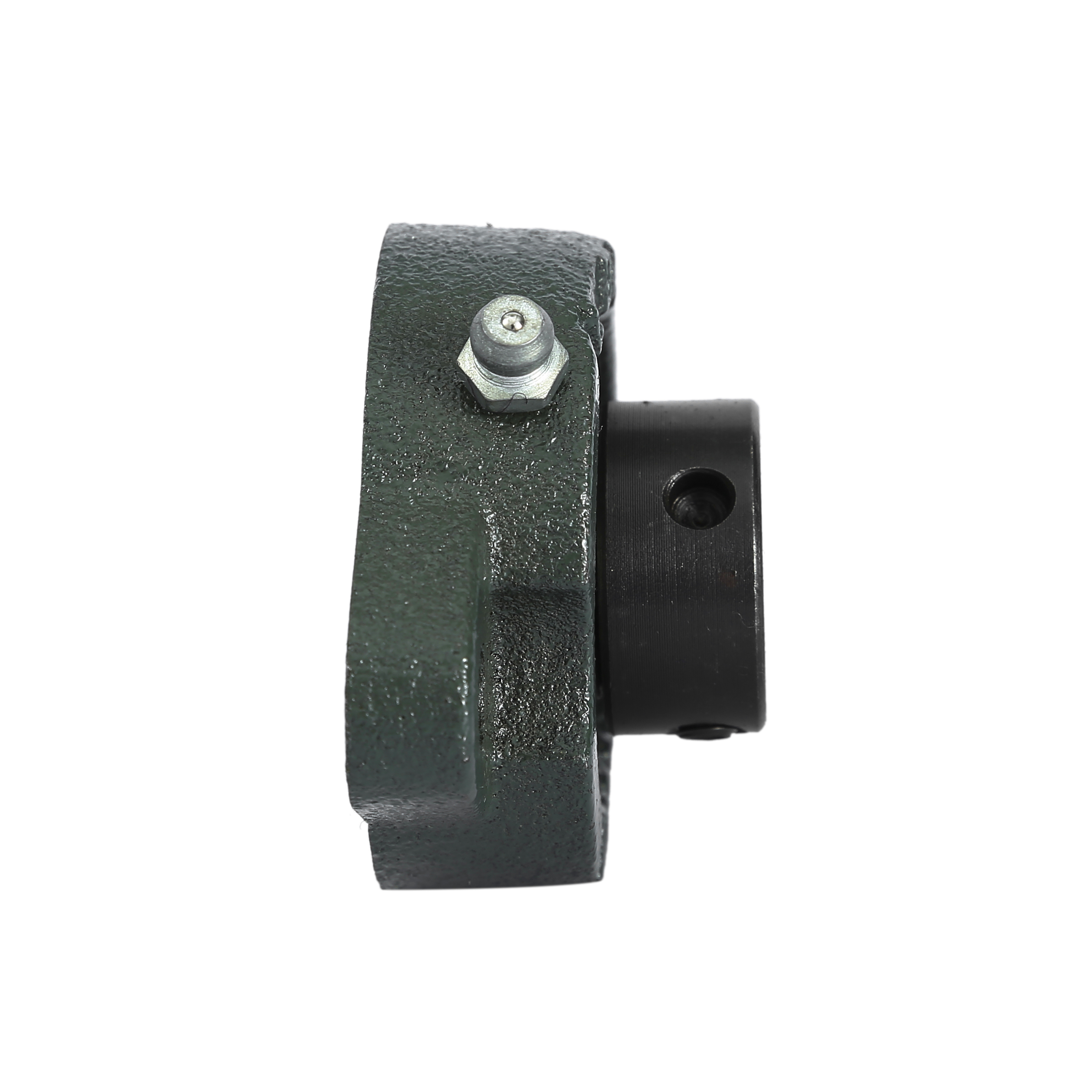

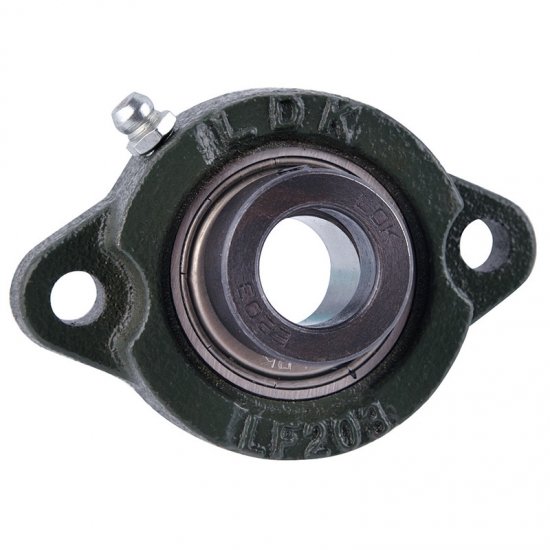

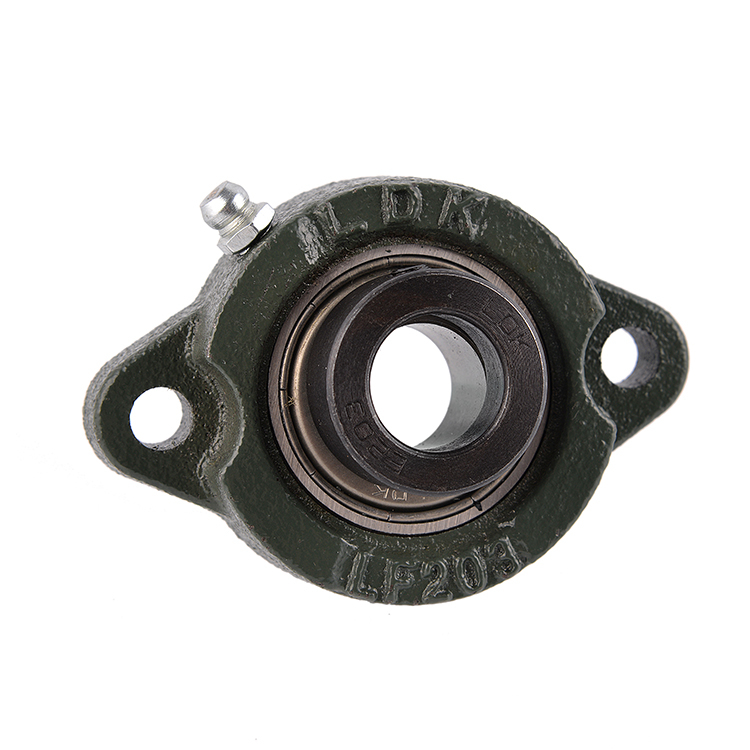

SBLF2 SALF2 二孔菱形座

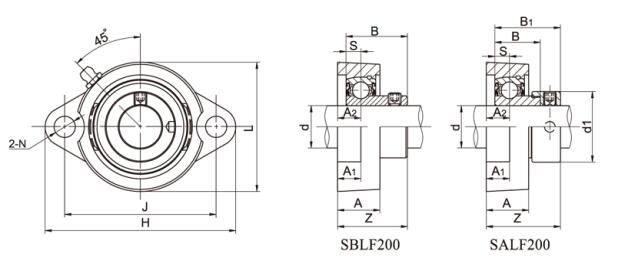

SBLF2 SALF2 二孔菱形座结构图

SBLF2 SALF2 二孔菱形座参数
