UKFC2 凸台圆形座法兰座

* 轴承座: 法兰圆形座，四个螺栓孔,LDK品牌 (打字可定制)
* 轴承座材质:HT200 铸灰铁(可根据需要定制球墨铸铁材质)
* 油嘴: A3钢镀锌油嘴
* 喷漆: 墨绿色 (可根据需要定制其他喷漆颜色)
* 轴承：Gcr15(AISI52100)轴承钢材质，紧定套锁紧，标准载荷系列
* 轴承可按需添加高温/低温油脂，或者固体自润滑油脂

联系我们  PDF 下载

产品型号	轴径		尺寸 (mm)											螺栓尺寸 (mm)	重量
	d		D₂	P	J	A2	N	L	H1	A1	D1	S1	Z		(kg)
	(in)	(mm)	D₂	P	J	A2	N	L	H1	A1	D1	S1	Z		(kg)
UKFC205+H2305		20	115	90	63.6	10	12	6	7	21	70	18.5	28.5	M10	0.98
UKFC205+HE2305	3/4		115	90	63.6	10	12	6	7	21	70	18.5	28.5	M10	0.98
UKFC206+H2306		25	125	100	70.7	10	12	8	8	23	80	20.5	30.5	M10	1.2
UKFC206+HS2306	7/8		125	100	70.7	10	12	8	8	23	80	20.5	30.5	M10	1.2
UKFC206+HA2306	15/16		125	100	70.7	10	12	8	8	23	80	20.5	30.5	M10	1.2
UKFC206+HE2306	1		125	100	70.7	10	12	8	8	23	80	20.5	30.5	M10	1.2
UKFC207+H2307		30	135	110	77.8	11	14	8	9	26	90	22.5	33.5	M12	1.7
UKFC207+HS2307	1-1/8		135	110	77.8	11	14	8	9	26	90	22.5	33.5	M12	1.7
UKFC207+HA2307	1-3/16		135	110	77.8	11	14	8	9	26	90	22.5	33.5	M12	1.7
UKFC208+H2308		35	145	120	84.8	11	14	10	9	26	100	24.5	35.5	M12	2.0
UKFC208+HE2308	1-1/4		145	120	84.8	11	14	10	9	26	100	24.5	35.5	M12	2.0
UKFC208+HS2308	1-3/8		145	120	84.8	11	14	10	9	26	100	24.5	35.5	M12	2.0
UKFC209+H2309		40	160	132	93.3	10	16	12	10	26	105	26	36	M14	2.7
UKFC209+HA2309	1-7/16		160	132	93.3	10	16	12	10	26	105	26	36	M14	2.7
UKFC209+HE2309	1-1/2		160	132	93.3	10	16	12	10	26	105	26	36	M14	2.7
UKFC210+H2310		45	165	138	97.6	10	16	12	14	28	110	27.5	37.5	M14	3.0
UKFC210+HS2310	1-5/8		165	138	97.6	10	16	12	14	28	110	27.5	37.5	M14	3.0
UKFC210+HA2310	1-11/16		165	138	97.6	10	16	12	14	28	110	27.5	37.5	M14	3.0
UKFC210+HE2310	1-3/4		165	138	97.6	10	16	12	14	28	110	27.5	37.5	M14	3.0
UKFC211+H2311		50	185	150	106.1	13	19	12	15	30	125	28.5	41.5	M16	4.2
UKFC211+HS2311	1-7/8		185	150	106.1	13	19	12	15	30	125	28.5	41.5	M16	4.2
UKFC211+HA2311	1-15/16		185	150	106.1	13	19	12	15	30	125	28.5	41.5	M16	4.2
UKFC211+HE2311	2		185	150	106.1	13	19	12	15	30	125	28.5	41.5	M16	4.2
UKFC212+H2312		55	195	160	113.1	17	19	12	15	35	135	31	48	M16	4.9
UKFC212+HS2312	2-1/8		195	160	113.1	17	19	12	15	35	135	31	48	M16	4.9
UKFC213+H2313		60	205	170	120.2	16	19	14	15	36	145	32	48	M16	5.6
UKFC213+HA2313	2-3/16		205	170	120.2	16	19	14	15	36	145	32	48	M16	5.6
UKFC213+HE2313	2-1/4		205	170	120.2	16	19	14	15	36	145	32	48	M16	5.6
UKFC213+HS2313	2-3/8		205	170	120.2	16	19	14	15	36	145	32	48	M16	5.6
UKFC215+H2315		65	220	184	130.1	18	19	16	17	39	160	35.5	53.5	M16	7.5
UKFC215+HA2315	2-7/16		220	184	130.1	18	19	16	17	39	160	35.5	53.5	M16	7.5
UKFC215+HE2315	2-1/2		220	184	130.1	18	19	16	17	39	160	35.5	53.5	M16	7.5
UKFC216+H2316		70	240	200	141.4	18	23	16	18	42	170	39	57	M20	8.9
UKFC216+HA2316	2-11/16		240	200	141.4	18	23	16	18	42	170	39	57	M20	8.9
UKFC216+HE2316	2-3/4		240	200	141.4	18	23	16	18	42	170	39	57	M20	8.9
UKFC217+H2317		75	250	208	147.1	18	23	18	20	45	180	40	58	M20	10.4
UKFC217+HA2317	2-15/16		250	208	147.1	18	23	18	20	45	180	40	58	M20	10.4
UKFC217+HE2317	3		250	208	147.1	18	23	18	20	45	180	40	58	M20	10.4
UKFC218+H2318		80	265	220	155.5	22	23	18	20	50	190	42	64	M20	13.3

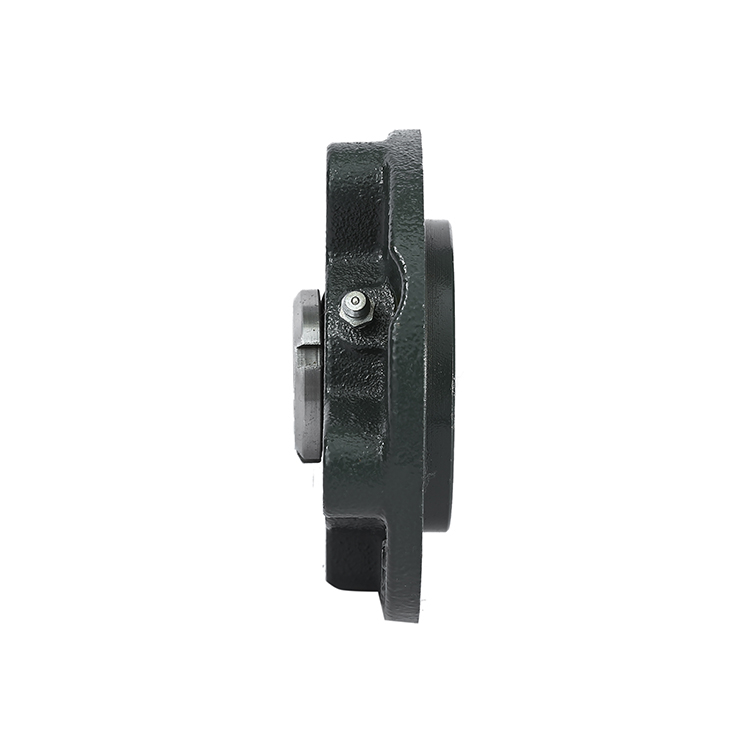

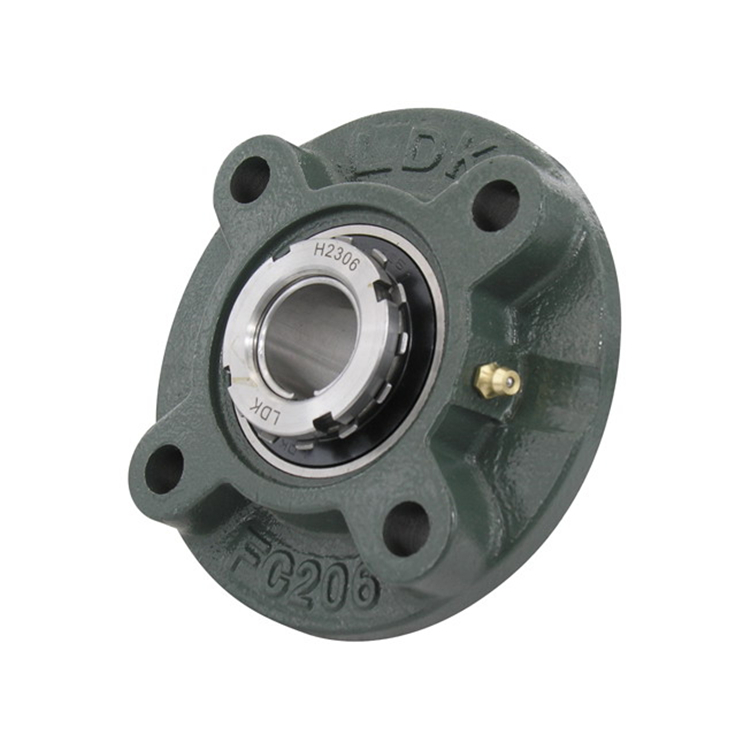

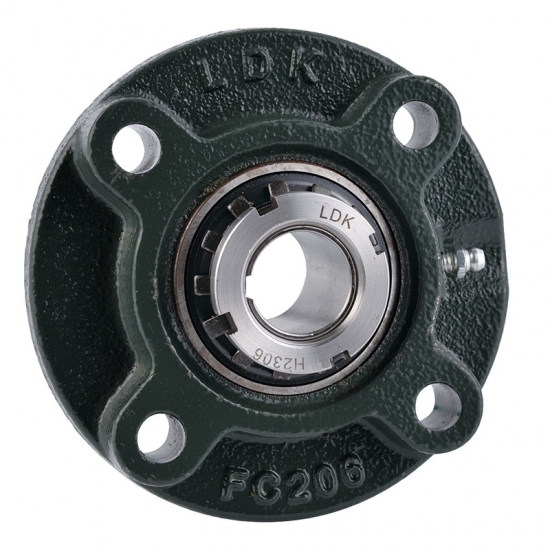

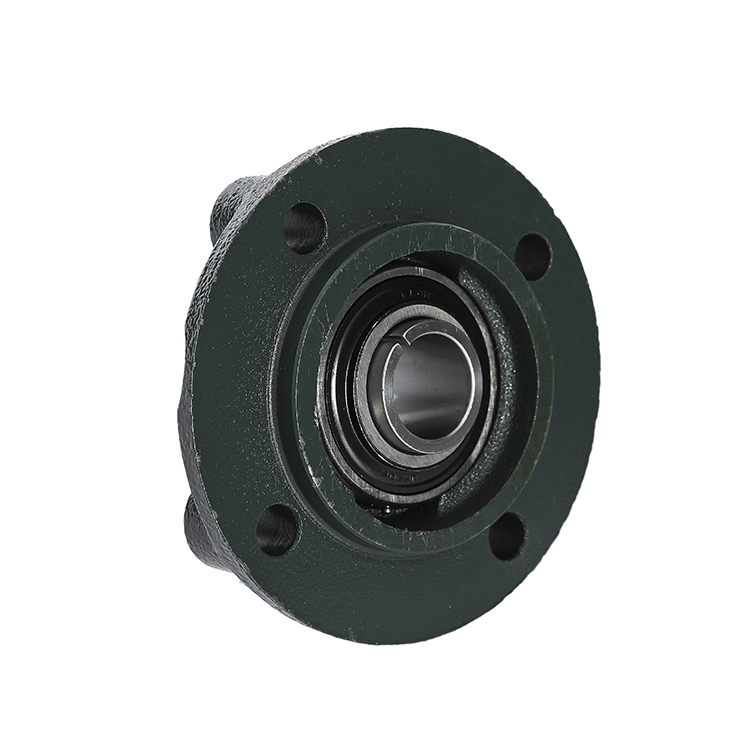

UKFC2 凸台圆形座法兰座

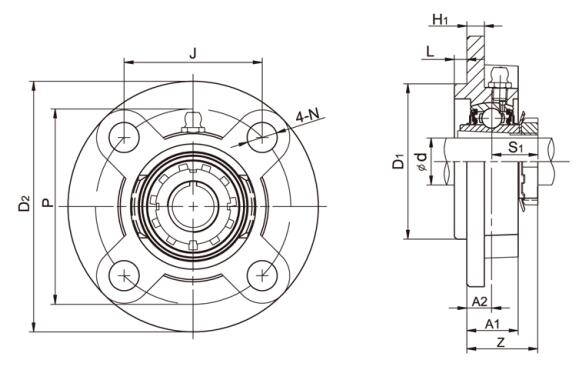

UKFC2 凸台圆形座法兰座结构图

UKFC2 凸台圆形座法兰座参数
