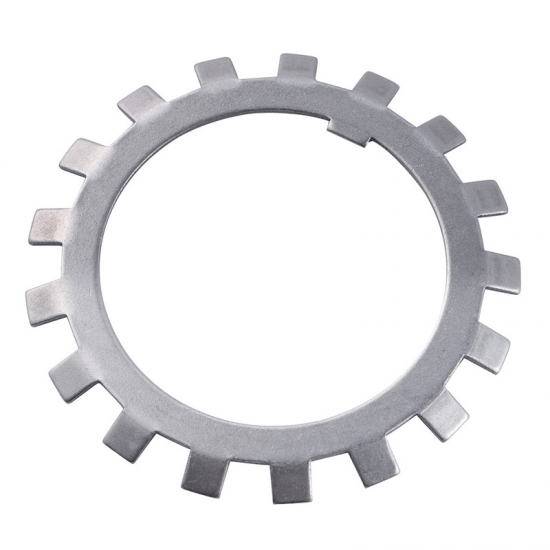

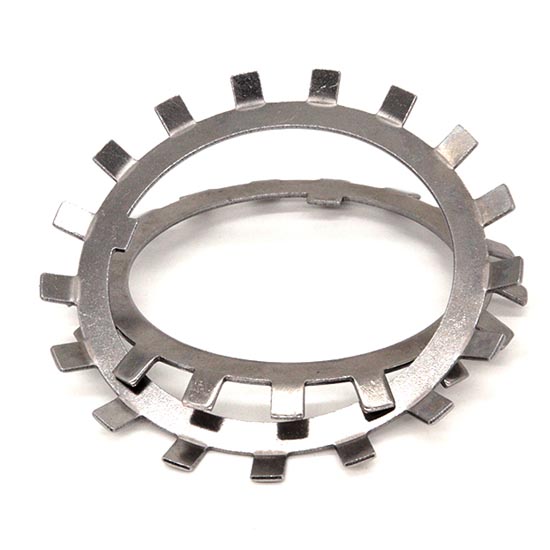

MB 锁紧垫圈是紧定套的一个配件
材质：碳钢（可定制不锈钢）
产品无商标，有公英制可选
材质：碳钢（可定制不锈钢）
产品无商标，有公英制可选

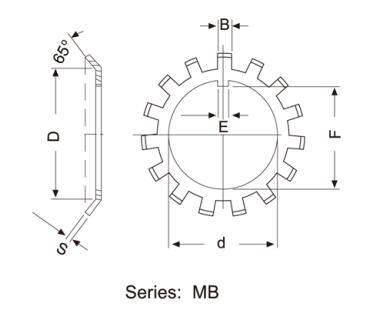

| 型号 | d2 | D | s | E | F | B | 重量(kg) |
| MB0 | 10 | 13.5 | 1 | 3 | 8.5 | 3 | 0.131 |
| MB1 | 12 | 17 | 1 | 3 | 10.5 | 3 | 0.192 |
| MB2 | 15 | 21 | 1 | 4 | 13.5 | 4 | 0.253 |
| MB3 | 17 | 24 | 1 | 4 | 15.5 | 4 | 0.313 |
| MB4 | 20 | 26 | 1 | 4 | 18.5 | 4 | 0.350 |
| MB5 | 25 | 32 | 1.25 | 5 | 23 | 5 | 0.640 |
| MB6 | 30 | 38 | 1.25 | 5 | 27.5 | 5 | 0.780 |
| MB7 | 35 | 44 | 1.25 | 6 | 32.5 | 5 | 1.04 |
| MB8 | 40 | 50 | 1.25 | 6 | 37.5 | 6 | 1.23 |
| MB9 | 45 | 56 | 1.25 | 6 | 42.5 | 6 | 1.52 |
| MB10 | 50 | 61 | 1.25 | 6 | 47.5 | 6 | 1.60 |
| MB11 | 55 | 67 | 1.25 | 8 | 52.5 | 7 | 1.96 |
| MB12 | 60 | 73 | 1.5 | 8 | 57.5 | 7 | 2.53 |
| MB13 | 65 | 79 | 1.5 | 8 | 62.5 | 7 | 2.90 |
| MB14 | 70 | 85 | 1.5 | 8 | 66.5 | 8 | 3.34 |
| MB15 | 75 | 90 | 1.5 | 8 | 71.5 | 8 | 3.56 |
| MB16 | 80 | 95 | 1.75 | 10 | 76.5 | 8 | 4.64 |
| MB17 | 85 | 102 | 1.75 | 10 | 81.5 | 8 | 5.24 |
| MB18 | 90 | 108 | 1.75 | 10 | 86.5 | 10 | 6.23 |
| MB19 | 95 | 113 | 1.75 | 10 | 91.5 | 10 | 6.70 |
| MB20 | 100 | 120 | 1.75 | 12 | 96.5 | 10 | 7.65 |
| MB21 | 105 | 126 | 1.75 | 12 | 100.5 | 12 | 8.26 |
| MB22 | 110 | 133 | 1.75 | 12 | 105.5 | 12 | 9.40 |
| MB23 | 115 | 137 | 2 | 12 | 110.5 | 12 | 10.8 |
| MB24 | 120 | 138 | 2 | 14 | 115 | 12 | 10.5 |
| MB25 | 125 | 148 | 2 | 14 | 120 | 12 | 11.8 |
| MB26 | 130 | 149 | 2 | 14 | 125 | 12 | 11.3 |
| MB27 | 135 | 160 | 2 | 14 | 130 | 14 | 14.4 |
| MB28 | 140 | 160 | 2 | 16 | 135 | 14 | 14.2 |
| MB29 | 145 | 172 | 2 | 16 | 140 | 14 | 16.8 |
| MB30 | 150 | 171 | 2 | 16 | 145 | 14 | 15.5 |
| MB31 | 155 | 182 | 2.5 | 16 | 147.5 | 16 | 20.9 |
| MB32 | 160 | 182 | 2.5 | 18 | 154 | 16 | 22.2 |
| MB33 | 165 | 193 | 2.5 | 18 | 157.5 | 16 | 24.1 |
| MB34 | 170 | 193 | 2.5 | 18 | 164 | 16 | 24.7 |
| MB36 | 180 | 203 | 2.5 | 20 | 174 | 18 | 26.8 |
| MB38 | 190 | 214 | 2.5 | 20 | 184 | 18 | 27.8 |
| MB40 | 200 | 226 | 2.5 | 20 | 194 | 18 | 29.3 |
| MB44 | 220 | 250 | 3 | 24 | 213 | 20 | 40.0 |
| MB48 | 240 | 270 | 3 | 24 | 233 | 20 | 40.0 |
| MB52 | 260 | 300 | 3 | 28 | 253 | 24 | 60.0 |
| MB56 | 280 | 320 | 3 | 28 | 273 | 24 | 62.0 |

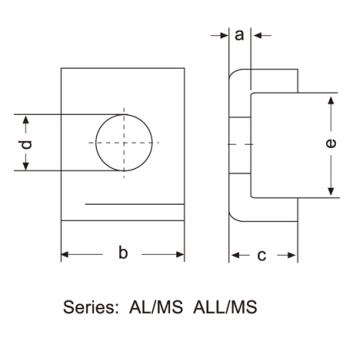

| 型号 | a | b | C | d | e | 重量(kg) |
| AL/MS3144 | 4 | 20 | 12 | 9 | 22.5 | 2.60 |
| AL/MS3148 | 4 | 20 | 12 | 9 | 22.5 | 2.60 |
| AL/MS3152 | 4 | 24 | 12 | 12 | 25.5 | 3.39 |
| AL/MS3156 | 4 | 24 | 12 | 12 | 25.5 | 3.39 |
| AL/MS3160 | 4 | 24 | 12 | 12 | 30.5 | 3.79 |
| AL/MS3164 | 5 | 24 | 15 | 12 | 31 | 5.35 |
| AL/MS3168 | 5 | 28 | 15 | 14 | 38 | 6.65 |
| AL/MS3172 | 5 | 28 | 15 | 14 | 38 | 6.65 |
| AL/MS3176 | 5 | 32 | 15 | 14 | 40 | 7.96 |
| AL/MS3180 | 5 | 32 | 15 | 18 | 45 | 8.20 |
| AL/MS3184 | 5 | 32 | 15 | 18 | 45 | 8.20 |
| AL/MS3188 | 5 | 36 | 15 | 18 | 43 | 9.00 |
| AL/MS3192 | 5 | 36 | 15 | 18 | 43 | 9.00 |
| AL/MS3196 | 5 | 36 | 15 | 18 | 53 | 10.4 |
| ALL/MS3044 | 4 | 20 | 12 | 7 | 13.5 | 2.12 |
| ALL/MS3048 | 4 | 20 | 12 | 9 | 17.5 | 2.29 |
| ALL/MS3052 | 4 | 20 | 12 | 9 | 17.5 | 2.29 |
| ALL/MS3056 | 4 | 24 | 12 | 9 | 17.5 | 2.92 |
| ALL/MS3060 | 4 | 24 | 12 | 9 | 20.5 | 3.16 |
| ALL/MS3064 | 5 | 24 | 15 | 9 | 21 | 4.56 |
| ALL/MS3068 | 5 | 24 | 15 | 9 | 21 | 4.56 |
| ALL/MS3072 | 5 | 28 | 15 | 9 | 20 | 5.03 |
| ALL/MS3076 | 5 | 28 | 15 | 12 | 24 | 5.28 |
| ALL/MS3080 | 5 | 28 | 15 | 12 | 24 | 5.28 |
| ALL/MS3084 | 5 | 32 | 15 | 12 | 24 | 6.11 |
| ALL/MS3088 | 5 | 32 | 15 | 14 | 28 | 6.45 |
| ALL/MS3092 | 5 | 32 | 15 | 14 | 28 | 6.45 |
| ALL/MS3096 | 5 | 36 | 15 | 14 | 28 | 7.29 |
