钢球：Gcr15轴承钢，热处理，HRC58-64°，并经过精磨，表面镀硬铬处理
外圈：碳钢
滑动摩擦副：钢/钢
外圈：碳钢
滑动摩擦副：钢/钢

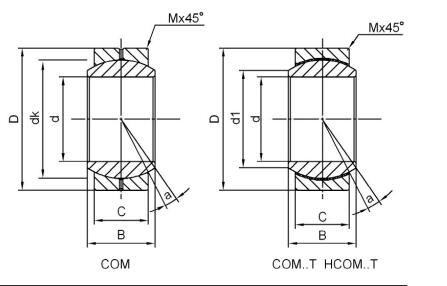

| 轴承型号 | 尺寸(mm) | 调心角度 a° |
极限静态 径向载荷(KN)
| 重量 ≈kg | |||||
d +0 038 -0.012 | D +0 -0.016 | B ±0.127 | C±0.127 | dk | rsx45° | ||||
| HCOM16 | 1.0000 | 2.0000 | 1.000 | 0.781 | 1.678 | 0.032 | 9 | 472.5 | 0.249 |
| HCOM19 | 1.1875 | 2.3750 | 1.187 | 0.937 | 2.000 | 0.032 | 8.5 | 672.1 | 0.408 |
| HCOM20 | 1.2500 | 2.3750 | 1.175 | 0.937 | 2.000 | 0.032 | 8.5 | 672.1 | 0.408 |
| HCOM24 | 1.5000 | 2.7500 | 1.375 | 1.094 | 2.312 | 0.032 | 8.5 | 907.1 | 0.616 |
| HCOM28 | 1.7500 | 3.1250 | 1.562 | 1.250 | 2.625 | 0.044 | 8.0 | 1176.7 | 0.884 |
| HCOM32 | 2.0000 | 3.5000 | 1.750 | 1.375 | 2.937 | 0.044 | 8.5 | 1448.2 | 1.206 |
| 轴承型号 | 尺寸(mm) | 调心角度 a° | 极限静态 径向载荷(KN) | 重量 ≈kg | |||||
d +0 038 -0.012 | D +0 -0.016 | B ±0.127 | C±0.127 | dk | rsx45° | ||||
| COM3 | 0.1900 | 0.5625 | 0.281 | 0.281 | 0.406 | 0.020 | 11 | 21.6 | 0.0045 |
| COM4 | 0.2500 | 0.6562 | 0.343 | 0.250 | 0.500 | 0.022 | 13.5 | 33 | 0.009 |
| COM5 | 0.3125 | 0.7500 | 0.375 | 0.281 | 0.562 | 0.032 | 12 | 43.2 | 0.0136 |
| COM6 | 0.3750 | 0.8125 | 0.406 | 0.312 | 0.656 | 0.032 | 10 | 56 | 0.018 |
| COM7 | 0.4375 | 0.9062 | 0.437 | 0.434 | 0.718 | 0.032 | 8 | 63 | 0.022 |
| COM8 | 0.5000 | 1.0000 | 0.500 | 0.390 | 0.813 | 0.032 | 9.5 | 88.4 | 0.031 |
| COM9 | 0.5625 | 1.0937 | 0.562 | 0.437 | 0.906 | 0.032 | 9.5 | 110.9 | 0.04 |
| COM10 | 0.6250 | 1.1875 | 0.625 | 0.500 | 1.000 | 0.032 | 8.5 | 141.9 | 0.049 |
| COM12 | 0.7500 | 1.4375 | 0.750 | 0.593 | 1.187 | 0.044 | 9 | 212.98 | 0.090 |
| COM14 | 0.8750 | 1.5625 | 0.875 | 0.703 | 1.312 | 0.044 | 9.5 | 279.9 | 0.118 |
| COM16 | 1.0000 | 1.7500 | 1.00 | 0.797 | 1.500 | 0.044 | 10 | 368.3 | 0.177 |
