钢球：
·440C不锈钢
·最小硬度56°
外圈：
·17-4不锈钢
·热处理
衬垫：
·PTFE编织物
·永久性附着在外圈内径上
·440C不锈钢
·最小硬度56°
外圈：
·17-4不锈钢
·热处理
衬垫：
·PTFE编织物
·永久性附着在外圈内径上

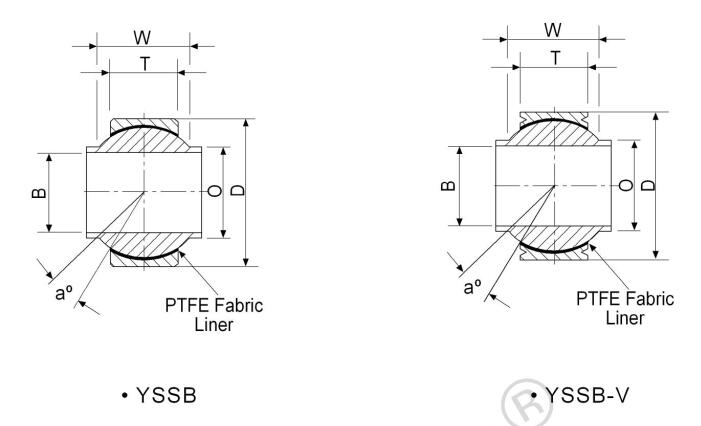

| 轴承型号 | B +.0000 -.0005 | D +.0000 -.0005 | w +.000 -.002 | T ±.005 | 0 +.000 -.010 | 钢球 直径 | 调心 角度 | 极限静态 径向载荷 (磅) | 极限静态 轴向载荷 (磅) | 动态摆动 径向扭矩 (磅) | 估重 (磅) |
| 球孔 | 外径 | 球头宽 | 衬套宽 | 台肩直径 | |||||||
| YSSB4V | .2500 | .7400 | .593 | .255 | .390 | .593 | 24 | 7,100 | 450 | 3,800 | .036 |
| YSSB5V | .3125 | .6875 | .625 | .255 | .418 | .593 | 20 | 9,000 | 450 | 3,800 | .025 |
| YSSB6V | .3750 | .9060 | .813 | .345 | .512 | .781 | 23 | 16,000 | 2.000 | 7,200 | .068 |
| YSSB7V | .4375 | 1.0000 | .875 | .345 | .618 | .875 | 22 | 19,300 | 2,000 | 8,100 | .095 |
| YSSB8V | .5000 | 1.1250 | .937 | .401 | .730 | 1.000 | 20 | 26,100 | 3,200 | 10,900 | .159 |
| YSSB10V | .6250 | 1.3750 | 1.200 | .567 | .856 | 1.250 | 20 | 44,500 | 7,000 | 20,000 | .245 |
| YSSB12V | .7500 | 1.5625 | 1.280 | .620 | .970 | 1.375 | 18 | 54.800 | 8,700 | 24,200 | .315 |
说明：
根据客户需求，该系列可供52100热处理，表面镀硬铬的钢球
为区别此需求，使用型号YSBT(4-12)或YSBT(4-12)V替代上表型号
| 轴承型号 | B +.0000 -.0005 | D +.0000 -.0005 | w +.000 -.002 | T ±.005 | 0 +.000 -.010 | 钢球 直径 | 调心 角度 | 极限静态 径向载荷 (磅) | 极限静态 轴向载荷 (磅) | 动态摆动 径向扭矩 (磅) | 估重 (磅) |
| 球孔 | 外径 | 球头宽 | 衬套宽 | 台肩直径 | |||||||
| YSSB4 | .2500 | .7400 | .593 | .255 | .390 | .593 | 24 | 7,100 | 450 | 3,800 | .036 |
| YSSB5 | .3125 | .6875 | .625 | .255 | .418 | .593 | 20 | 9,000 | 450 | 3,800 | .025 |
| YSSB6 | .3750 | .9060 | .813 | .345 | .512 | .781 | 23 | 16,000 | 2.000 | 7,200 | .068 |
| YSSB7 | .4375 | 1.0000 | .875 | .345 | .618 | .875 | 22 | 19,300 | 2,000 | 8,100 | .095 |
| YSSB8 | .5000 | 1.1250 | .937 | .401 | .730 | 1.000 | 20 | 26,100 | 3,200 | 10,900 | .159 |
| YSSB10 | .6250 | 1.3750 | 1.200 | .567 | .856 | 1.250 | 20 | 44,500 | 7,000 | 20,000 | .245 |
| YSSB12 | .7500 | 1.5625 | 1.280 | .620 | .970 | 1.375 | 18 | 54.800 | 8,700 | 24,200 | .315 |
