钢球：Gcr15轴承钢，热处理，HRC58-64°，并经过精磨，表面镀硬铬处理
外圈：碳钢
COM..T/HCOMT..:PTFE复合物或者PTFE编织物
滑动摩擦副：钢/PTFE复合物
外圈：碳钢
COM..T/HCOMT..:PTFE复合物或者PTFE编织物
滑动摩擦副：钢/PTFE复合物

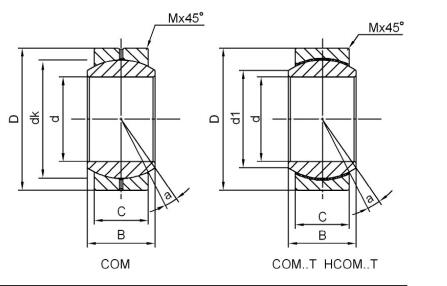

| 轴承型号 | 尺寸(mm) | 调心角度 | 静态 径向载荷(KN) | 重量 ≈kg | |||||
d +0.038 -0.012 | D +0 -0.016 | B ±0.127 | C±0.127 | dk | rsx45° | ||||
| HCOM16T | 25.4 | 50.8 | 25.4 | 19.84 | 42.62 | 0.8 | 9 | 472.5 | 0.249 |
| HCOM19T | 30.162 | 60.325 | 30.15 | 23.8 | 50.8 | 0.8 | 8.5 | 672.1 | 0.408 |
| HCOM20T | 31.75 | 60.325 | 30.15 | 23.8 | 50.8 | 0.8 | 8.5 | 672.1 | 0.408 |
| HCOM24T | 38.1 | 69.85 | 34.92 | 27.79 | 58.72 | 0.8 | 8.5 | 907.1 | 0.616 |
| HCOM28T | 44.45 | 79.375 | 39.67 | 31.75 | 66.68 | 1.1 | 8.0 | 1176.7 | 0.884 |
| HCOM32T | 50.8 | 88.9 | 44.45 | 34.92 | 74.6 | 1.1 | 8.5 | 1448.2 | 1.206 |
| 轴承型号 | 尺寸(mm) | 调心角度 a° | 静态 径向载荷 (KN) | 重量 ≈kg | |||||
d +0.038 -0.012 | D +0 -0.016 | B ±0.127 | C±0.127 | dk | rsx45° | ||||
| COM3T | 4.825 | 14.288 | 7.14 | 5.54 | 10.31 | 0.4 | 11 | 21.6 | 0.0045 |
| COM4T | 6.35 | 16.667 | 8.71 | 6.35 | 12.7 | 0.55 | 13.5 | 33 | 0.009 |
| COM5T | 7.938 | 19.05 | 9.53 | 7.14 | 14.27 | 0.8 | 12 | 43.2 | 0.0136 |
| COM6T | 9.525 | 20.638 | 10.31 | 7.92 | 16.66 | 0.8 | 10 | 56 | 0.018 |
| COM7T | 11.113 | 23.017 | 11.1 | 8.71 | 18.23 | 0.8 | 8 | 63 | 0.022 |
| COM8T | 12.7 | 25.4 | 12.7 | 9.91 | 20.65 | 0.8 | 9.5 | 88.4 | 0.031 |
| COM9T | 14.288 | 27.78 | 14.28 | 11.1 | 23.01 | 0.8 | 9.5 | 110.9 | 0.04 |
| COM10T | 15.875 | 30.163 | 15.88 | 12.7 | 25.4 | 0.8 | 8.5 | 141.9 | 0.049 |
| COM12T | 19.05 | 36.512 | 19.05 | 15.06 | 30.15 | 1.1 | 9 | 212.98 | 0.090 |
| COM14T | 22.225 | 39.688 | 22.23 | 17.86 | 33.32 | 1.1 | 9.5 | 279.9 | 0.118 |
| COM16T | 25.4 | 44.45 | 25.4 | 20.24 | 38.1 | 1.1 | 10 | 368.3 | 0.177 |
