钢球：
·440C不锈钢
·最小硬度56°
外圈：
·17-4不锈钢
·热处理
衬垫：
·PTFE编织物
·永久性附着在外圈内径上
·440C不锈钢
·最小硬度56°
外圈：
·17-4不锈钢
·热处理
衬垫：
·PTFE编织物
·永久性附着在外圈内径上

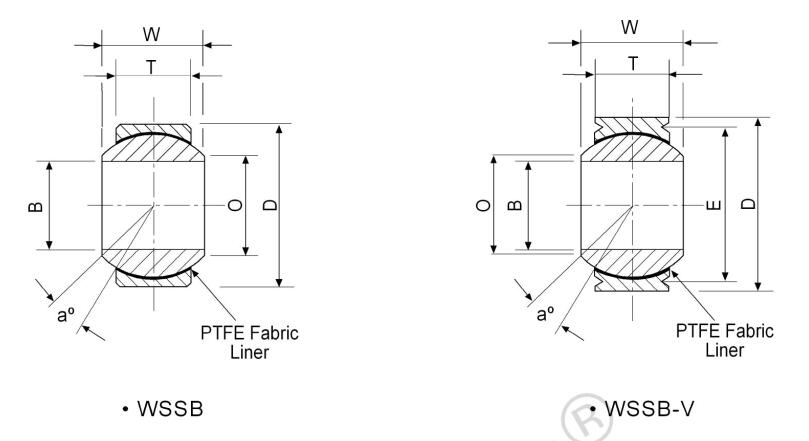

| 轴承型号 | B +.0000 -.0005 | D +.0000 -.0005 | W +.000 -.002 | T ±.005 | E +.000 -.010 | O REF | 钢球直径 | 调心角度 | 极限静态 径向载荷 (磅) | 极限静态 轴向载荷 (磅) | 动态摆 径向扭矩 (磅) | 估重 (磅) |
球孔 | 外径 | 球头宽 | 衬套宽 | "V'槽直径 | 球头端面直径 | |||||||
| WSSB3V | .1900 | .6250 | .437 | .327 | .565 | .301 | .531 | 15 | 9.000, | 1,770 | 3,770 | .031 |
| WSSB4V | .2500 | .6250 | .437 | .327 | .565 | .301 | .531 | 15 | 9,000 | 1,770 | 3,770 | .031 |
| WSSB5V | .3125 | .6875 | .437 | .317 | .627 | .401 | .593 | 14 | 9,400 | 1,640 | 4.650 | .035 |
| WSSB6V | .3750 | .8125 | .500 | .406 | .714 | .471 | .687 | 8 | 13,700 | 2,630 | 6,390 | .060 |
| WSSB7V | .4375 | .9375 | .562 | .442 | .839 | .542 | .781 | 10 | 20.700 | 3,650 | 9,390 | .080 |
| WSSB8V | .5000 | 1.0000 | .625 | .505 | .902 | .612 | .875 | 9 | 27.500 | 4,970 | 12,150 | .100 |
| WSSB10V | .6250 | 1.1875 | .750 | .567 | 1.089 | .752 | 1.062 | 12 | 39,000 | 6,130 | 16,700 | .160 |
| WSSB12V | .7500 | 1.3750 | .875 | .630 | 1.253 | .892 | 1.250 | 13 | 52,300 | 7,730 | 22,100 | .240 |
| WSSB14V | .8750 | 1.6250 | .875 | .755 | 1.503 | 1.061 | 1.375 | 6 | 67,300 | 10,800 | 28,200 | .350 |
| WSSB16V | 1.0000 | 2.1250 | 1.375 | 1.005 | 2.003 | 1.275 | 1.875 | 12 | 137,000 | 19,300 | 53,700 | .970 |
说明：
根据客户需求，该系列可供52100热处理，表面镀硬铬的钢球
为区别此需求，使用型号WSBT(3-16)或WSBT(3-16)V替代上表型号
| 轴承型号 | B +.0000 -.0005 | D +.0000 -.0005 | W +.000 -.002 | T ±.005 | E +.000 -.010 | O REF | 钢球直径 | 调心角度 | 极限静态 径向载荷 (磅) | 极限静态 轴向载荷 (磅) | 动态摆动 径向扭矩 (磅) | 估重 (磅) |
球孔 | 外径 | 球头宽 | 衬套宽 | "V'槽直径 | 球头端面直径 | |||||||
| WSSB3 | .1900 | .6250 | .437 | .327 | .565 | .301 | .531 | 15 | 9.000, | 1,770 | 3,770 | .031 |
| WSSB4 | .2500 | .6250 | .437 | .327 | .565 | .301 | .531 | 15 | 9,000 | 1,770 | 3,770 | .031 |
| WSSB5 | .3125 | .6875 | .437 | .317 | .627 | .401 | .593 | 14 | 9,400 | 1,640 | 4.650 | .035 |
| WSSB6 | .3750 | .8125 | .500 | .406 | .714 | .471 | .687 | 8 | 13,700 | 2,630 | 6,390 | .060 |
| WSSB7 | .4375 | .9375 | .562 | .442 | .839 | .542 | .781 | 10 | 20.700 | 3,650 | 9,390 | .080 |
| WSSB8 | .5000 | 1.0000 | .625 | .505 | .902 | .612 | .875 | 9 | 27.500 | 4,970 | 12,150 | .100 |
| WSSB10 | .6250 | 1.1875 | .750 | .567 | 1.089 | .752 | 1.062 | 12 | 39,000 | 6,130 | 16,700 | .160 |
| WSSB12 | .7500 | 1.3750 | .875 | .630 | 1.253 | .892 | 1.250 | 13 | 52,300 | 7,730 | 22,100 | .240 |
| WSSB14 | .8750 | 1.6250 | .875 | .755 | 1.503 | 1.061 | 1.375 | 6 | 67,300 | 10,800 | 28,200 | .350 |
| WSSB16 | 1.0000 | 2.1250 | 1.375 | 1.005 | 2.003 | 1.275 | 1.875 | 12 | 137,000 | 19,300 | 53,700 | .970 |
